ST E1R

Inquiry Now +


Range30m@10%#of Lines144
Maximum range75mAccuracy±3cm
FOV (HxV)120°x90°Blind spot<0.1m
Angular resolution(HxV)AVg.0.625°x0.625°Laser safetyClass 1 Eye Safety
Frame rate (adjustable)10HzPower consumption<10W
Points per second
(single return mode)
260,000 pts/sPoints per second
(dual return mode)
520,000 pts/s
Dimensions(HxWxD)69.5x95x43mmWindow dimensions(HxWxD)35x75x7mm
Weight (without cabling)330+20gOperating voltage9-16V
Working temperature-40°C~+85°CStorage temperature-40℃C~+105°C
Time synchronization9PTPIngress protectionIP67、IP6K9K


ST E1R

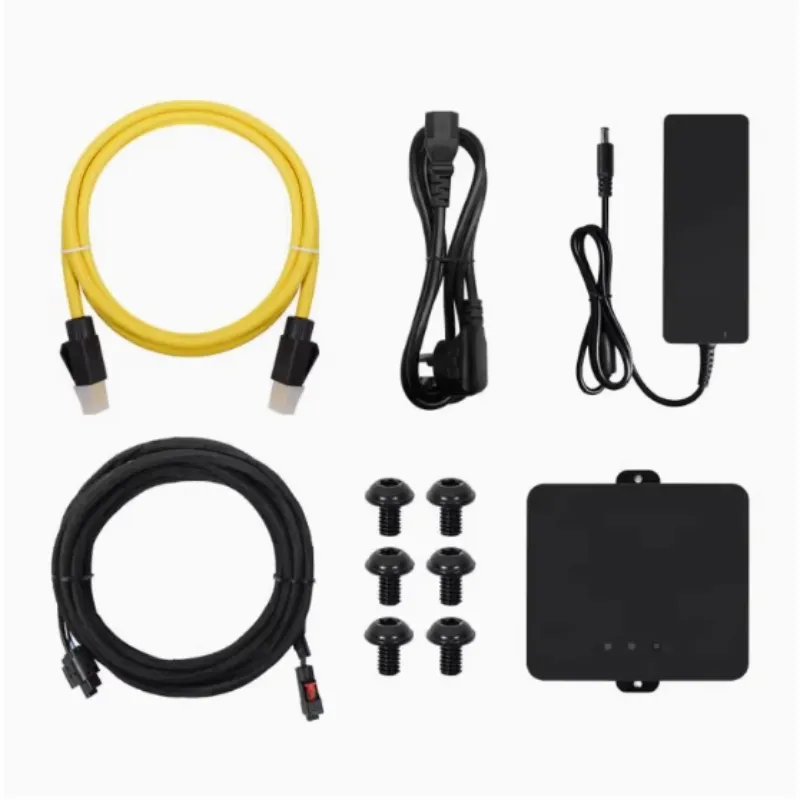

Related Accessories
