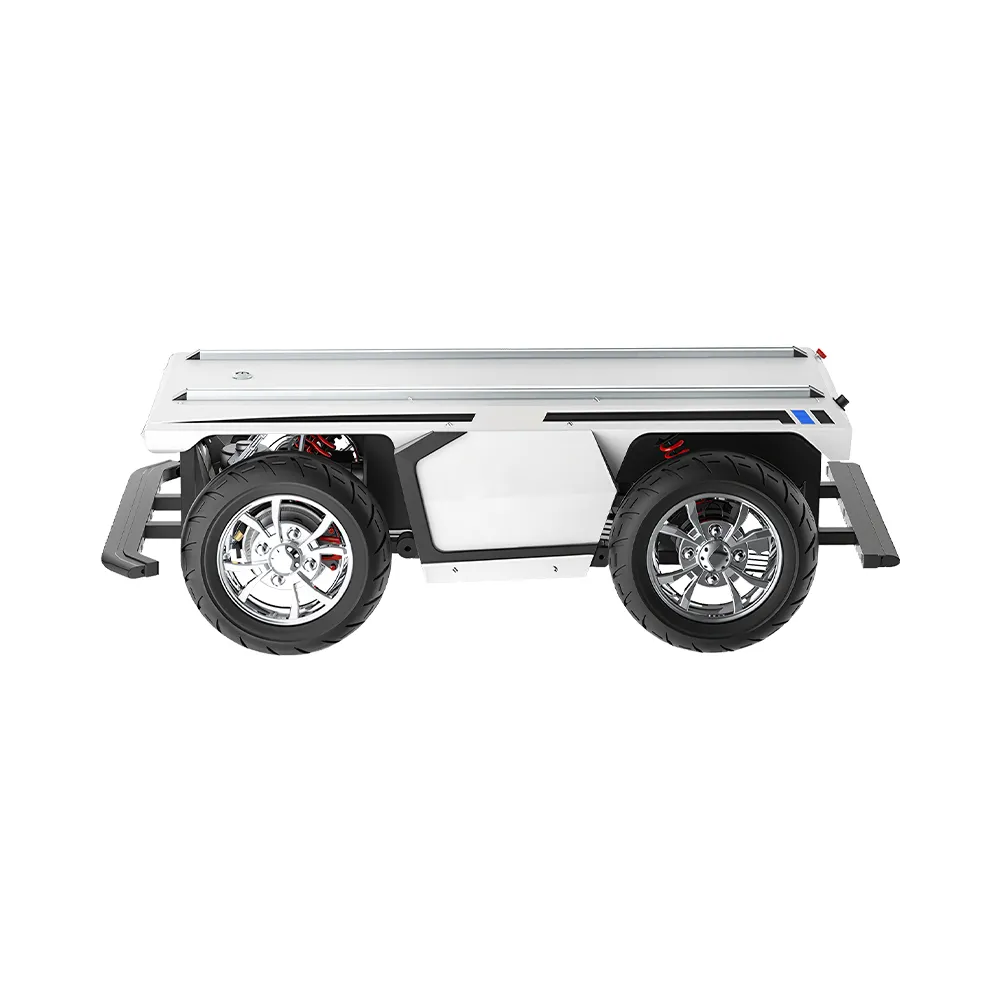

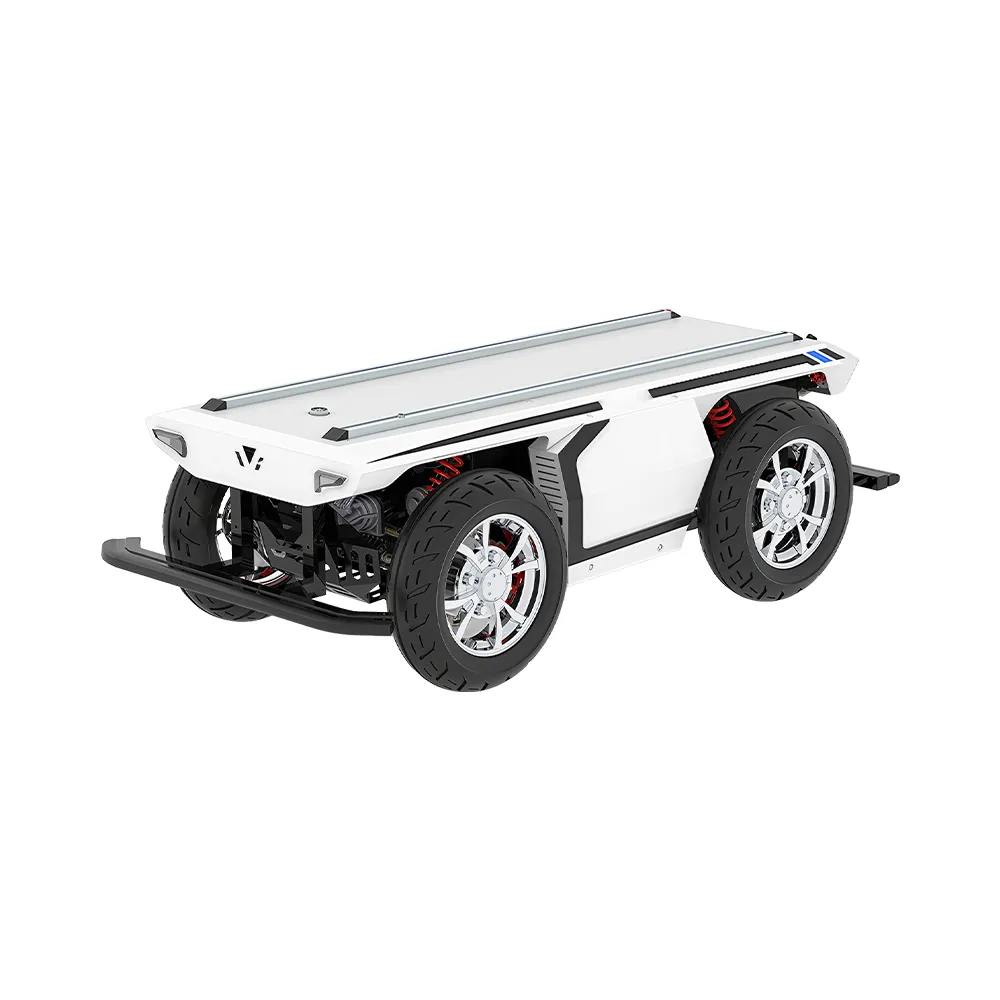

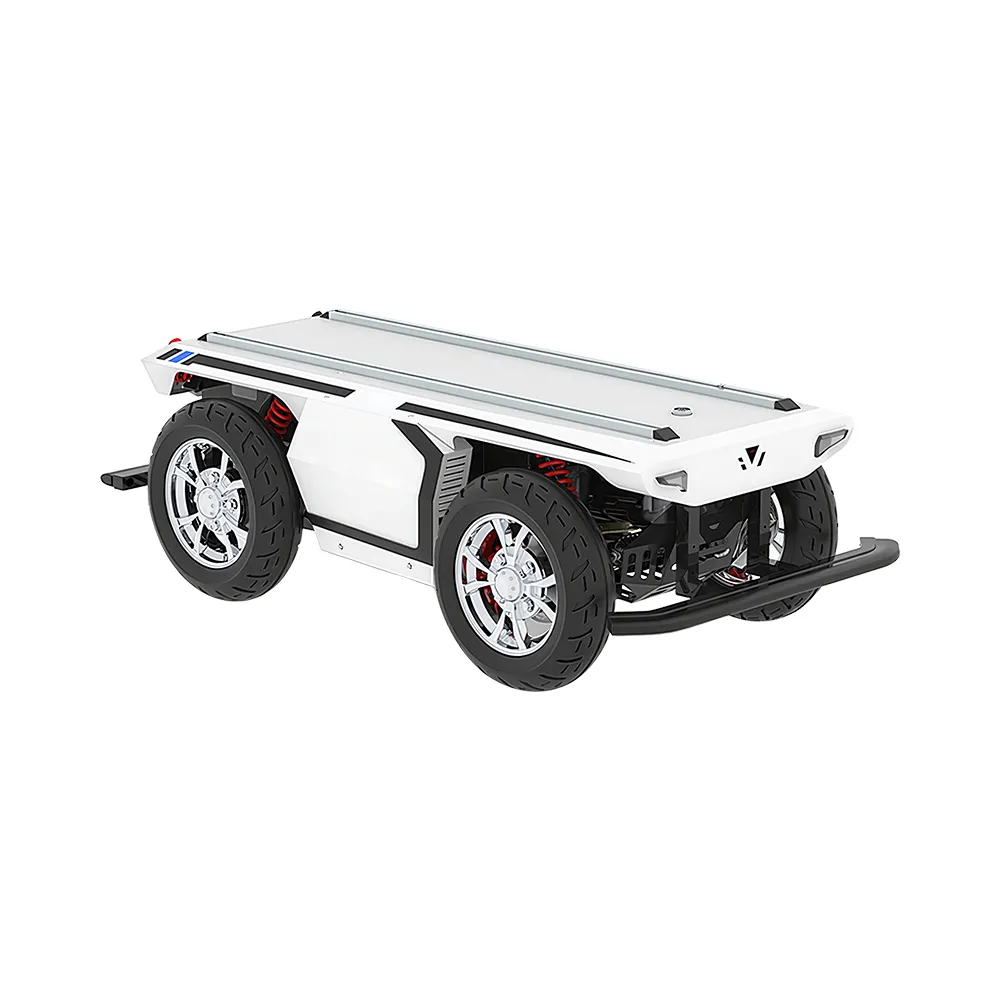

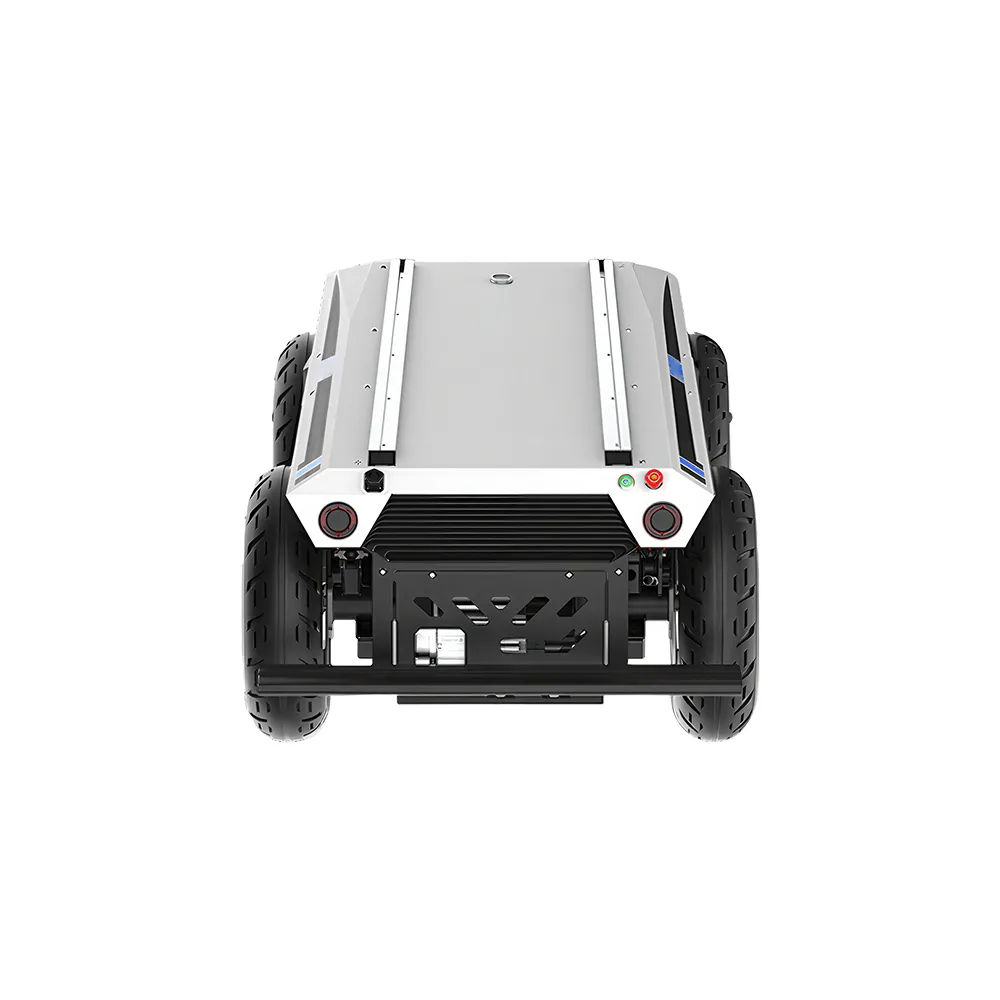

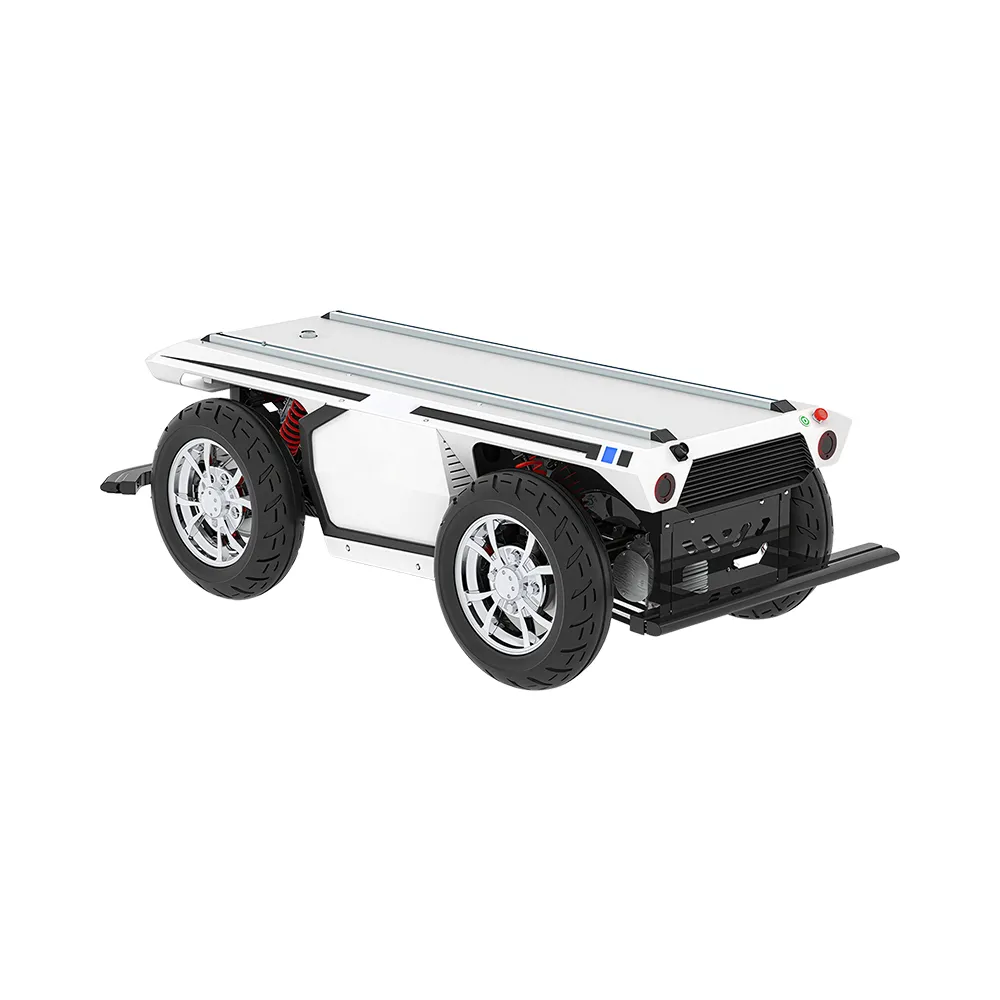

2wd Ackermann Steering Robot Chassis

The 2wd ackermann steering robot chassis is a mobile platform that employs Ackermann steering geometry for front-wheel steering while utilizing rear wheels for propulsion. Its core advantage lies in the Ackermann geometry's ability to eliminate tire skidding and lateral drag during turns, providing the robot with high-precision path-following capability. This makes it particularly suitable for indoor environments requiring ground protection or precise navigation.

Meanwhile, the rear-wheel drive layout ensures high stability during high-speed straight-line driving and delivers stronger traction when pulling heavy loads. It is widely used in logistics AGVs requiring long-distance, high-efficiency transportation, outdoor security patrol robots, and autonomous driving R&D platforms. However, unlike common differential-drive robots, the ackermann steering robot chassis exhibits non-omnidirectional movement. Its structure and control are relatively complex, and it cannot perform in-place rotation, resulting in limited maneuverability in confined spaces.

Precise maneuverability and stability

Ackermann steering geometry ensures all four wheels rotate around the same instantaneous center of rotation (ICR) during turns, virtually eliminating side slip and unnecessary tire wear. Even at higher speeds of 23 km/h, trajectory tracking remains smooth and precise. Compared to conventional differential steering chassis, this design excels in scenarios requiring extended straight-line travel and frequent U-turns—such as campus patrols, outdoor food delivery, and agricultural spraying.

Exceptional load capacity and off-road capability

Rear-wheel independent drive combined with bridge suspension or independent suspension delivers outstanding traction and weight distribution. Typical models effortlessly handle 300kg payloads, 10° incline climbing, and 5cm obstacle clearance without slipping or speed loss. For logistics delivery robots, hotel service robots, and factory material handling robots, this translates to 20-30% greater payload capacity per trip, extended single-task range, and improved battery utilization efficiency.

Exceptional scalability and ease of secondary development

The vast majority of 2wd ackermann steering robot chassis feature fully open-source designs, providing complete ROS1/ROS2 functionality packages along with STM32 or ESP32 low-level code examples. Customers can easily add Lidia, depth cameras, robotic arms, displays, 5G modules, and more.

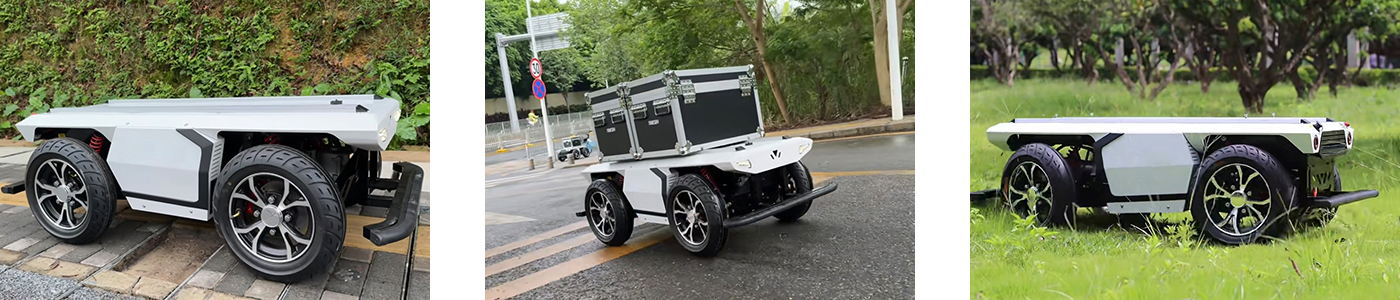

The 2wd ackermann steering robot chassis is ideally suited for operation in outdoor, open, and level structured or semi-structured environments, such as campus logistics distribution, large-scale industrial site material transport, low-speed municipal road operations (sweeping/patrolling), and precision agricultural tasks (straight-line spraying/seeding). Its core strengths lie in stability during medium-to-high-speed operation (>5 km/h), energy efficiency for extended range, and precise path tracking on wide-radius turns. However, this chassis performs poorly in narrow indoor spaces (e.g., warehouse aisleways, hospital corridors), rugged terrain (mud/sand/gravel roads), densely obstructed areas, or tasks requiring on-the-spot turning/ultra-tight turning radii—due to its large turning radius, inability to turn on a dime, and susceptibility to steering wheel lockup or instability on soft/uneven surfaces. In summary: For environments dominated by flat, open roads requiring efficient long-distance travel, the ackermann steering robot chassis is the preferred choice. For narrow, rugged scenarios or situations demanding extreme agility, consider differential steering, omnidirectional wheels, or tracked chassis instead.
