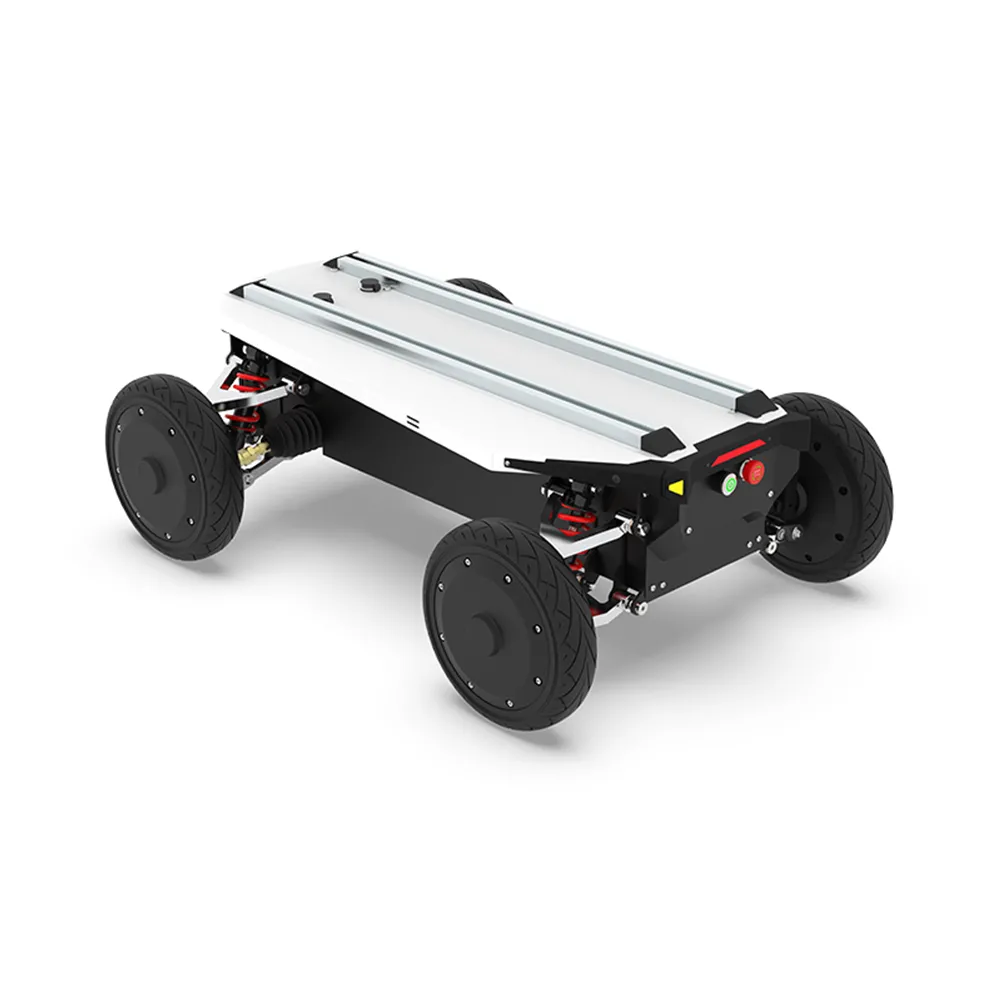

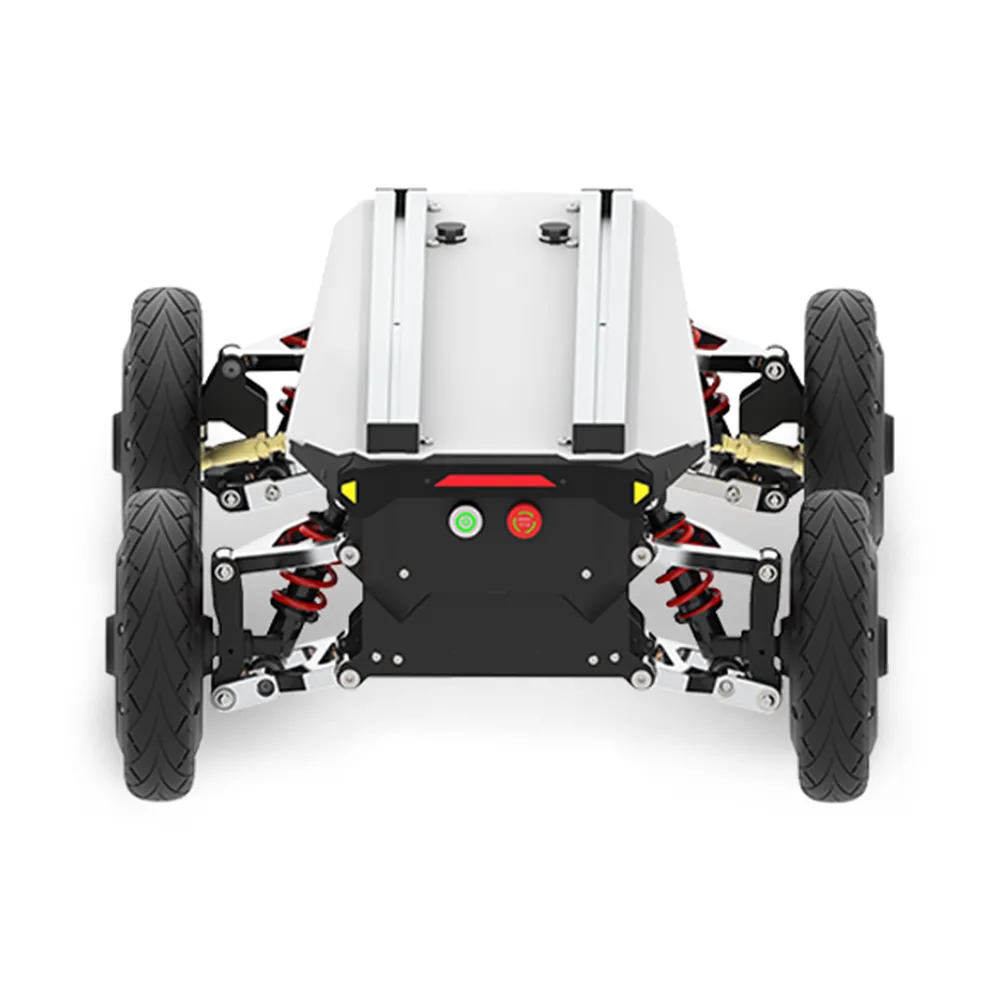

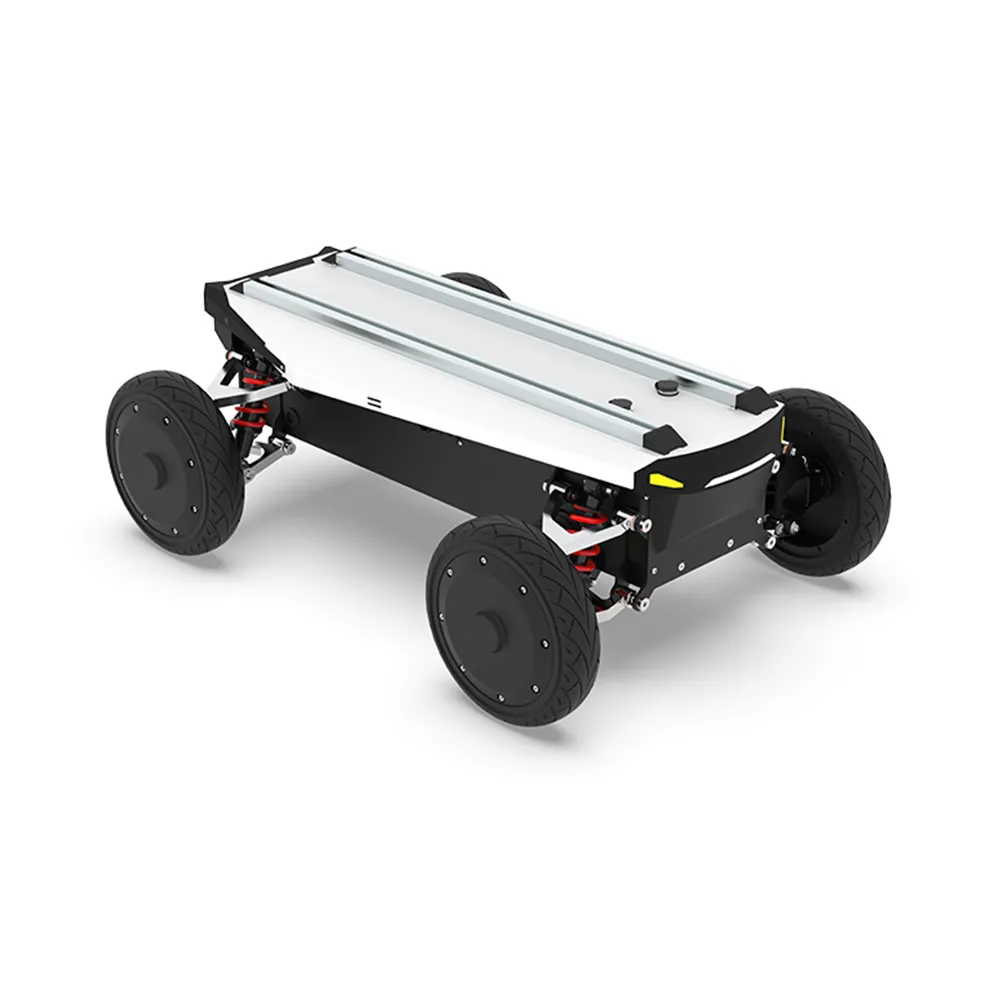

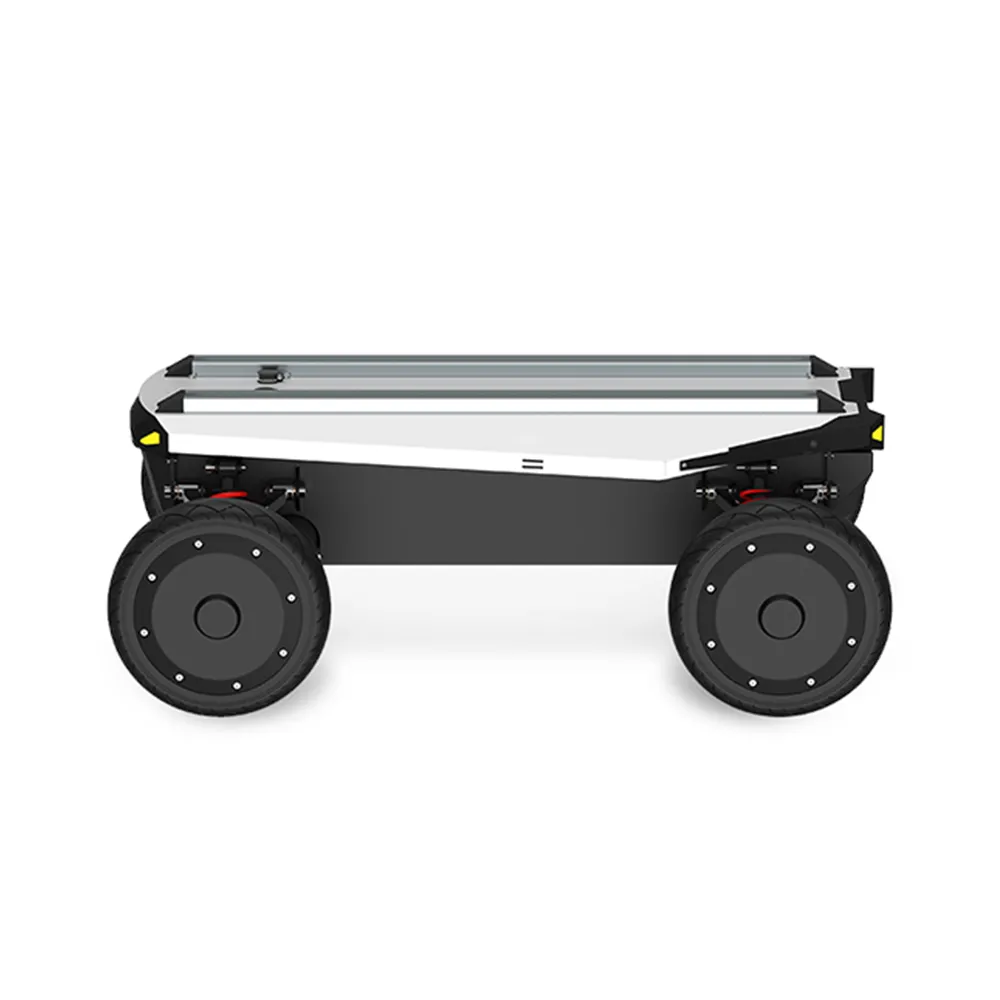

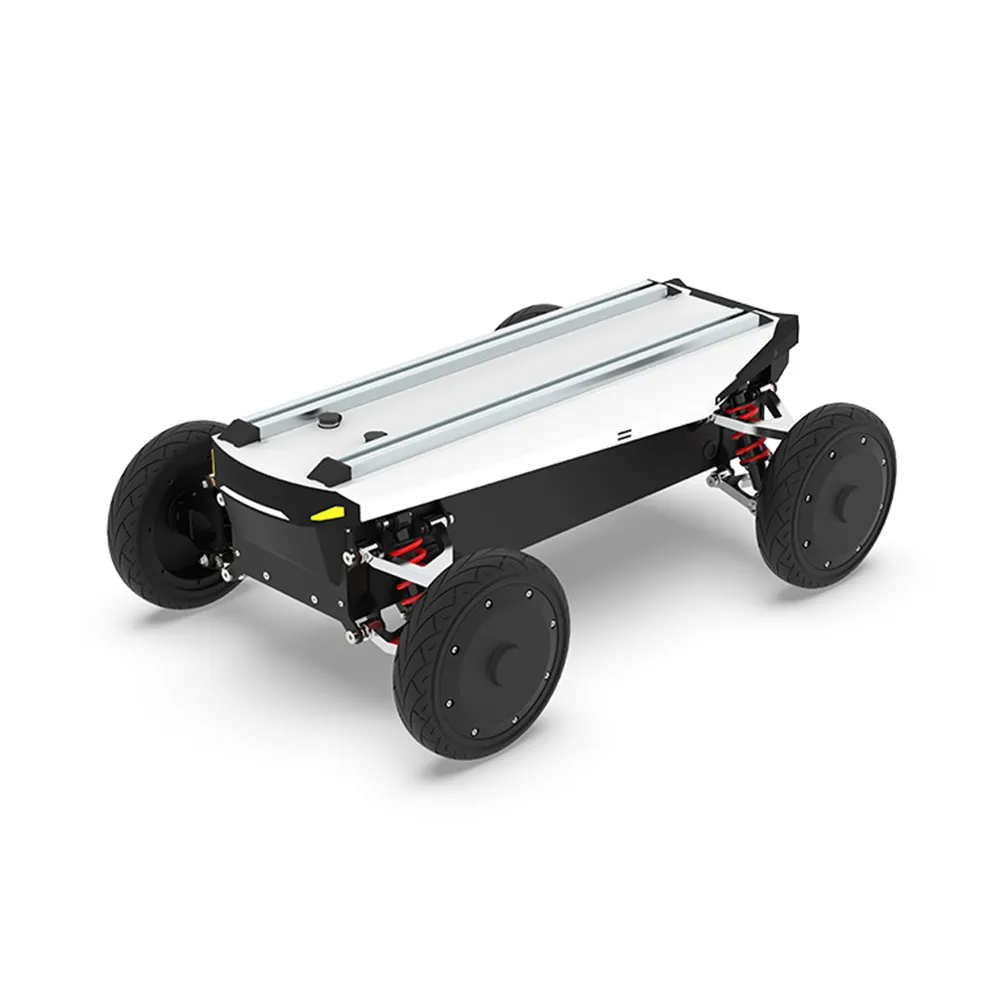

Ackermann Steering Mobile Robot Chassis

Inquiry Now +

Table Parameters

Design Dimensions900mm x 600mm x 310mm
Curb Weight55kg
Body StyleFront Ackermann steering, rear dual-hub motor differential drive
Suspension TypeDouble wishbone independent suspension
Ground Clearance93mm
Wheelbase600mm
Track Width518mm
Tire Diameter240mm
Drive Motor350W × 2
Battery48V/20Ah, 48V/40Ah
Charging Time2–3 hours
Charger48V/10A
Power Output12V/15A, 24V/15A, 48V/10A
Braking SystemMotor braking
Parking ModeMotor parking brake
Vertical Load (Horizontal Surface)50 kg
Operating Speed9.7 km/h
Wading Depth100 mm
Range60 km (unloaded)/40 km (fully loaded)
Maximum Climbing Angle20° (unloaded)/10° (fully loaded)
Crossing Width160 mm (unloaded)/140 mm (fully loaded)
Obstacle Clearance Height50 mm (unloaded)/50 mm (fully loaded)
Protection RatingIP44
Communication MethodsCAN 2.0B
Operating Temperature-20°C to 50°C
Optional ConfigurationsCommercial Navigation Kit/Open-Source Kit/Automatic Charging Station/LiDAR
Support ServicesStandard SDK interfaces / STP diagrams for chassis hardware customization / Chassis ROS packages / Open-source navigation protocols / One-on-one technical support
Configuration DetailsAs components and features support modular upgrades, if there are any discrepancies between the website specifications and the actual product, the latest actual product specifications shall prevail.
