Compact Front-Wheel Drive Robot Platform

Inquiry Now +

Parameter Table

TypeCompact front-wheel drive robot platform
● Standard configuration ○ Optional configuration - Not available
Chassis SpecificationsEnergy type

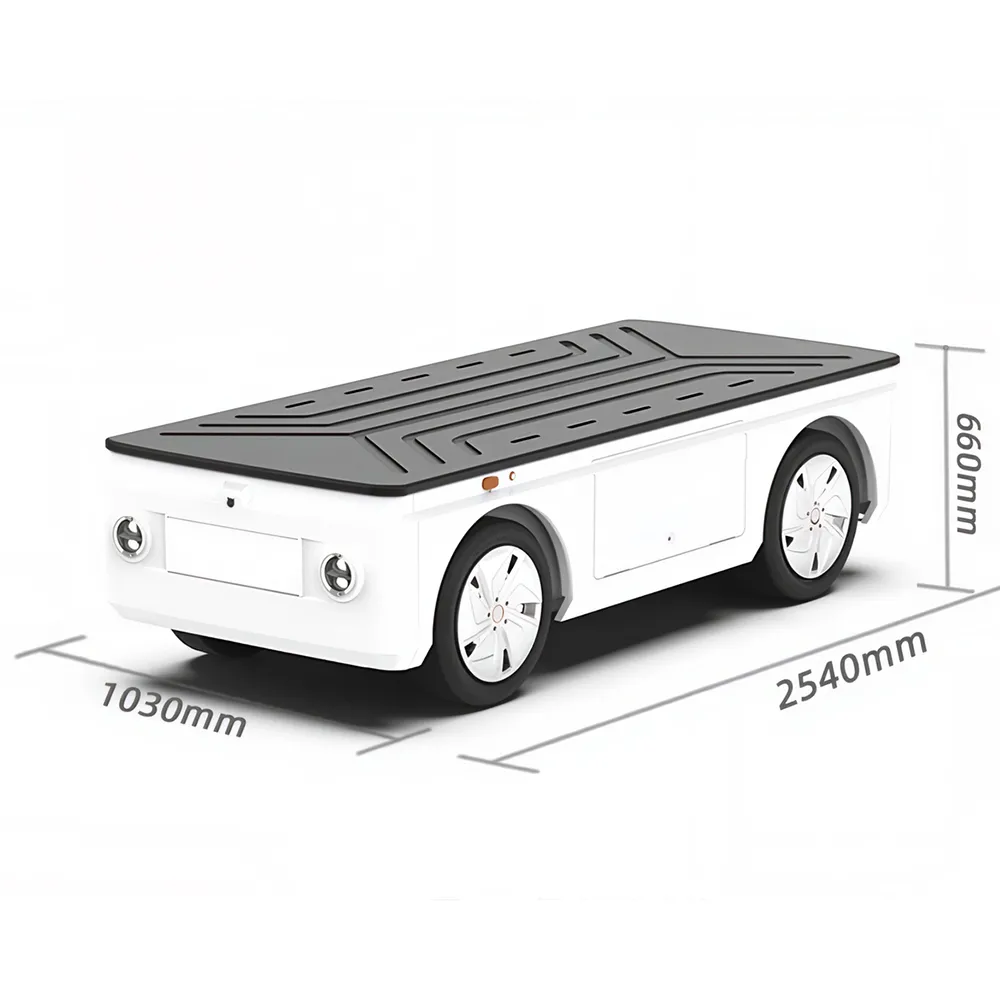

Length*Width*Height(mm)2540*1005*670
Minimum ground clearance(mm)120
Minimum turning radius(m)3
Maximum fording depth(mm)200
Maximum obstacle clearance height(mm)120
Maximum climbing angle(%)20
Maximum speed(km/h)40
Curb weight(kg)415
Maximum payload(kg)685
Battery and ChargingBattery capacity (kWh)11.5
Range on empty (km)100
Slow charging time (hours)2.5
Wireless Drive ParametersDrive typeRear-wheel drive (RWD)
Motor rated/peak power (kW)5/10
Motor rated/peak torque (Nm)14/65
Smart Hardware FeaturesOTA remote updates
Backend data monitoring system
Remote start/stop
Tire pressure monitoring
Four-wheel speed detection
Hill start assist/hill descent control
Low speed alert
Emergency stop button-
Independent front/rear touch bar emergency stop
Remote control
