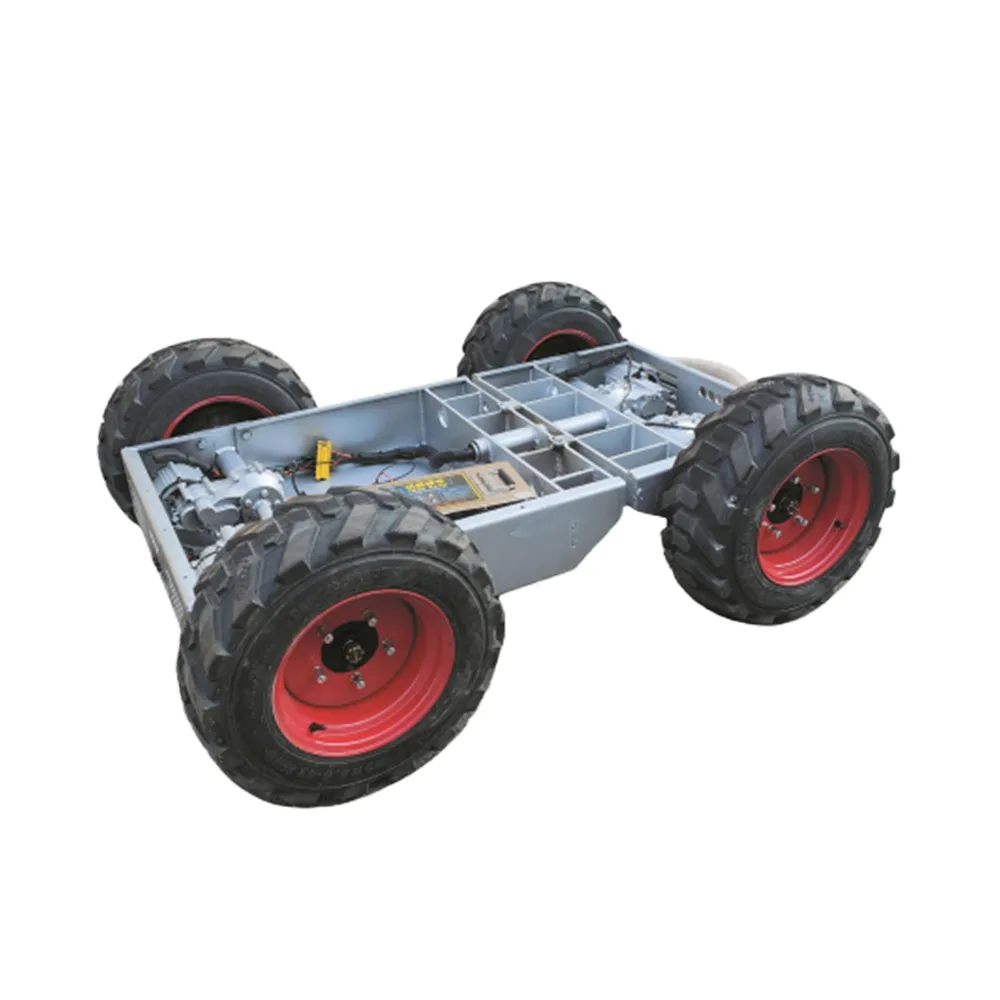

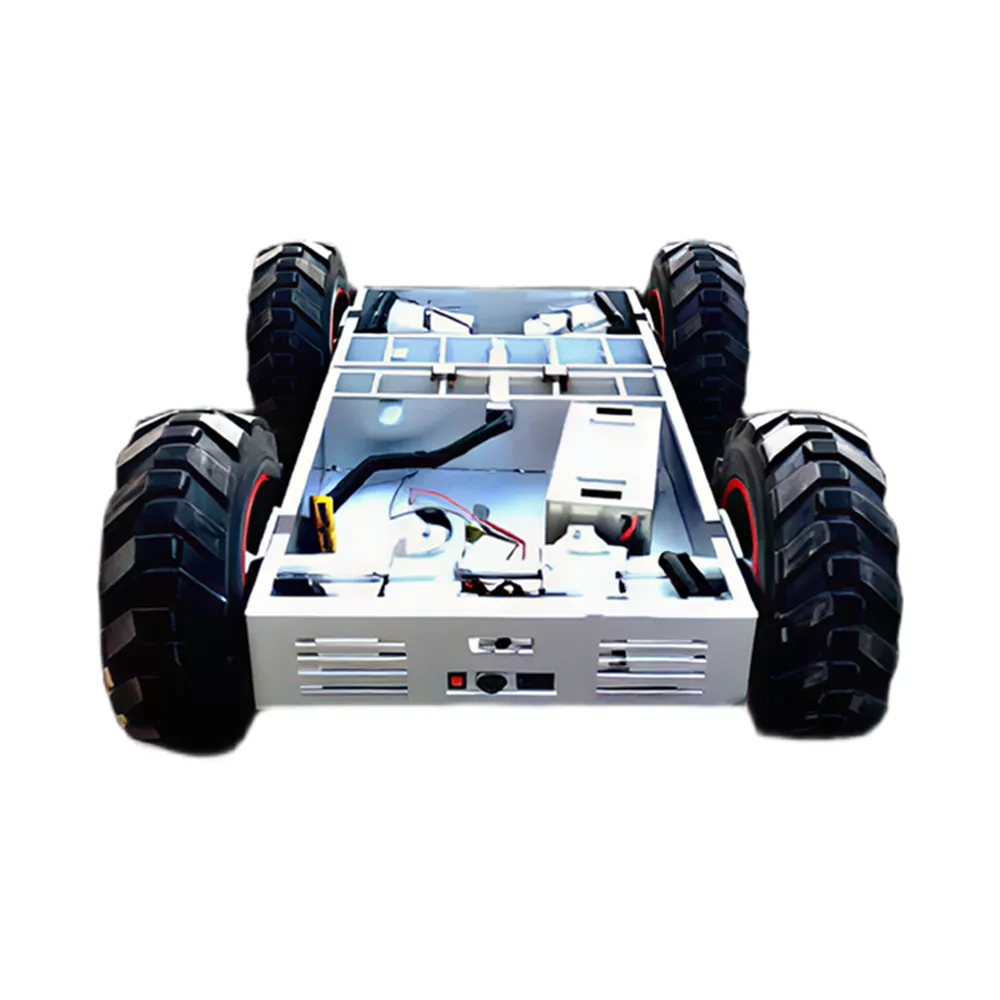

4 Wheel Differential Steering Drive Robot Chassis

This 4 wheel differential steering drive robot chassis employs four independent motors to drive the front and rear wheels, forming an electronic differential steering mechanism. Each wheel's speed and direction can be controlled in real-time via a remote controller, enabling agile and flexible movement—including powerful acceleration, hill-climbing capability, and 360° on-the-spot turns. It can also operate autonomously via sensors (such as IMU gyroscopes, ultrasonic sensors, or cameras), supporting path planning, obstacle avoidance, and SLAM (Simultaneous Localization and Mapping) functions. This further enhances its adaptability and intelligence in complex environments. This system offers greater power and maneuverability than traditional two-wheel differential chassis, making it suitable for DIY projects and AGV applications.

Table parameters

This differential steering drive robot chassis employs four independent motors (two front and two rear, forming front and rear drive axles), with each wheel driven by its own motor rather than relying on a mechanical differential. The core mechanism involves an electronic control unit (ECU or microcontroller) that adjusts the speed and direction of each motor in real time to achieve differential steering:

Forward/Reverse: All four wheels rotate at the same speed and in the same direction, delivering powerful traction.

Steering: Electronically controlled differential algorithm adjusts speed differences between inner and outer wheels. For example, during turns, the inner wheel rotates slower while the outer wheel rotates faster. In extreme cases, diagonal wheels can rotate in opposite directions to achieve zero-radius turns—enabling 360° pivoting on the spot.

Remote Control: Commands are typically sent via wireless remote controller. The receiver connects to the controller for real-time response.

Autonomous Operation Extension: Beyond remote control mode, sensors (such as IMU gyroscopes for attitude detection, ultrasonic or LiDAR for distance measurement, and cameras for visual recognition) can be integrated to enable autonomous navigation. Software frameworks (such as ROS) process sensor data, utilizing SLAM (Simultaneous Localization and Mapping) algorithms to construct maps, plan paths, and dynamically adjust motor speeds for obstacle avoidance or trajectory following. This ensures stable operation in complex environments, including indoor settings and uneven outdoor terrain.

Powerful Performance: Four independent motors deliver higher total output power and optimized torque distribution, ensuring robust acceleration, hill-climbing capability, and load-carrying capacity. On slopes, muddy terrain, or uneven surfaces, four-wheel drive evenly distributes power to reduce slippage risks and enhance overall stability. Unlike two-wheel systems, it minimizes rollover hazards and power deficiencies.

Agile maneuverability: The electronic differential mechanism enables real-time adjustment of each wheel's speed and direction, supporting zero-radius turns (such as 360° on-the-spot pivots) for enhanced flexibility in narrow spaces or complex environments.

Easy to expand: The drive robot chassis design is relatively simple (no complex drive shafts or gearboxes), lightweight, and easy to carry and assemble. Additionally, it facilitates sensor integration (such as IMUs, cameras, or LiDAR), enabling upgrades from remote control mode to autonomous navigation. This supports path planning, obstacle avoidance, and SLAM capabilities, enhancing overall intelligence.

High control precision and rapid response: Achieves precise power distribution through microcontrollers and software algorithms (such as PID or vector control), with low latency, making it suitable for real-time remote control or programmed operation.

Suitable Environments

Indoor flat environments: such as warehouses, workshops, etc. This chassis is ideal for material handling and automated guided vehicles (AGVs), particularly suited for indoor scenarios with high load requirements. It easily navigates low thresholds and gentle slopes, providing stable four-point support to minimize tilting.

Outdoor environments with relatively flat or mildly rugged terrain: including concrete surfaces, grassy areas, parks, or orchards. The differential steering drive robot chassis's four-wheel drive and electronic differential mechanism enhance traction and slip resistance, making it suitable for rainy conditions or low-grade slopes.

Complex outdoor environments: such as rugged terrain, snow-covered areas, or flood zones. Capable of navigating obstacles and extreme weather conditions, delivering robust off-road performance and zero-radius turning. Ideal for exploration or rescue missions.
