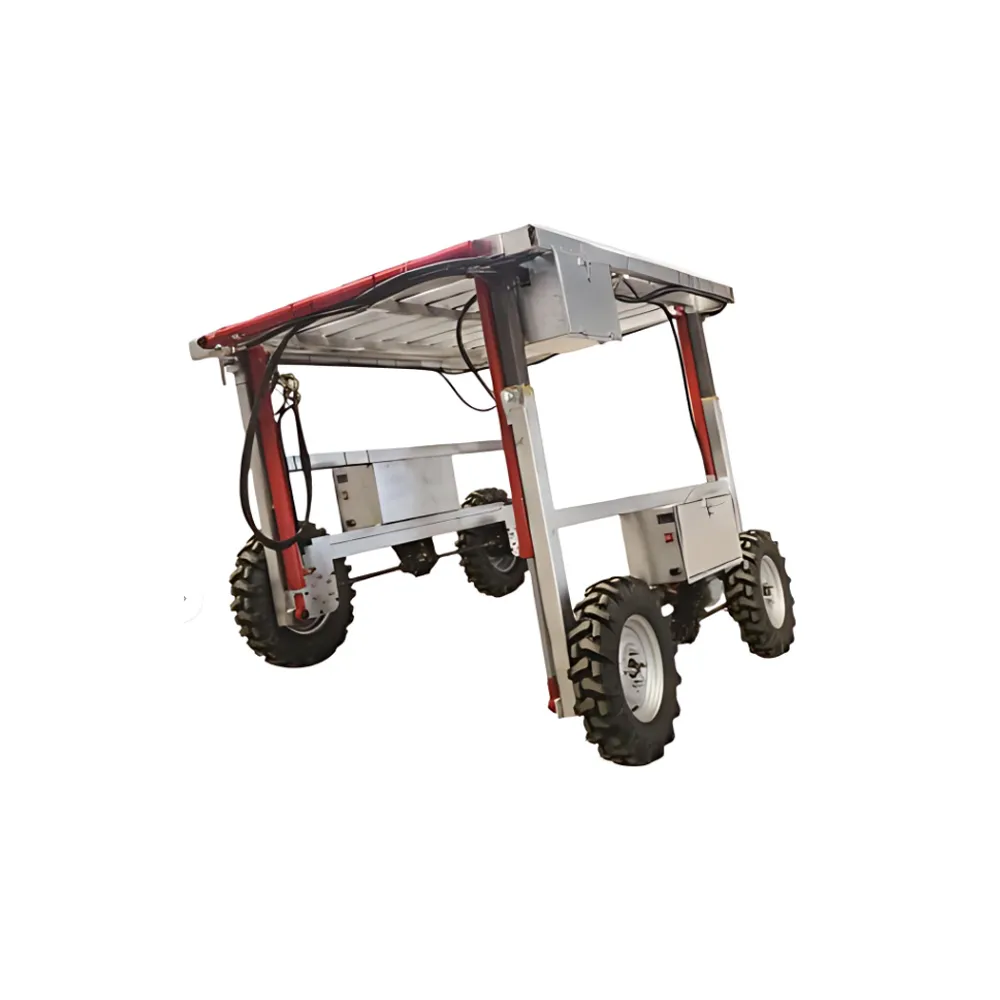

Pesticide Spraying Robot Chassis

Inquiry Now +

Table Parameters
Dimensions (L x W x H)1690 mm × 1200–2000 mm × 1040–1540 mm
ApplicationsPaved surfaces, dirt roads, farmland, and forest terrain
Drive TypeFour-wheel drive with differential
Gross Vehicle Weight360 kg
Rated Payload1000 kg
Wheel Diameter400 mm
Motor Power800 W × 2, brushless DC motors
Motor ControllerDedicated controllers × 2
Braking SystemElectromagnetic braking
Remote Control Range200 m, wireless
BatteryLithium iron phosphate 60 V 30 Ah
Speed0–12 km/h
Gradeability20°
Optional Features
Remote control500m
Light2 LEDs
GPS positioningThe 4G vehicle tracker supports real-time monitoring of vehicle location via a mobile app, as well as features such as lithium battery level monitoring and remote power cutoff.
Visual System"5.5-inch remote control, receiver, 3-lens camera (2 units), network switch (1 unit)."
"7-inch remote control, receiver, 3-lens camera (2 units), network switch (1 unit)."
"10-inch remote control, receiver, 3-lens camera (2 units), network switch (1 unit)."
7-inch remote control, receiver, 360-degree panoramic host + four HD cameras, video switching control panel, panoramic stitching service
10-inch remote control, receiver, 360-degree panoramic host + four HD cameras, video switching control panel, panoramic stitching service
Autonomous drivingAutomatic Tracking
RTK
Indoor LiDAR
Outdoor LiDAR
