Four-Turn Four-Wheel Drive Chassis

Home - EV - Parts - Robot Chassis - Four-Turn Four-Wheel Drive Chassis - 4 Wheel Robot Platform For Logistics Robots

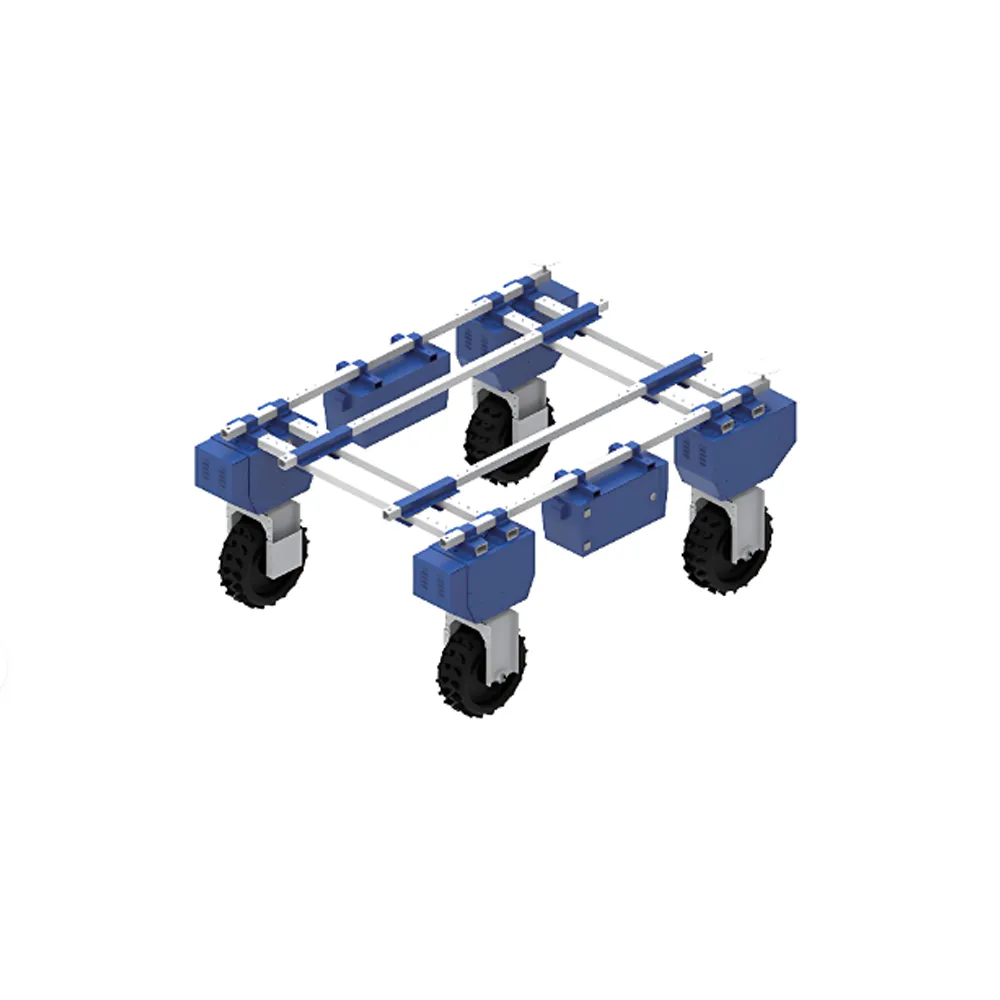

4 Wheel Robot Platform For Logistics Robots

Inquiry Now +

Table Parameters
Dimensions (L x W x H)1900mm × 1450mm × 960mm
ApplicationsDirt roads, farmland, forest land (spraying, fertilizing, weeding, transportation)
Ground Clearance900mm
Drive TypeFour-wheel steering, four-wheel drive
Vehicle Weight320 kg
Rated Load Capacity300 kg
Wheel Diameter510 mm
Braking SystemElectromagnetic brake
Remote Control Range50 m, wireless
BatteryLithium iron phosphate 48V 30Ah
Speed0–6 km/h
Gradeability15° (fully loaded)
Obstacle Clearance150 mm
WheelbaseAdjustable from 850–1350 mm
Track WidthAdjustable from 900–1200 mm
Protection RatingIP54
Optional features
NavigationBeidou
SecurityCollision Prevention and Edge Detection
OperationControl Panel
OtherLifting and Suspension
