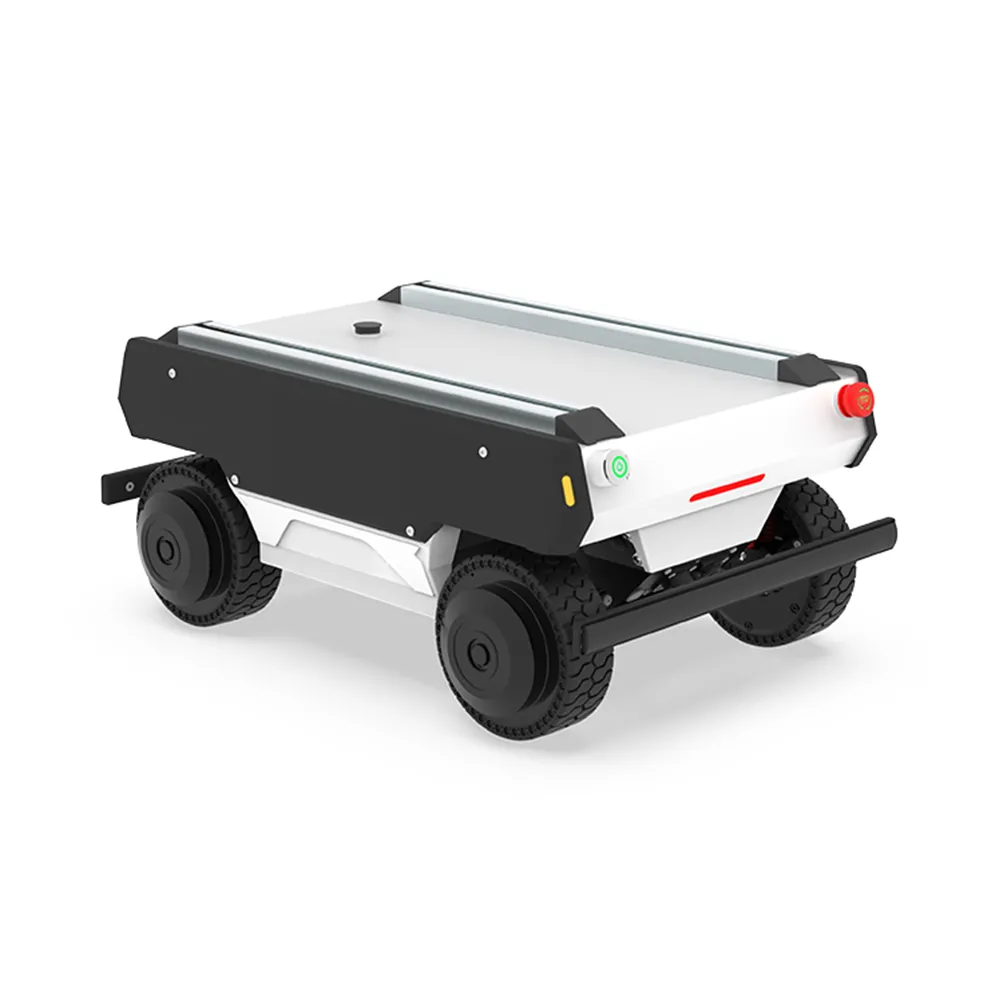

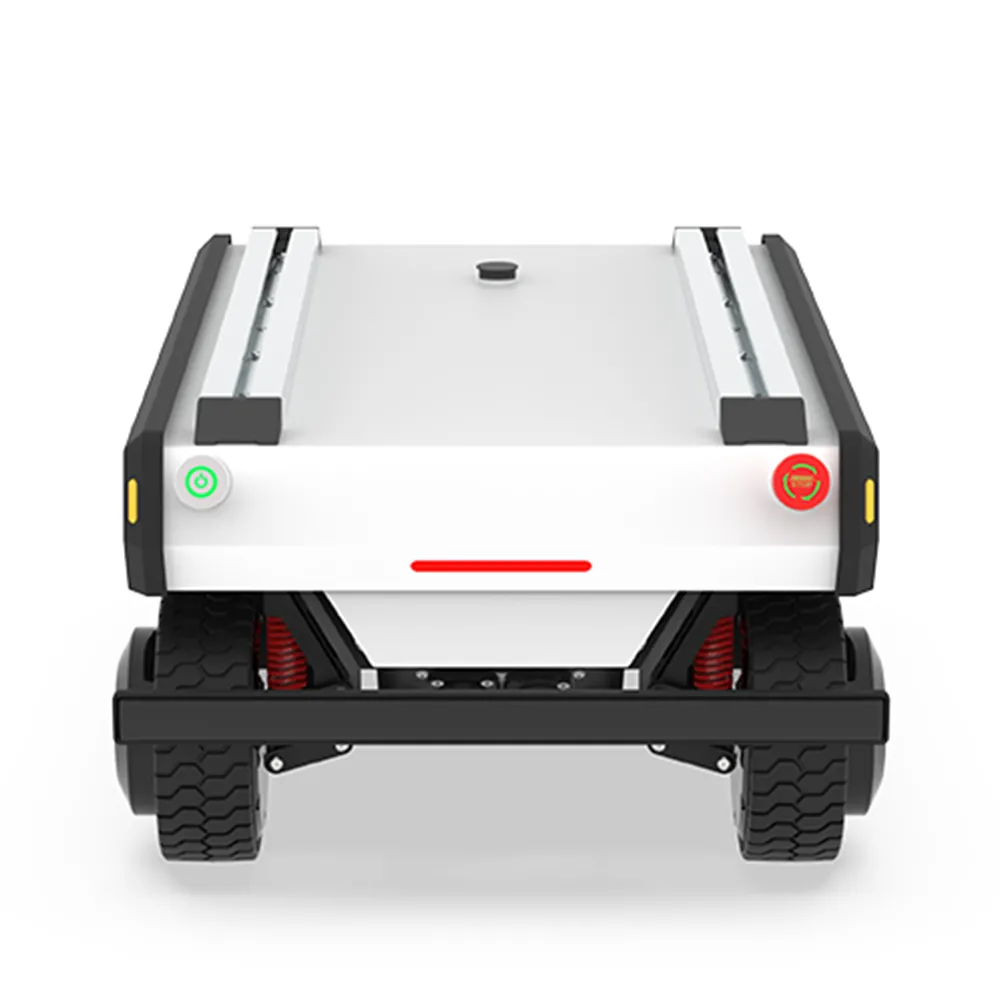

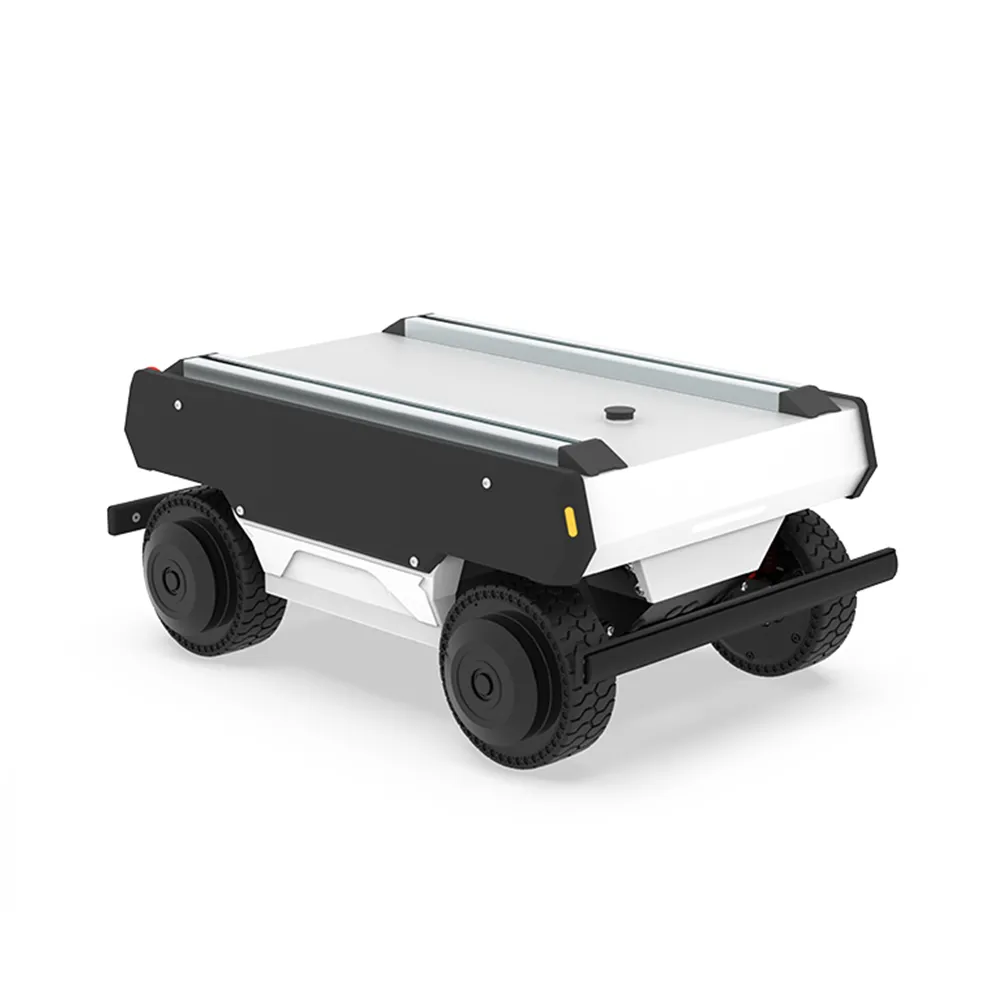

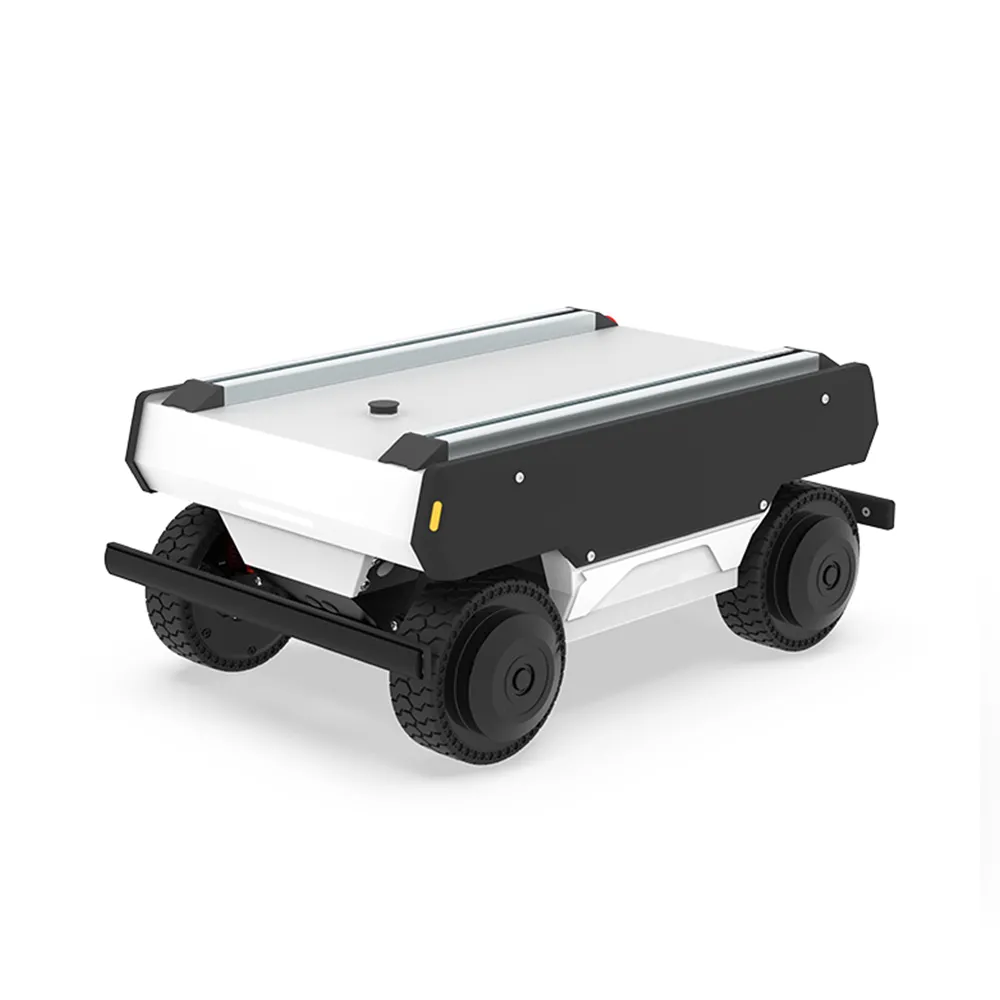

Four-Turn Four-Wheel Drive Chassis

Home - EV - Parts - Robot Chassis - Four-Turn Four-Wheel Drive Chassis - wheel drive robot chassis

wheel drive robot chassis

Inquiry Now +

Table Parameters

Design Dimensions565mm*380mm*255mm
Gross Vehicle Weight30kg
Body TypeFour-wheel drive
Suspension TypeDouble wishbone independent suspension
Ground ClearanceSuspension: 50 mm / Chassis: 70 mm
Wheelbase360mm
Track Width280mm
Tire Diameter140mm
Drive Motor100W*4
Battery24V/20AH
Charging Time2-3h
Charger24V/10A
Power Output12V/15A24V/10A
Braking SystemMotor Braking
Parking BrakeMotor Parking + Kinematic Attitude Parking
Vertical Load Capacity (on Level Ground)40 kg
Operating Speed5.4 km/h
Wading Depth50 mm
Range40 km (unloaded)/20 km (fully loaded)
Maximum Climbing Angle30° (unloaded)/10° (fully loaded)
Traverse Width110 mm (unloaded)/100 mm (fully loaded)
Obstacle Clearance Height40 mm (unloaded)/40 mm (fully loaded)
Protection RatingIP44
Communication MethodsCAN 2.0B
Operating Temperature-20°C to 50°C
Optional ConfigurationsCommercial Navigation Kits / Open-Source Kits / Automatic Charging Stations / LiDAR
Support ServicesStandard SDK Interfaces / STP Diagrams for Chassis Hardware Customization / Chassis ROS Packages / Open-Source Navigation Protocols / One-on-One Technical Support
Configuration DetailsAs components and features support modular upgrades, if there are any discrepancies between the website specifications and the actual product, the latest actual product configuration shall prevail.
