10 Inch Electric Geared Hub Motor Kit

Inquiry Now +

This robotic chassis drive kit is suitable for the following applications: electric patrol vehicles for industrial sites and warehouses; small electric crop protection vehicles; inspection vehicles; and autonomous food and delivery robots (for restaurants, hotels, and office buildings).

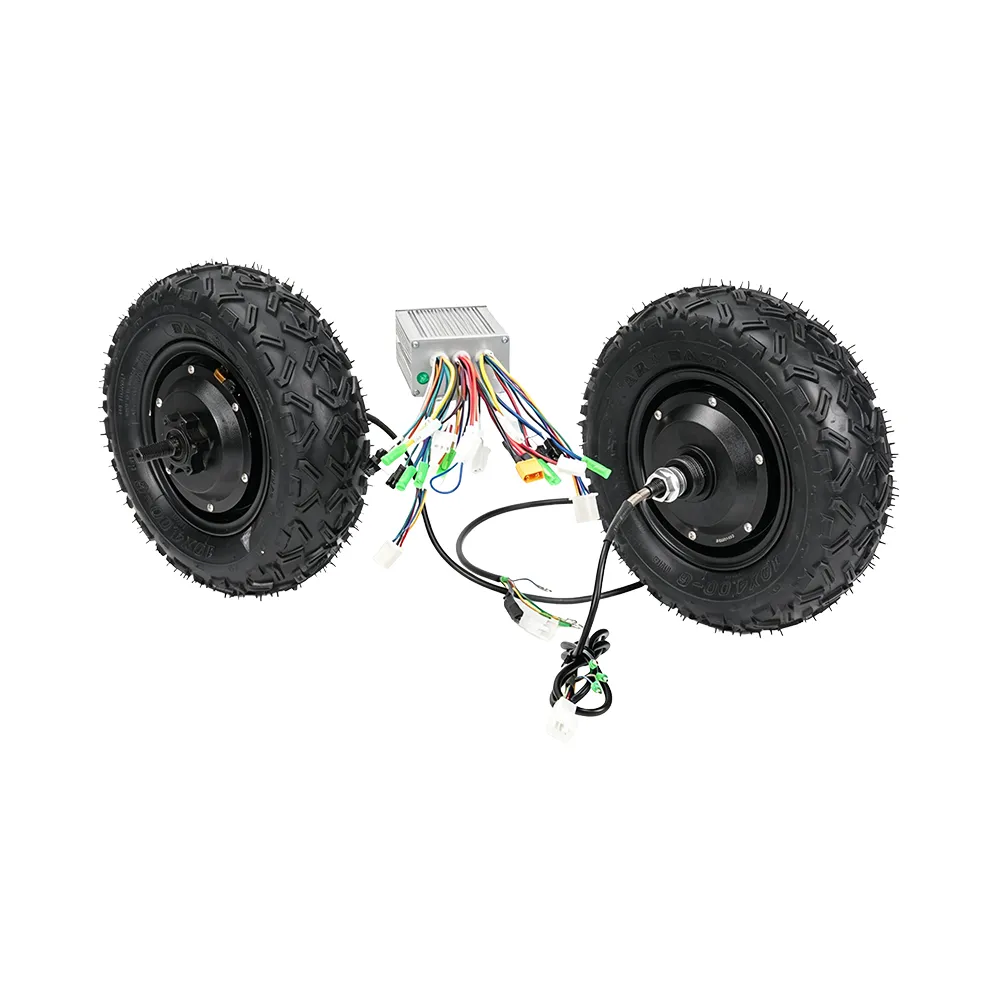

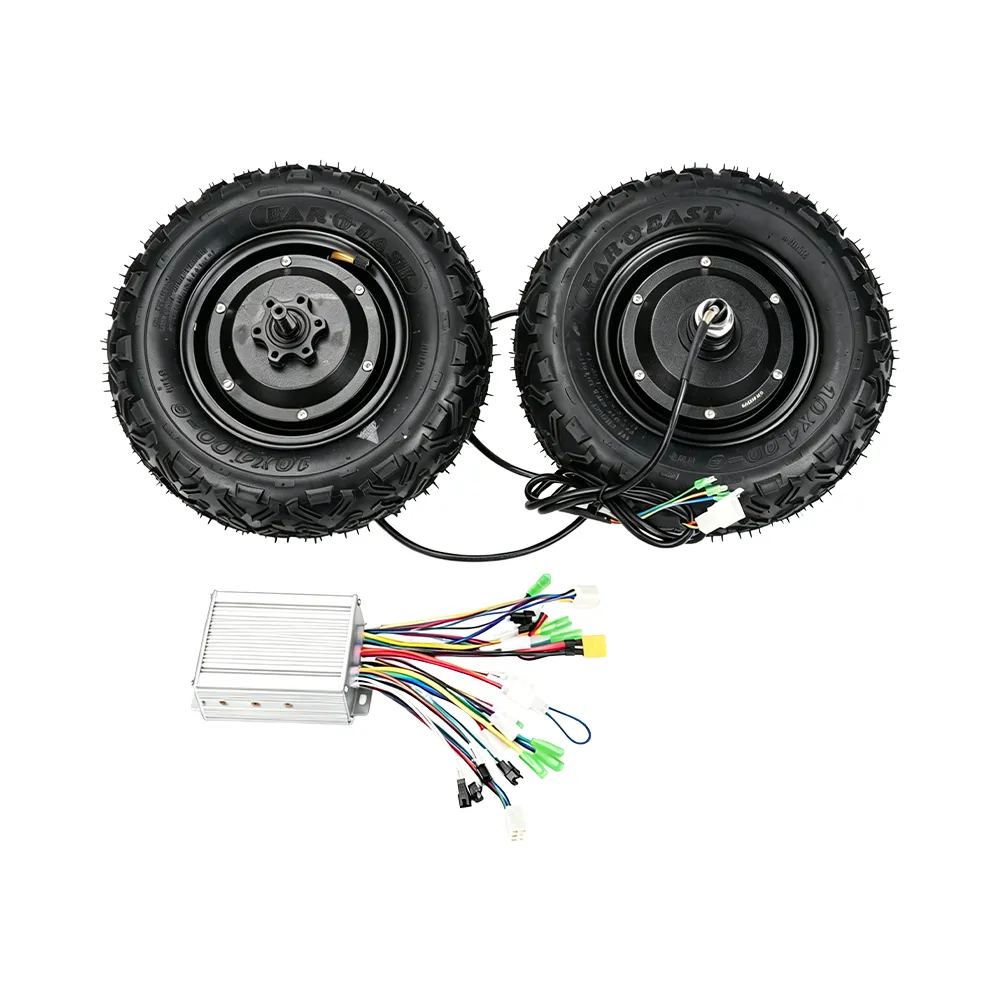

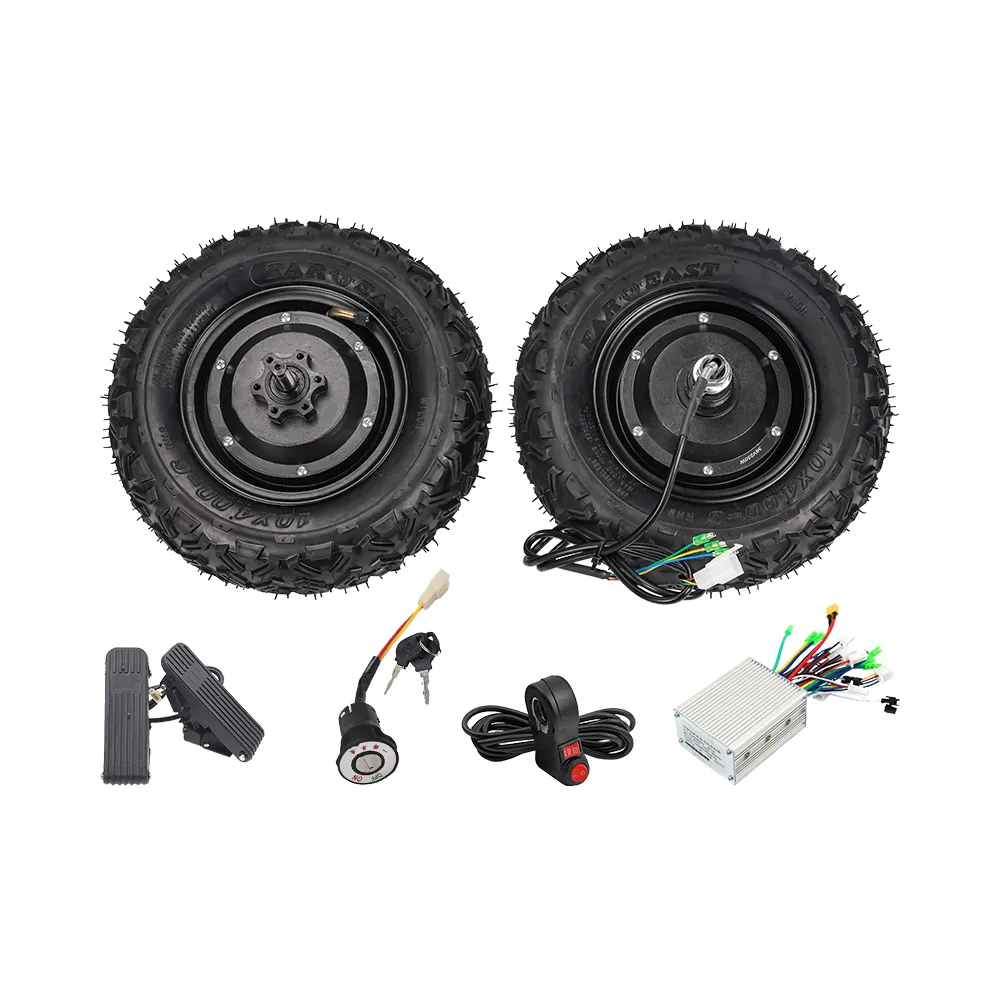

The product kit includes:

2 * 10 inch double shaft hub motor

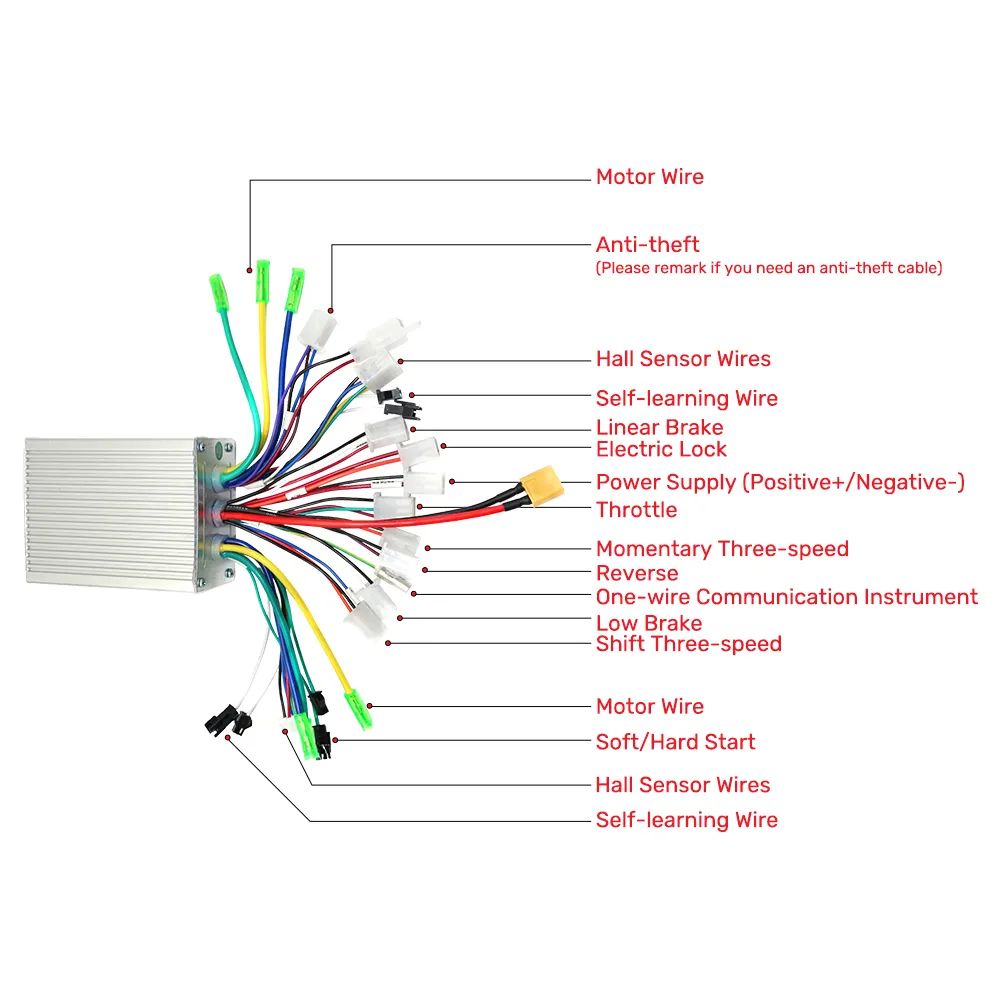

1 * Matched dual drive motor controller

1 * Foot accelerator

1 * Foot brake

1 * Reverse switch (With reverse and 3-speed function)

1 * Power Switch


Rated Voltage36VDC
Rated Current16A
Rated Speed200±5%
Rated Power500W
Rated Torque20N.m
Efficiency≥80%
No-Load Current≤0.8A
No-Load Speed (Internal Rotation)1200 ±5%
Waterproof RatingIP54
Number of Teeth / Gear Ratio1:4.3
