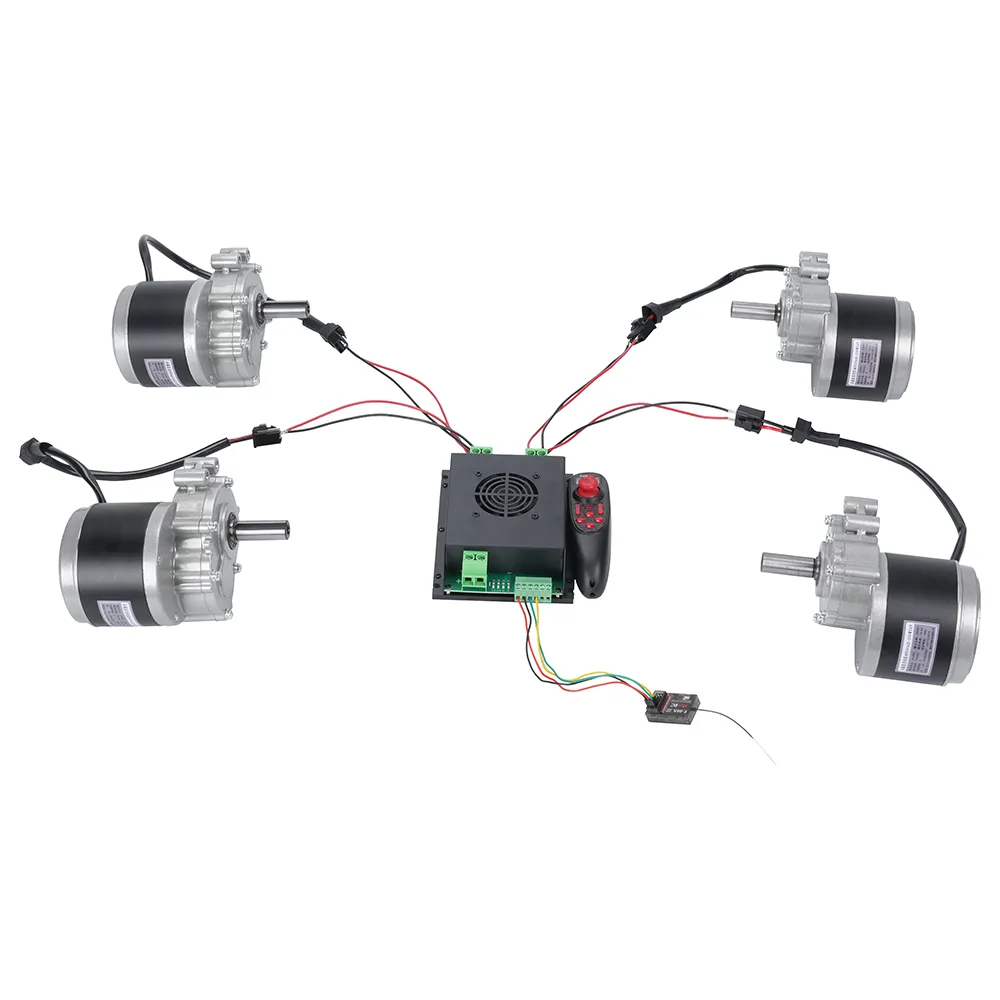

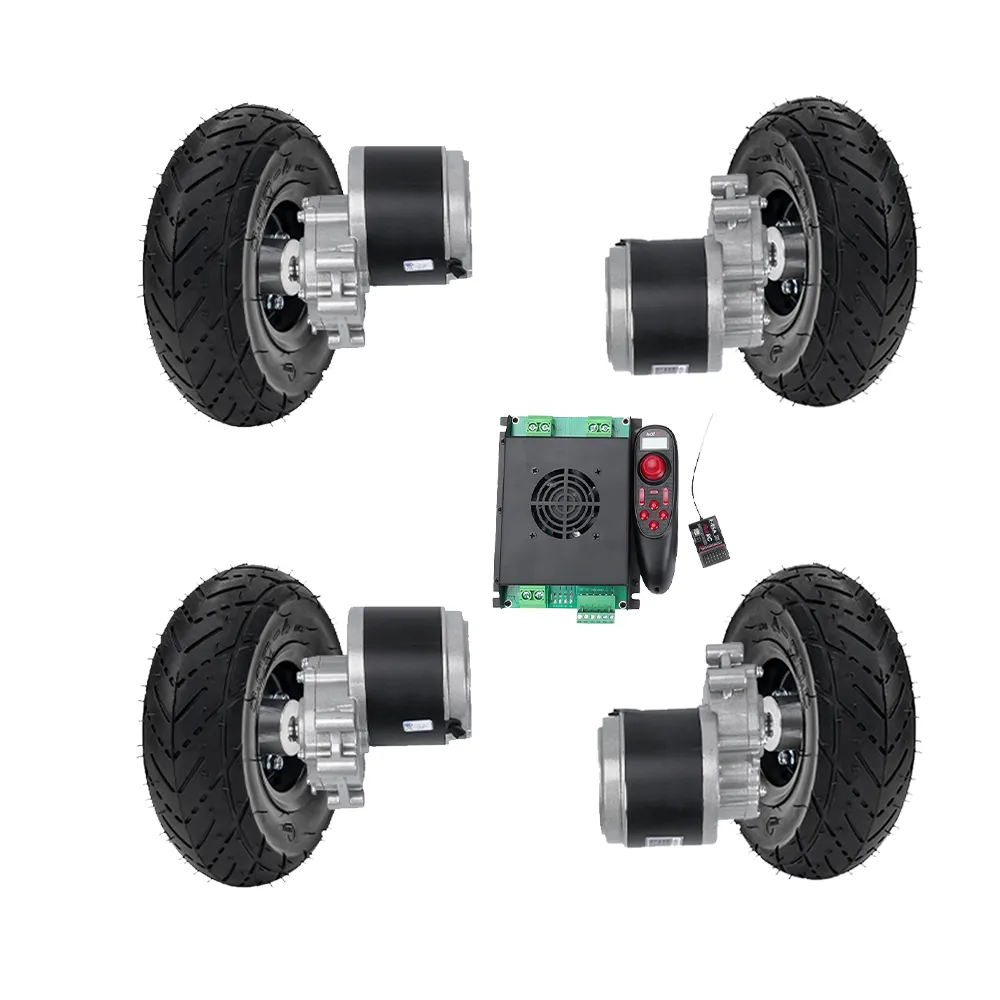

Four-Wheel Drive Brushed Motor RC Kit for AGV

Four-Wheel Drive Brushed Motor RC Kit for AGV

Inquiry Now +

Important Notes Before Ordering:

1. The Four-Wheel Drive Brushed Motor RC Kit is not only suitable for robot chassis but can also be used to modify four-wheel-drive hand carts, transforming ordinary hand carts into electric hand carts.

2. The 4WD Motor Kit includes 4 8-inch wheels. If you have other requirements, please feel free to contact us.

3. The 1000W kit includes 4 brushed motors, each with a power output of 250W;

     The 1400W kit includes 3 motors, each with a power output of 350W, offering two speed options.

4. The 4WD remote control allows you to control the motors for forward, reverse, left turn, right turn, and cruise.

5. This kit does not include a battery; you will need to purchase one separately. Both lead-acid and lithium batteries are compatible.

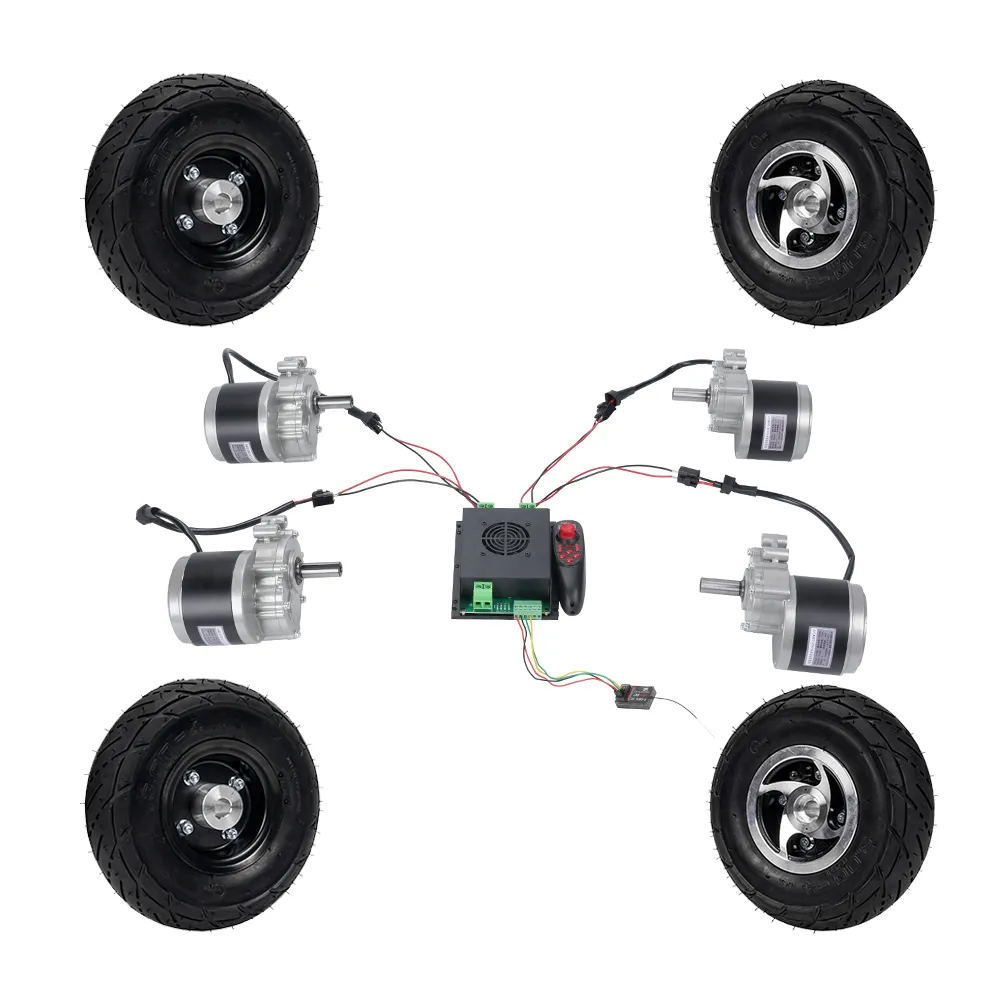

Product Kit:

1. 4 * 8 Inch Wheels

Wheel Size8 inches
Tire Width60 mm
Tire MaterialRubber
Hub MaterialAluminum Alloy, Steel

Axle Hole Diameter

15/17/19 mm

2. 4 * 24V 250W Brushed Gear Motors, please specify the required cable length when placing your order.

3. 1 * 4WD Motor Driver for 4WD Lawn Mowers

4. 1 * Remote Control(When purchasing, please specify whether you need a remote control designed for one-handed or two-handed operation.)


GearboxTwo-stage reduction
Rated Power250W
Rated VoltageDC24V
Rated Current15A
Gear Ratio1:22.5
Rated Motor Speed2500 RPM
No-Load Output Speed of Gearbox120±5 RPM
Rated Torque≥60N
Protection RatingIP44
