Relationship Between “Load Capacity” and “Obstacle-Crossing Performance” of Robot Chassis

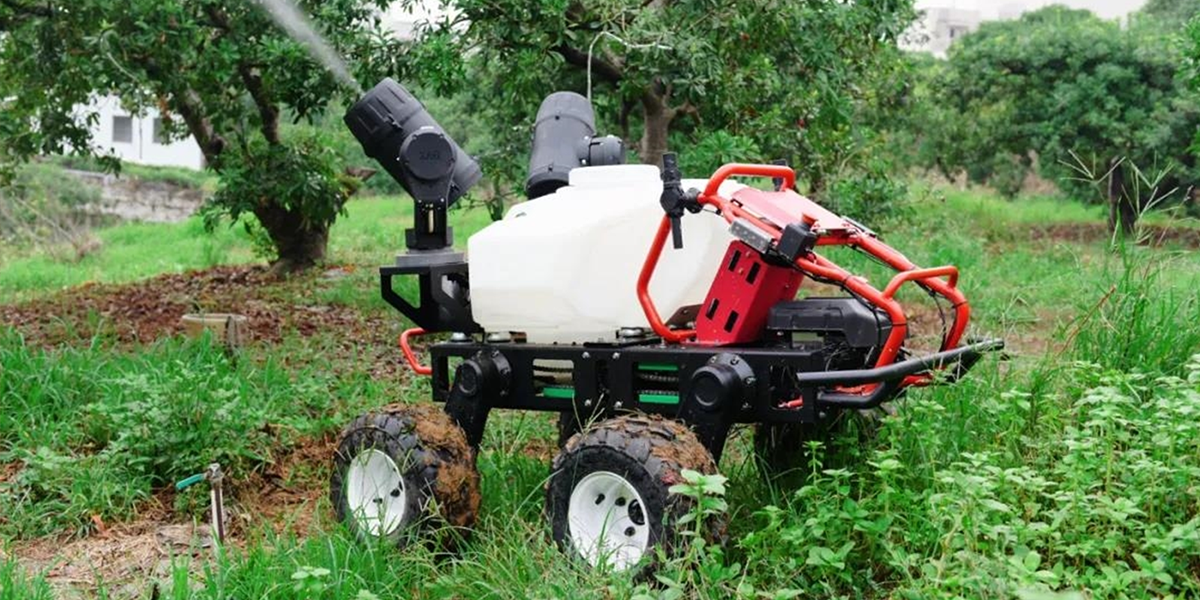

In certain specialized application scenarios (such as complex outdoor environments), mobile robots must climb steep slopes, navigate obstacles, and operate in high-resistance environments such as hillsides, grassy areas, muddy paths, and gravel roads. This places high demands on the robot’s powertrain, load-bearing capacity, and obstacle-crossing capabilities. Among these, the chassis’s load-bearing capacity and obstacle-crossing capabilities are key indicators of its suitability for field operations.

In the design of intelligent robot chassis, load-bearing capacity and obstacle-crossing capability present a classic Pareto trade-off. Given constraints on size and power, it is impossible to achieve near-optimal performance for both simultaneously. Appropriate trade-offs must be made during chassis design. Improving load-carrying capacity typically requires the chassis to have higher structural rigidity, a lower center of gravity, and stiffer support characteristics. For example, when operating on hard surfaces and unstructured terrain, this can be achieved by increasing the vehicle’s weight, enhancing structural rigidity, or optimizing the distribution of the center of gravity. Conversely, enhancing obstacle-crossing capability relies on greater ground clearance, longer suspension travel, and more compliant ground contact characteristics. For example, if a robotic chassis primarily operates on muddy or rocky terrain, it may be necessary to limit its ability to carry heavy task modules and prioritize stability during obstacle crossing.

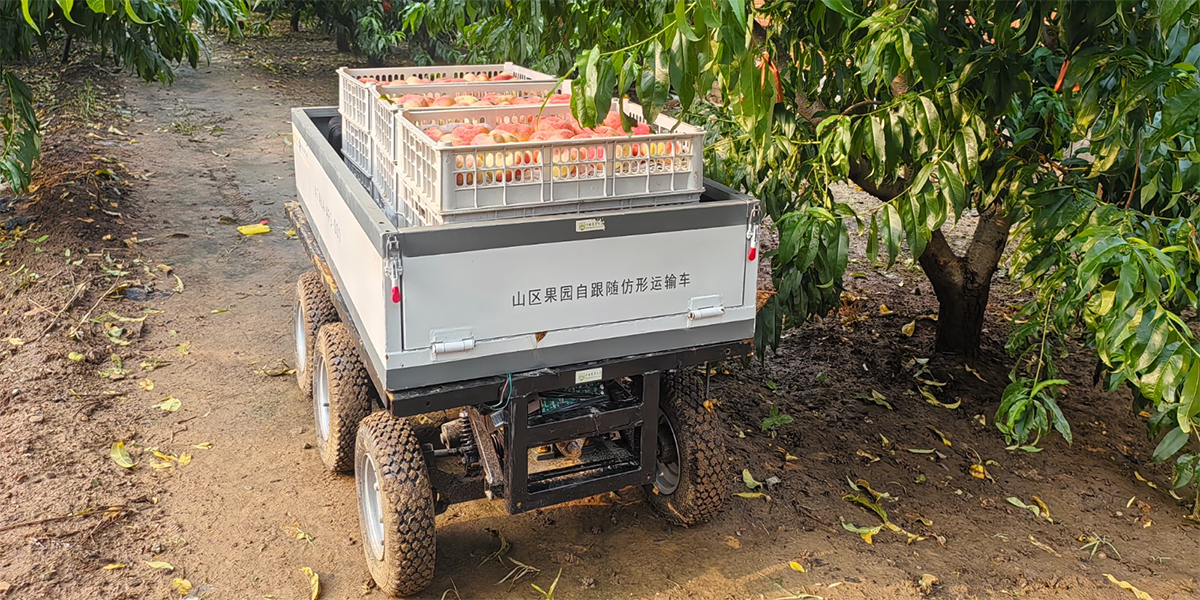

Chassis load-carrying capacity is essentially a multi-constraint optimization problem. The design and structure of a mobile robot determine the upper limit of its load-carrying capacity. The design determines how loads are transmitted and distributed within the system; a reasonable layout ensures even weight distribution, thereby preventing local overloads; Structurally, the design corresponds to the robot’s physical capacity to resist external forces; if the robot’s load exceeds the rated capacity, it may cause abnormal chassis behavior or operational instability.

Suspension and Chassis Systems

Active or semi-active suspension systems dynamically adjust the vehicle’s posture by sensing terrain changes in real time, effectively absorbing shocks and ensuring stability under heavy loads.

Semi-active suspension is a controllable suspension system that uses sensors to detect road conditions and vehicle posture, adjusting damping parameters to improve the mobile robot’s ride comfort and stability.

Active suspension dynamically and adaptively adjusts the suspension system’s stiffness and damping characteristics based on the mobile robot’s operating conditions (such as the vehicle’s motion state and road conditions), enabling the suspension system to meet the vibration damping requirements of various operating conditions.

Powertrain and Transmission System

This powertrain is equipped with high-torque hub motors or servo drives, providing the chassis with powerful instantaneous power output to ensure obstacle-crossing capability on complex terrain. Precision torque distribution technology effectively prevents slipping or rollovers through differential control and dynamic power management.

Intelligent Sensing and Control Algorithms

By integrating LiDAR, stereo vision, and an Inertial Measurement Unit (IMU), the robot can detect obstacle height, slope, and ground surface material in real time. It utilizes AI path planning algorithms to generate optimal obstacle-avoidance routes.
