Should I choose the Ackerman robot chassis or the differential robot chassis?

Looking to choose the best chassis for your mobile robot? Understand the core differences between a differential drive robot chassis and a four-wheel drive robot chassis (omnidirectional mobility chassis) in terms of structure, maneuverability, speed, and navigation accuracy. This article will help you make the decision that best suits your robot application.

In the design of mobile robots, the chassis serves as the core mobility system that determines operational performance and environmental adaptability. When engineers select chassis for logistics handling, security patrol, or specialized task robots, they often face a critical decision: Is a traditional differential drive chassis sufficient? Or is an upgrade to a four-wheel steering and four-wheel drive chassis necessary?

So, what exactly distinguishes these two robot chassis? Which one is better suited for your automation applications, such as AGVs, AMRs, or service robots? This article will conduct an in-depth comparison based on key technical specifications, structural design, and respective advantages and disadvantages.

The differential drive chassis is one of the most common and structurally simplest mobile robot configurations. It typically consists of two independent drive wheels (mounted on the same axle) and at least one or more omnidirectional support wheels/idlers.

Driving Principle: The robot achieves steering and movement by controlling the speed difference between its two drive wheels (i.e., “differential drive”). When both wheels rotate at the same speed, the robot moves straight forward or backward; when the speeds differ, the robot turns.

Primary Limitations: Strong zero-radius turning capability, but zero lateral movement ability. Requires greater rotational space to adjust direction in confined areas.

In the fields of industrial and service robotics, a four-wheel steerable chassis typically refers to a platform equipped with four independently driven wheels and independent steering capabilities (such as steering wheels) to achieve omnidirectional movement. This type of chassis generally employs four independent steerable drive units. Each of the four wheels can not only generate power independently (drive) but also change direction independently (steer).

Independent Steering Drive (Steering Wheel): Each wheel can be driven independently and can rotate its steering angle independently, including translation, rotation, diagonal movement, and complex combined motions.

Core Advantages: Featuring omnidirectional mobility, the robot can execute lateral movement, stationary translation, or travel along any vector direction without requiring body orientation adjustments. This significantly reduces inefficient turning paths and greatly optimizes operational efficiency in warehousing logistics and high-density environments.

Zero-radius turning: Capable of 360° rotation in place, enabling effortless U-turns or precise posture adjustments even in narrow passages, dead-end alleys, and densely packed intersections—spaces barely wider than the robot itself.

Free Diagonal/Lateral Movement: Translate at any angle per command. The robot can directly slide sideways into workstations without altering orientation, precisely align with shelf pickup ports, or perform parallel lateral shifts alongside production lines for material handover.

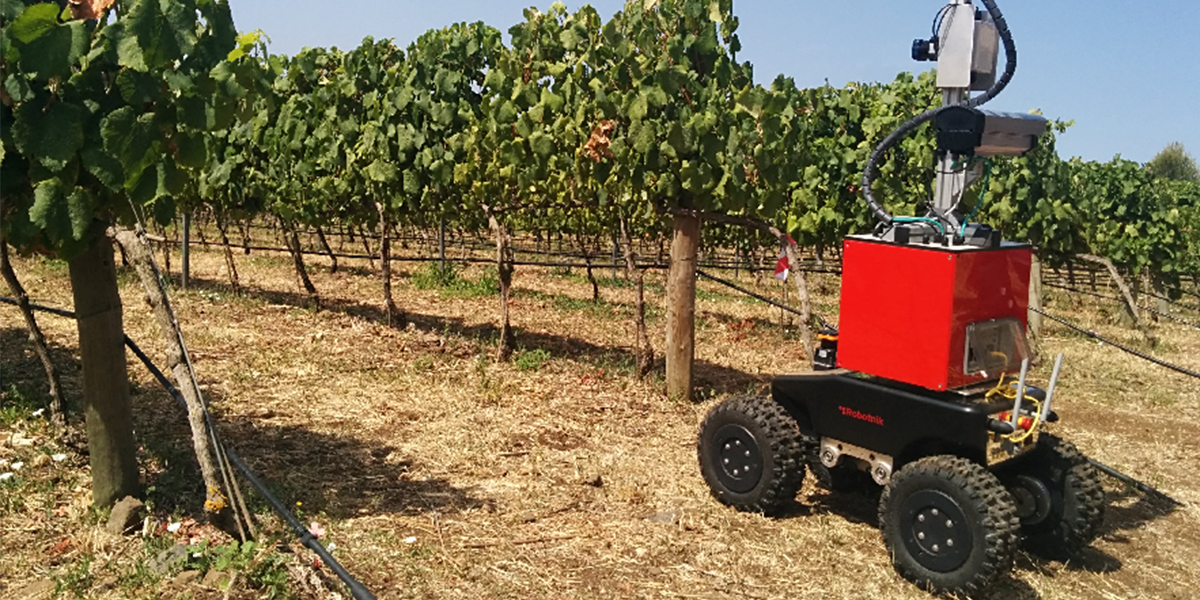

Superior Off-Road Capability: Featuring four-wheel independent drive and independent suspension, the vehicle maintains normal driving and steering through vector synthesis even if any single wheel slips or fails. This capability excels in unstructured environments such as slippery surfaces, 15°–20° inclines, gravel roads, grassy terrain, speed bumps, small steps (≤15mm), and door thresholds.

Precision Positioning Control: Millisecond-level response in power distribution, with significantly enhanced accuracy in laser SLAM mapping and navigation.

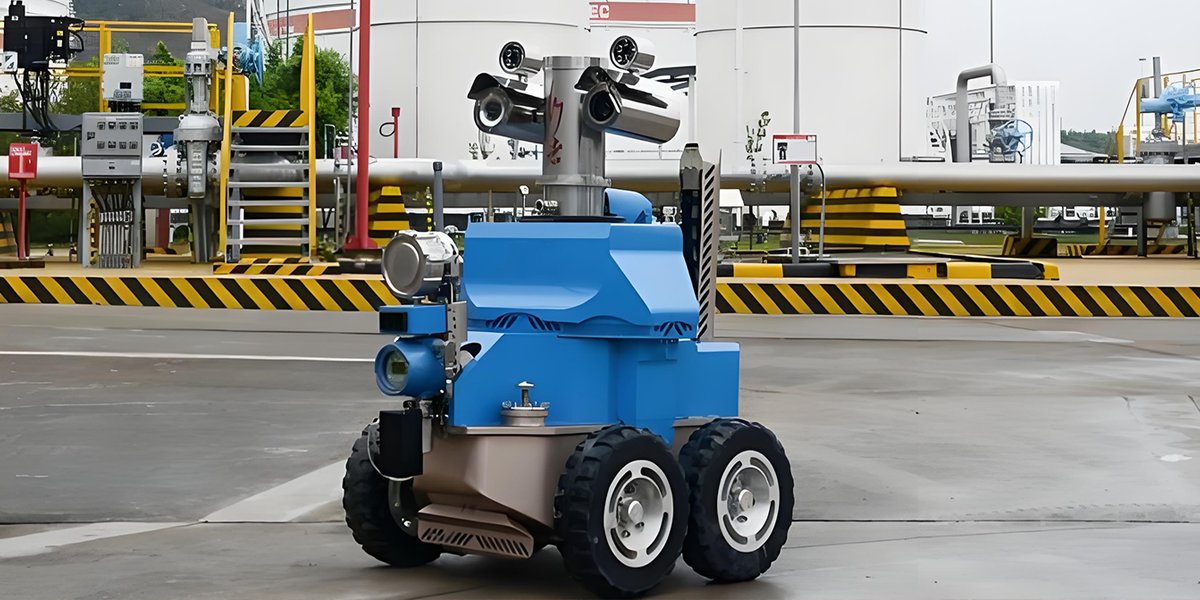

Typical Applications: High-density warehouse logistics robots, specialized power inspection robots, emergency rescue equipment, high-precision industrial AMRs, outdoor exploration robots.

How to Choose a Chassis for Your Robot? To ensure the success of your robotics project, please select based on the following scenario recommendations:

Cost-effective and easy-to-navigate scenarios favor differential drive chassis:

If your robot primarily performs straight-line or wide-angle turning movements in open environments with few obstacles, and you have a limited budget—such as for simple delivery or floor cleaning tasks—a differential drive chassis is the optimal choice.

For complex environments, high-density operations, and precise docking scenarios, choose the four-wheel steering chassis:

If your robot requires precise lateral movement in narrow smart warehouse aisles, rapid posture adjustments, or high-precision docking—such as for heavy-load AMRs or challenging industrial automation tasks—the four-wheel steering omnidirectional chassis delivers unmatched performance.

How to choose? Scenario requirements are the ultimate guide.

Select a differential chassis when:

Budget is sensitive, the operating environment is ultra-flat indoor, the task path is simple with ample space (e.g., basic material transfer);

Opt for 4WD chassis when: Frequent high-speed turns in confined spaces are required, complex terrain challenges exist, centimeter-level positioning accuracy is demanded, or tasks involve slopes/outdoor environments (e.g., flexible production lines in smart factories, all-terrain inspections at substations, multi-floor deliveries in hospitals).
