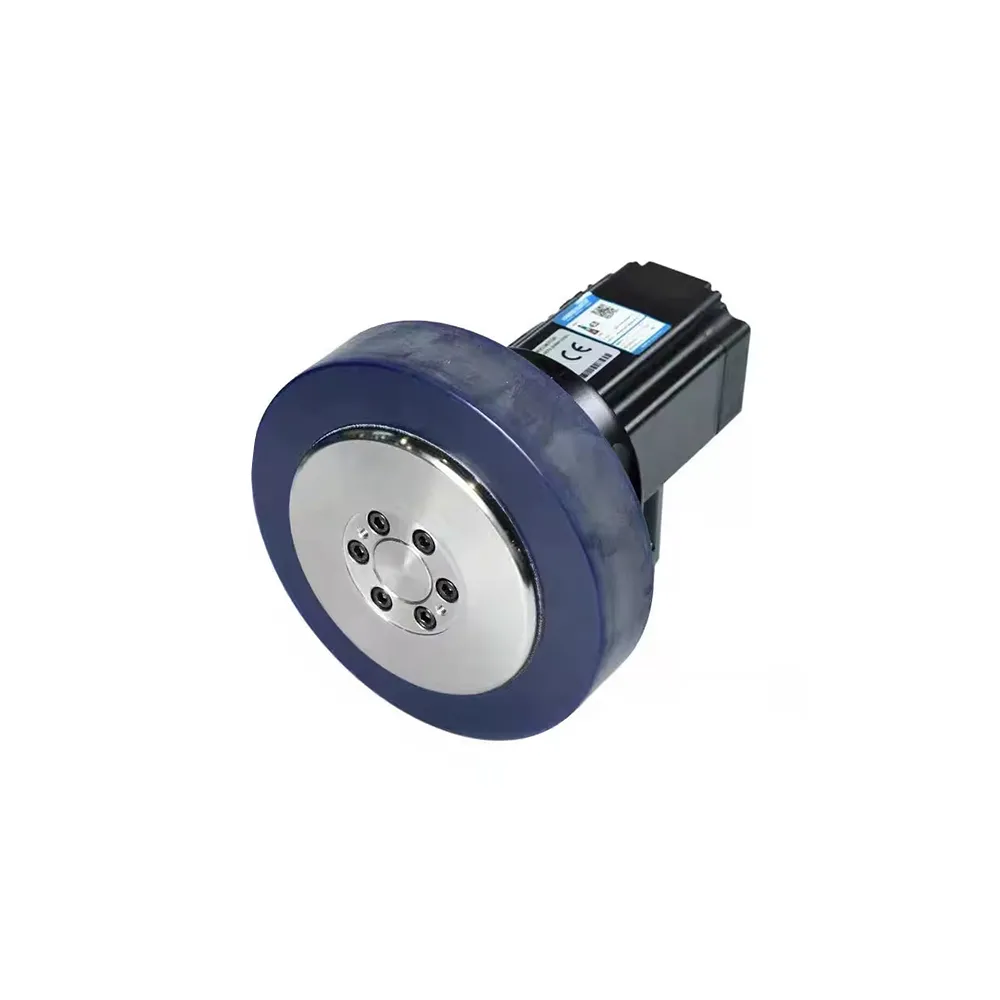

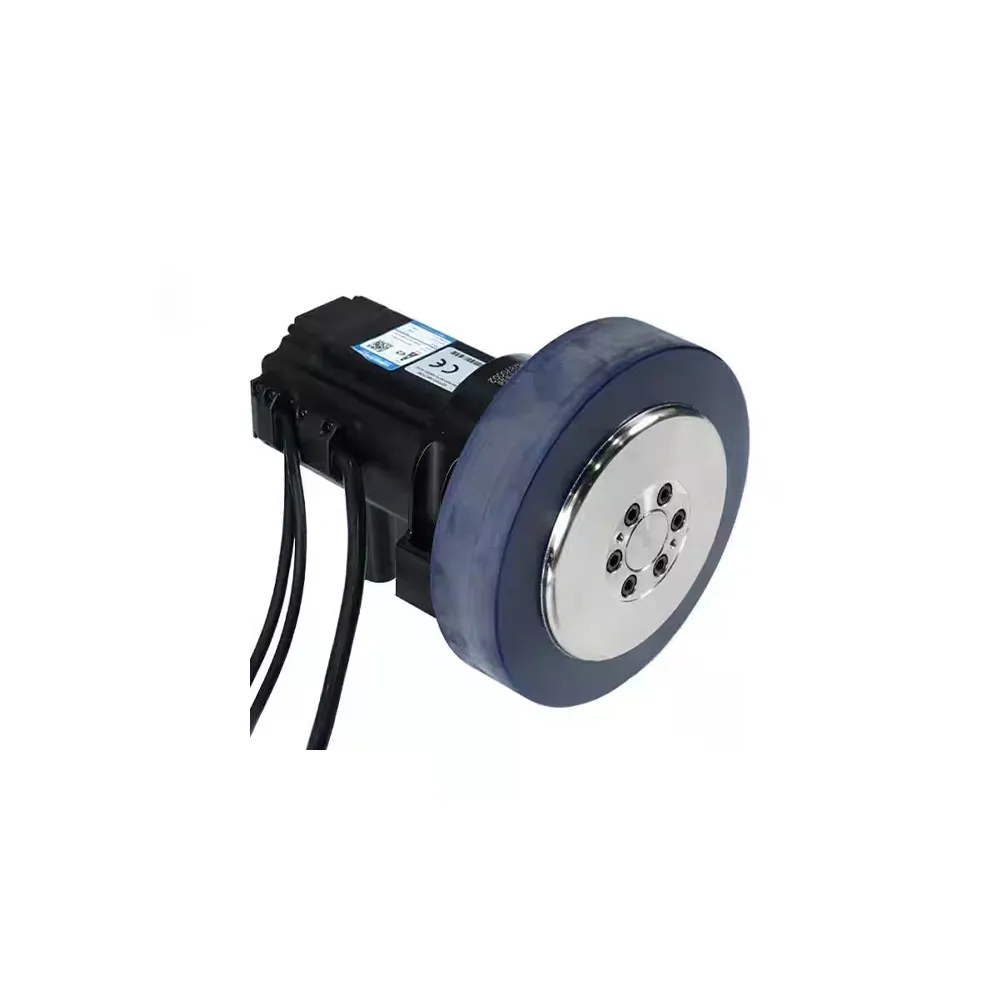

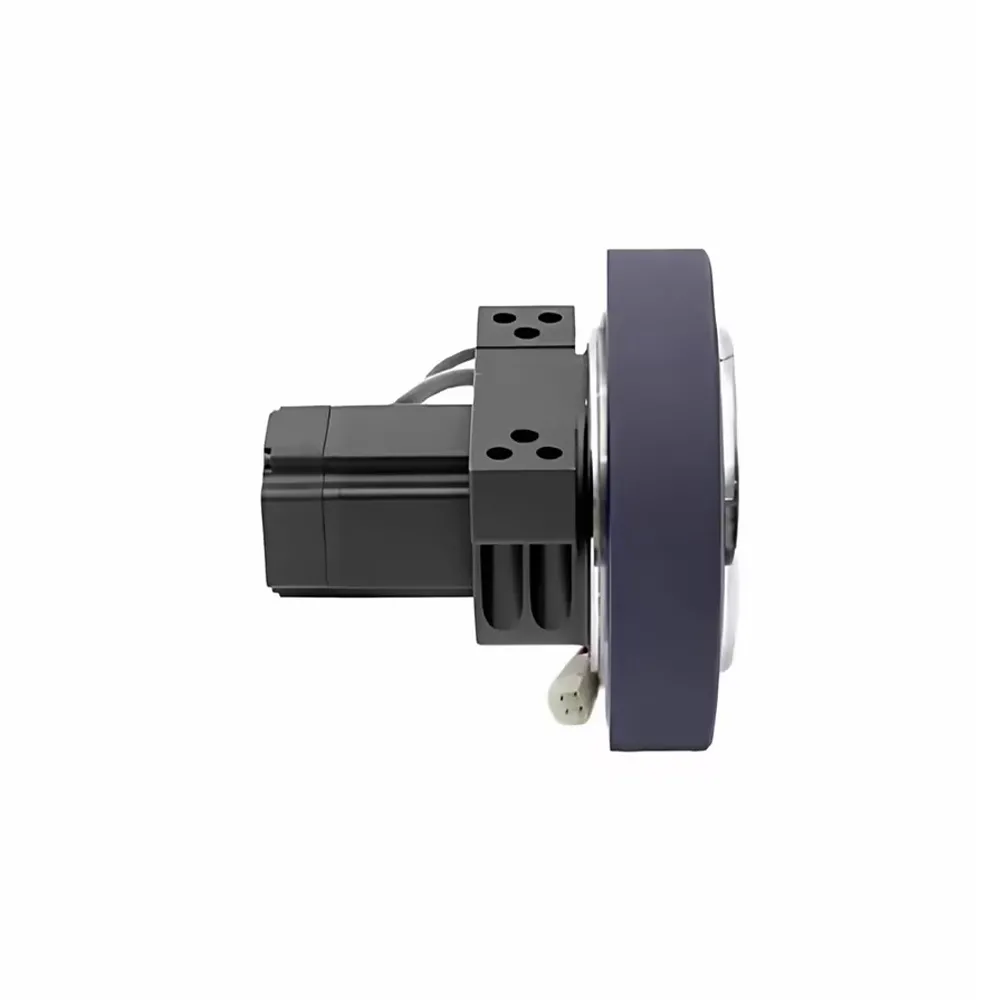

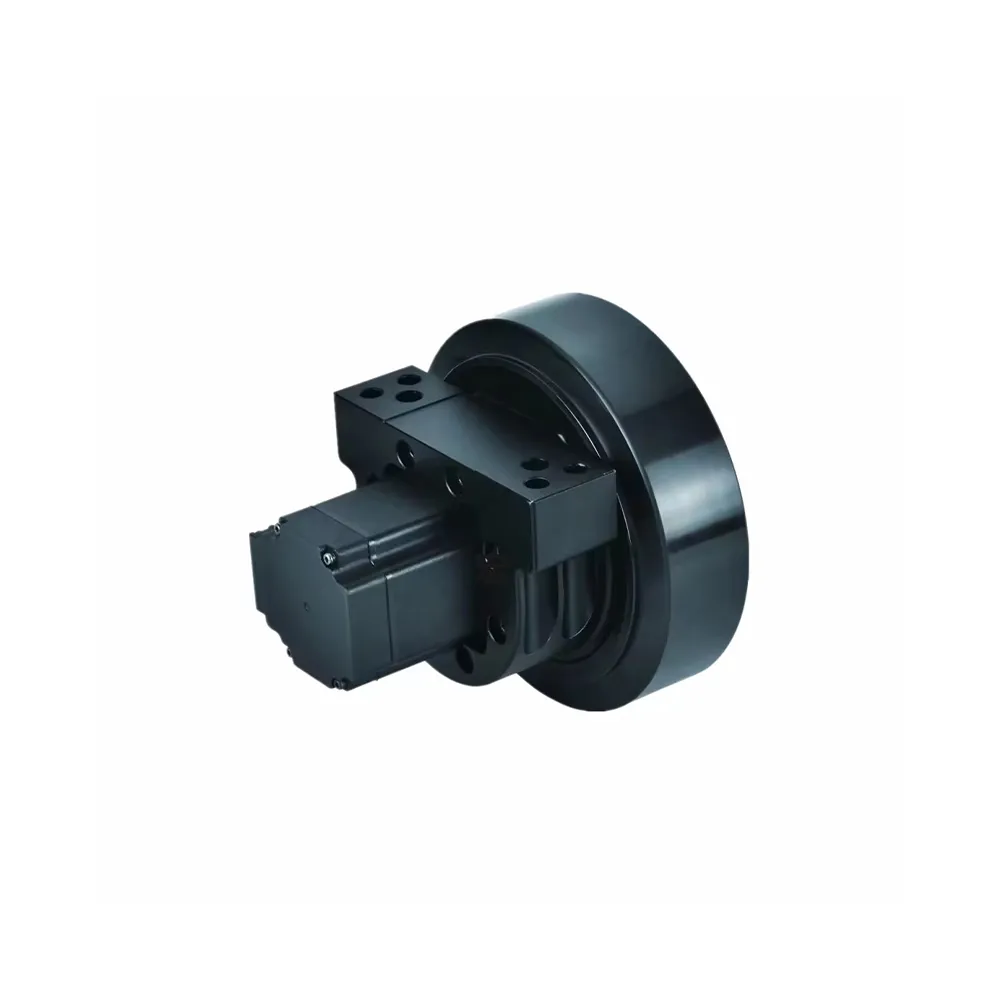

Servo Drive Wheel Motor

A servo drive wheel motor refers to the engine that controls the operation of mechanical components within a servo system, serving as an auxiliary motor for indirect speed regulation.

A servo drive wheel motor is a closed-loop control motor with integrated encoder feedback, enabling precise motion regulation through real-time monitoring of position, speed, and torque. Its core features include high-precision positioning (with error as low as ±0.1°), rapid dynamic response (millisecond-level start/stop), accurate torque control, and overload protection capability. Its rotor speed is controlled by the input signal and responds rapidly. In automatic control systems, it serves as an actuator, featuring a small electromechanical time constant and high linearity. It converts the received electrical signal into angular displacement or angular velocity output on the motor shaft. Primarily designed for environments demanding stringent motion precision, such as robotic chassis (inspection AGVs, logistics transport platforms, agricultural robots), industrial automation production lines, and outdoor scenarios (dustproof and waterproof environments with IP65+ protection). It is particularly suited for dynamic operating conditions requiring complex trajectory planning, emergency obstacle avoidance, or human-robot collaboration.

Parameter Table

1. Closed-Loop Control and High-Precision Positioning

Real-time feedback of position, velocity, and torque data via built-in encoders ensures precise and reliable chassis movement. For instance, in industrial inspection AGVs, high-resolution encoders guarantee ±1mm positioning accuracy for wheeled chassis in complex factory environments, effectively supporting stable mapping by SLAM navigation systems.

2. Millisecond-Level Dynamic Response Capability

Its millisecond-level dynamic response significantly enhances the chassis' maneuverability. When warehouse logistics robots encounter sudden obstacles, the servo drive wheel motors can execute emergency stops or turns within 50 milliseconds to avoid collisions. This rapid start-stop capability stems from optimized current loop design within the motors, combined with EtherCAT communication protocol to achieve multi-wheel coordinated control.

3. Precise Torque Control and Flexibility

Precise torque adjustment enables the chassis to adapt to diverse operating conditions. For instance, when a logistics robot carries a 500kg load on a 30° incline, the servo system automatically boosts torque by 30% to maintain climbing stability. Regenerative braking technology recovers kinetic energy during descents, extending battery life by over 20%.

Indoor AGVs prioritize IP54 protection and quiet operation, while outdoor inspection chassis require IP67 sealed designs to withstand dust and rain:

Indoor environments (such as warehouse logistics AGVs) typically employ servo systems with IP54 protection ratings, effectively resisting everyday dust and minor water splashes. These are suitable for factory workshops or laboratories with stable temperature and humidity conditions;

For demanding outdoor environments (such as power inspection robots and field exploration chassis), motors with IP67-rated protection must be selected. Their fully sealed construction withstands sand and dust intrusion, torrential rain, and even brief submersion. Integrated aluminum cooling fins and phase-change cooling technology enable operation across extreme temperatures from -30°C to +70°C. A typical example is inspection chassis maintaining precise steering in desert heat or polar cold regions.

Industrial heavy-duty environments require both vibration resistance and chemical corrosion resistance. Servo drive wheel motor housings are constructed from stainless steel with reinforced bearing seals to withstand oil contamination, metal debris, and continuous mechanical impact.

Clean environments (such as medical sterilization robots and semiconductor workshop transport chassis) mandate servo motors certified to ISO Class 5 standards. These incorporate oil-free lubrication and low electromagnetic interference designs to prevent particulate contamination.

Servo drive wheel motors must avoid prolonged exposure to extreme conditions not specifically designed for, such as deep-sea high pressure, intense radiation, or sustained temperatures exceeding 85°C, when operating in complex environments like rainforests with high humidity or mines with high dust levels. During use, they must undergo IP rating certification and aging tests to validate suitability for specific operating conditions.

Note: In high-load scenarios, the cooling structure must be reinforced to prevent shutdown due to temperature rise caused by sustained overload.
