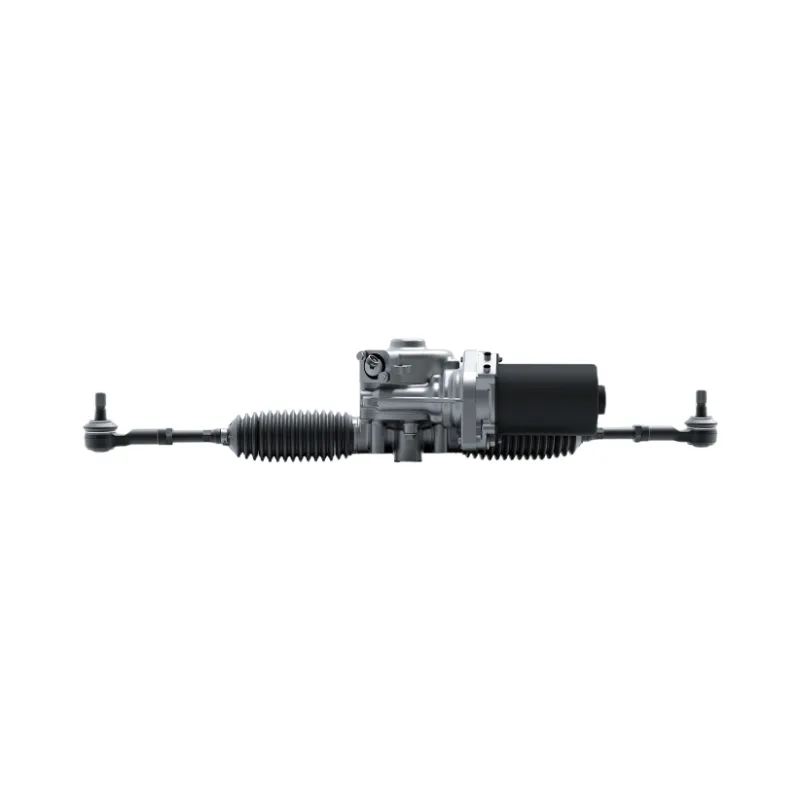

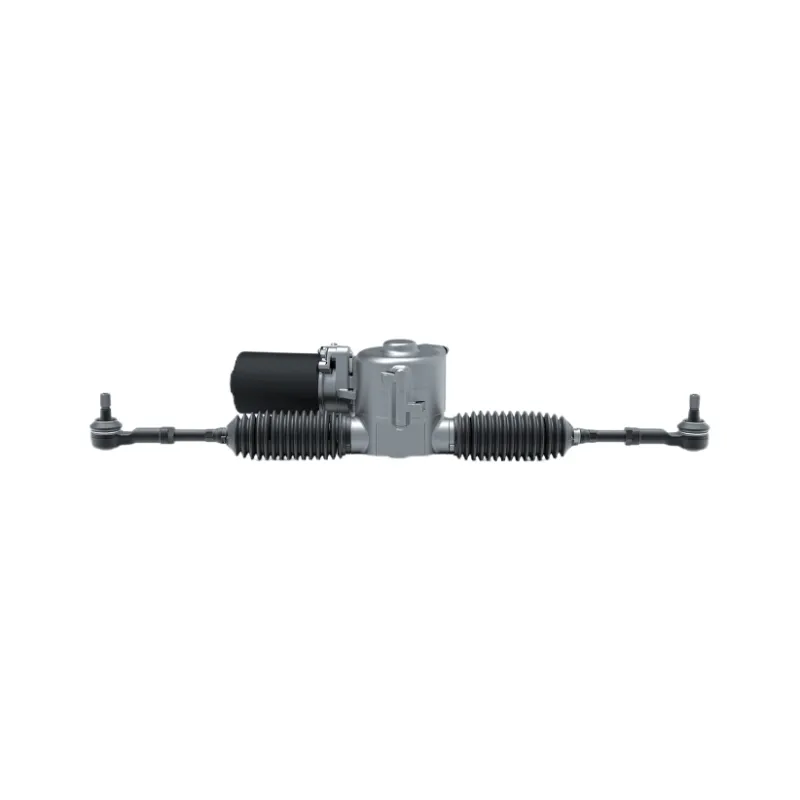

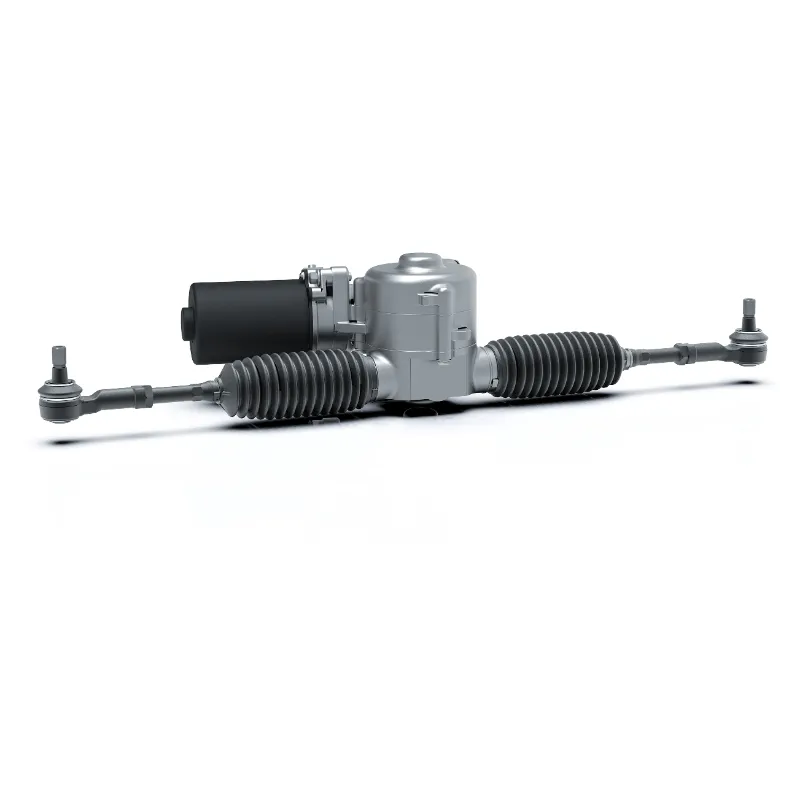

Electric Steering-by-Wire

Inquiry Now +

Parameter Table

Performance parameters
Serial numberProject NameUnitParameter
Motor Rated VoltageVDC 12V
Motor Rated PowerW400
Motor Rated TorqueNm3.4
Input Angle Range°±500
Maximum Output CurrentA36
Rack Travelmm123
Rack Lateral ThrustN4000
Single-axis LoadKg750
Controller Operating VoltageVDC 12V
10 Rotation Direction
two-way
11 Assembly Operating Temperature Range°C-40~+105
12 Insulation Withstand VoltageV240
13 Insulation Temperature°C500
14 Waterproof Rating
IP67 (excluding connectors)
Electric Steering-by-Wire
