Steering-by-Wire

Home - EV - Parts - Wired Components - Steering-by-Wire - Steer By Wire Kit

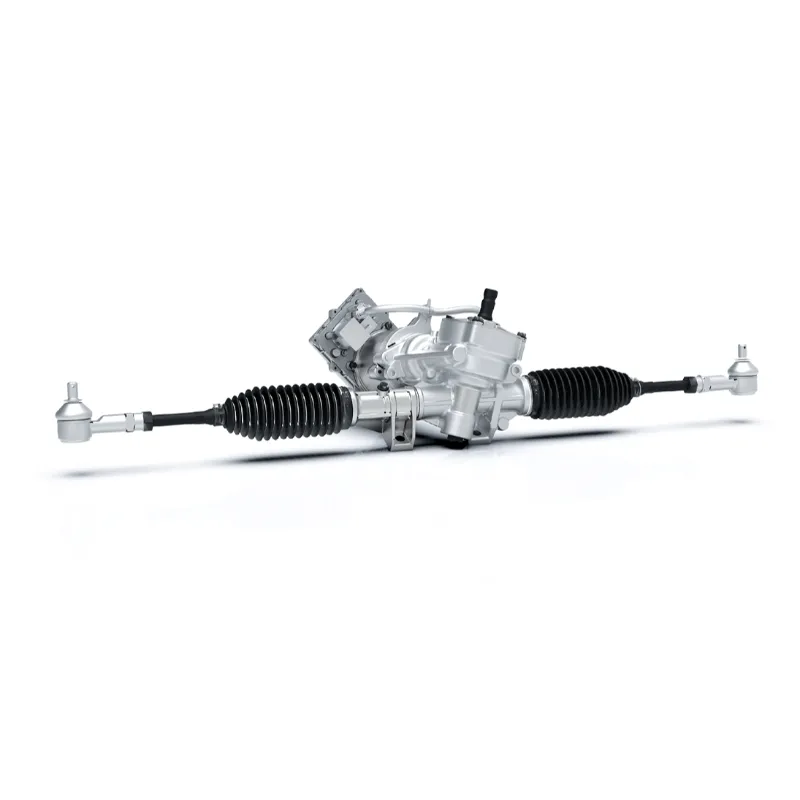

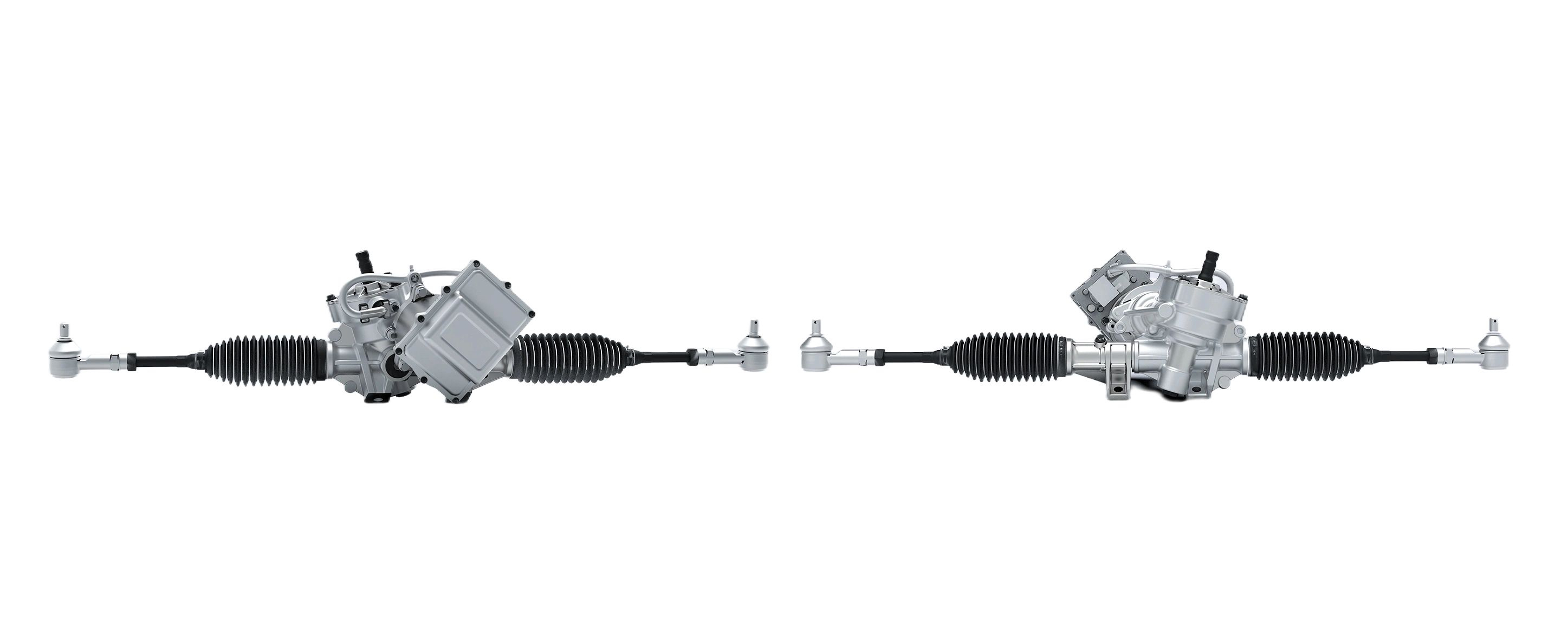

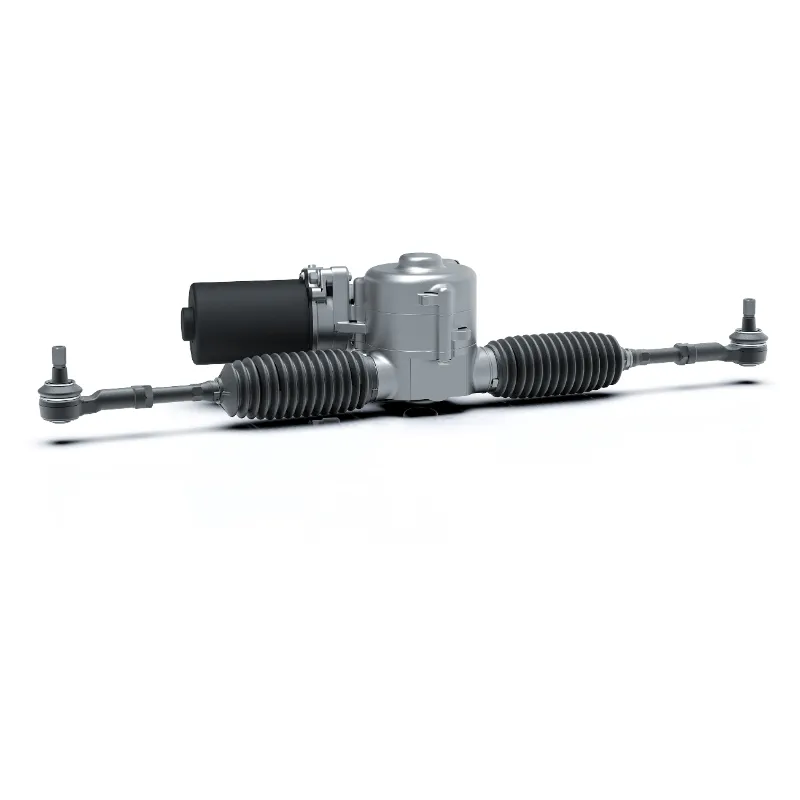

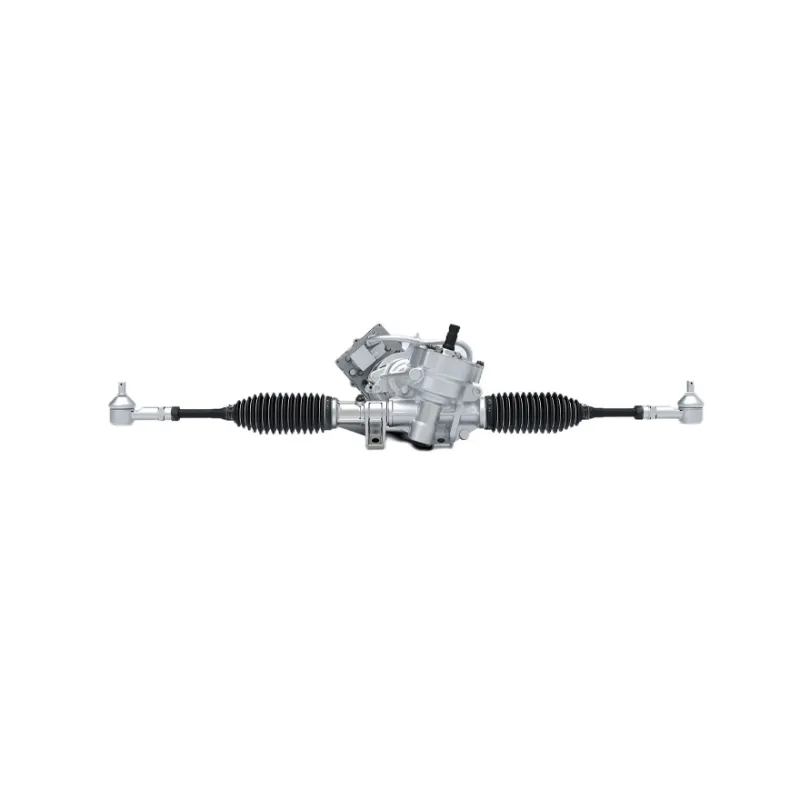

Steer By Wire Kit

Inquiry Now +

Parameter Table


Performance parameters
Serial numberProject NameUnitParameter
1 Motor Rated VoltageV12
2 Motor Rated PowerW460
3 Motor Rated TorqueNm4
4 Input Angle Range°±560
5 Maximum Output CurrentA80
6 Line Angle Transmission Ratiomm/rev44.4
7 Maximum Output TorqueNm61
8 Rack Total Travelmm152
9 Rotation Direction
two-way
10 Assembly Operating Temperature Range℃-40~+105
11 Waterproof Rating
IP67 (excluding connectors)

Steer By Wire Kit
