Agricultural navigation and automatic driving system is a kind of intelligent technology specially designed for agricultural machinery, which realizes autonomous driving and precise operation of agricultural machinery by integrating global navigation satellite system (GNSS), sensors, artificial intelligence (AI) and automation control technology. It supports BeiDou/GPS/GLONASS tri-mode positioning, is compatible with a global farm network environment, ensures the stability of inter-regional operation, and realizes stable operation under the environment of no network and weak network.

The system covers the whole operation cycle of cultivation, planting, management, and harvesting, and is compatible with 50-300 hp tractors, harvesters, and plant protection equipment, and is suitable for plains, hills, terraces, and other terrain operation needs.Equipped with 360 ° surround-view monitoring and an intelligent warning system, the obstacle recognition rate within 5 meters reaches 100%, together with the triple protection mechanism of rollover warning and offset warning, which significantly reduces the risk of operation.The innovative one-key straightness calibration and handover row alignment function improves the field operation efficiency by 40% and reduces the loss of reseeding and omission by 30%, helping users realize the efficient management of the whole process from sowing to harvesting.

Autonomous Signal Enhancement System

The system integrates independently developed high-precision fusion algorithms to build an all-weather positioning guarantee system. It can still maintain ±2.5cm positioning accuracy under a weak network environment without a network, such as Gobi, desert, forest area, etc. The signal fixing speed is 50% higher than the traditional program, and the operation accuracy is 20% higher. It supports BeiDou/GPS/GLONASS tri-mode positioning and is compatible with the global farm network environment, ensuring the stability of cross-regional operations.

Full-cycle intelligent operation platform

An intelligent solution covering the whole process of plowing, planting, management, and harvesting, suitable for 50-300 hp tractors, harvesters, and plant protection equipment. Equipped with AgNav5.1 intelligent software, it provides 12 path planning modes (AB line/A+ line/free curve, etc.), and supports 3D vehicle modeling and animation preview of the operation track. Plains/hills/terraces full terrain adaptation, operating speed up to 30 + KM / H, measured single-day efficiency increase of 45%, significantly reducing the need for manual intervention.

360°Security Protection

Equipped with a 4-channel 1080P high-definition camera to form a panoramic surround view system, eliminating 6 major vision blind zones, with a 100% obstacle recognition rate within 5 meters. Intelligent warning system integrates electronic boundary alarm, marker collision warning, and rollover risk alert function, with night vision mode enhancement to improve clarity by 80% in a low-light environment. The measured accident rate of complex terrain operation is reduced by 70%, providing a double guarantee for the safe operation of agricultural machinery.

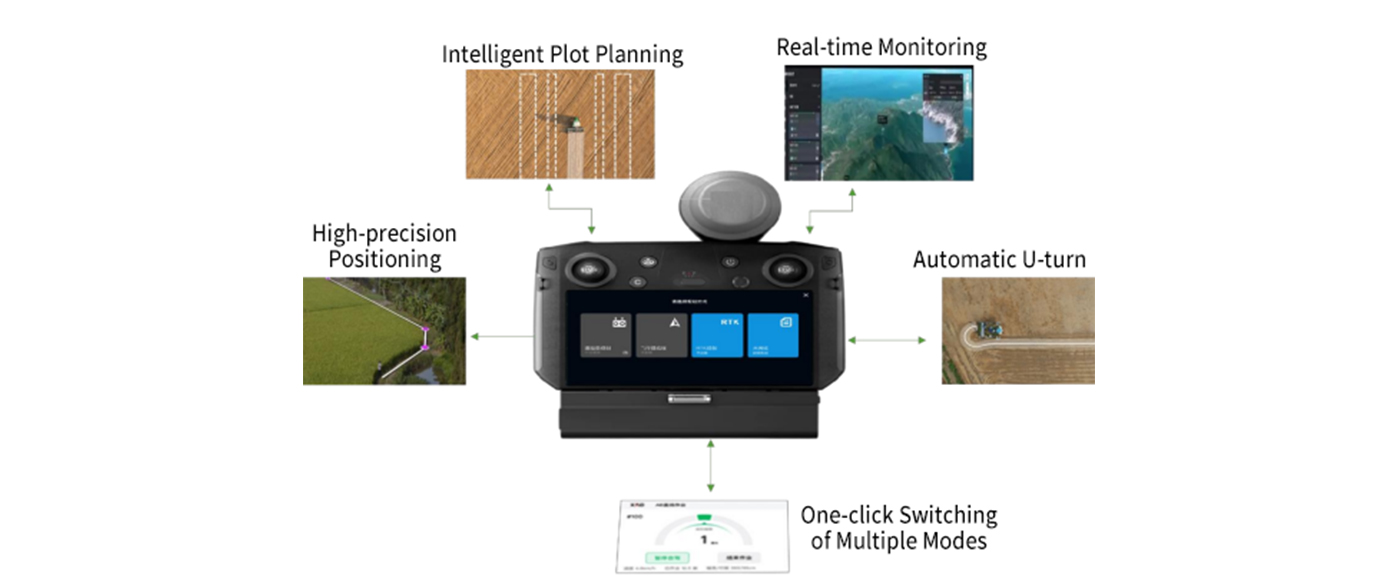

Minimalist human-computer interaction terminal

The 12-inch industrial-grade glare-resistant display optimizes the human-computer interaction experience, with icons enlarged by 50% and false-touch rate reduced by 40%, and is still clearly visible under strong sunlight. Innovative one-button calibration function takes only 30 seconds for straightness adjustment, and optimization of handover line can be completed through two trial runs, saving 70% of time compared with the traditional commissioning process. The electric steering wheel is 30% smaller in size but 25% higher in torque, and the ergonomic design significantly reduces fatigue from prolonged operation.

Data interconnection ecosystem

It supports real-time synchronization of field data among the punter, agricultural service APP, and cloud platform, and realizes automatic statistics of the operating area and historical track playback. Compatible with John Deere/CLAAS and other mainstream agricultural data protocols, which can be seamlessly connected to the farm management system. The power outage renewal mechanism guarantees data integrity, and the cloud storage supports 200+ equipment cluster management, providing digital infrastructure for smart farms.
