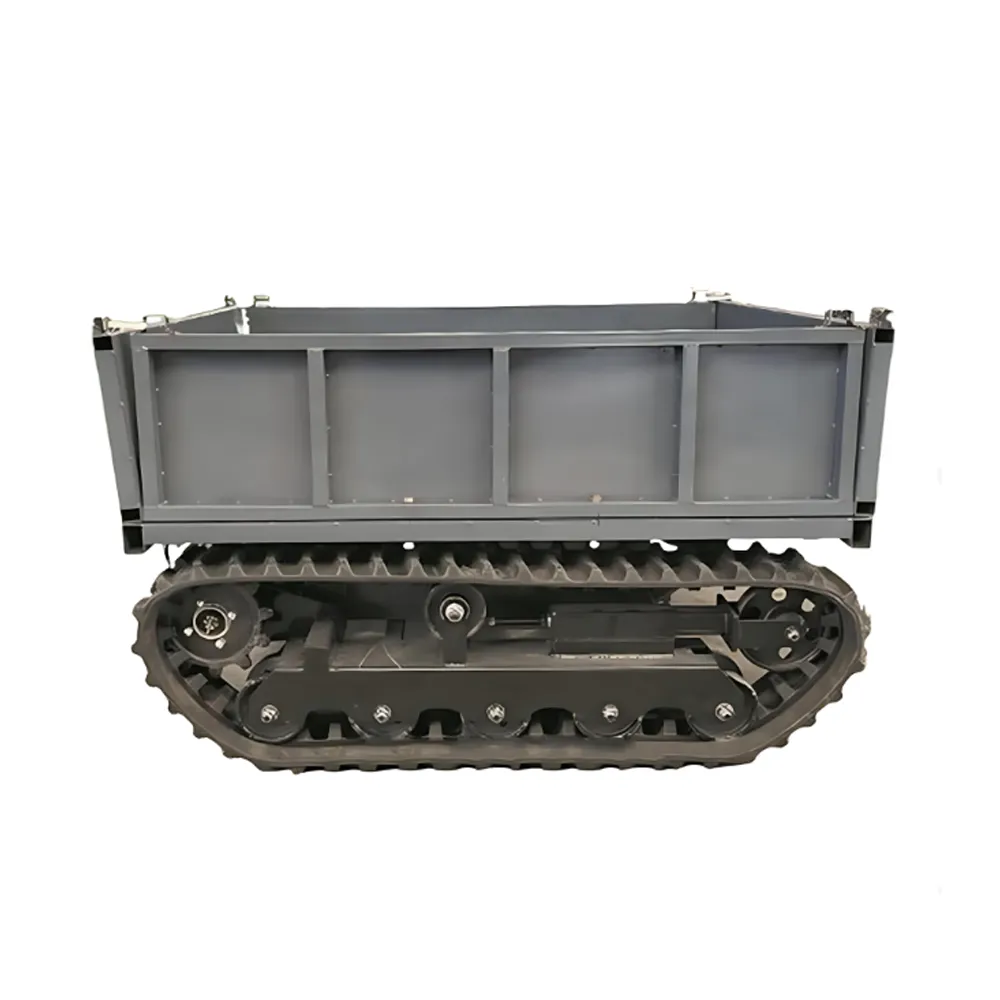

Track Robot Tank Chassis

Inquiry Now +

Table Parameters
Vehicle Dimensions (L x W x H)1360mm × 1130mm × 500mm
Ground Clearance250mm
Intended UseHardened pavement, grass, mountain trails, muddy roads, hilly fields, gravel, forest areas, snow-covered terrain
Drive TypeCaterpillar tracks
Vehicle Weight450 kg
Maximum Payload1000 kg
Wheel Diameter550 mm
Tire TypeRubber tracks
Motor Power1200 W × 2, brushless DC motors
Motor Controller24-channel dedicated controller
Braking SystemElectromagnetic brake
Remote Control Range200 m, wireless
BatteryLithium iron phosphate 60 V 150 Ah
SpeedLow speed 0–5 km/h, high speed 0–10 km/h
Gradeability25°
Optional Features
Truck bed dimensions (L x W x H)1360 mm × 1130 mm × 350 mm
Remote control500 m
Tipping mechanismHydraulic
Work lightsLED × 2
GPS trackingThe vehicle 4G tracker supports real-time monitoring of the vehicle's location, lithium battery charge level, and remote power cutoff via a mobile app.
Vision System5.5-inch remote control, receiver, 3-lens camera (2 units), network switch (1 unit).
7-inch remote control, receiver, 3-lens camera (2 units), network switch (1 unit).
10-inch remote control, receiver, 3-lens camera (2 units), network switch (1 unit).
7-inch remote control, receiver, 360° panoramic hub + 4-channel HD cameras, video switching control panel, panoramic stitching service
10-inch remote control, receiver, 360° panoramic hub + 4-channel HD cameras, video switching control panel, panoramic stitching service
Autonomous DrivingAuto-follow
RTK
Indoor laser
Outdoor laser
