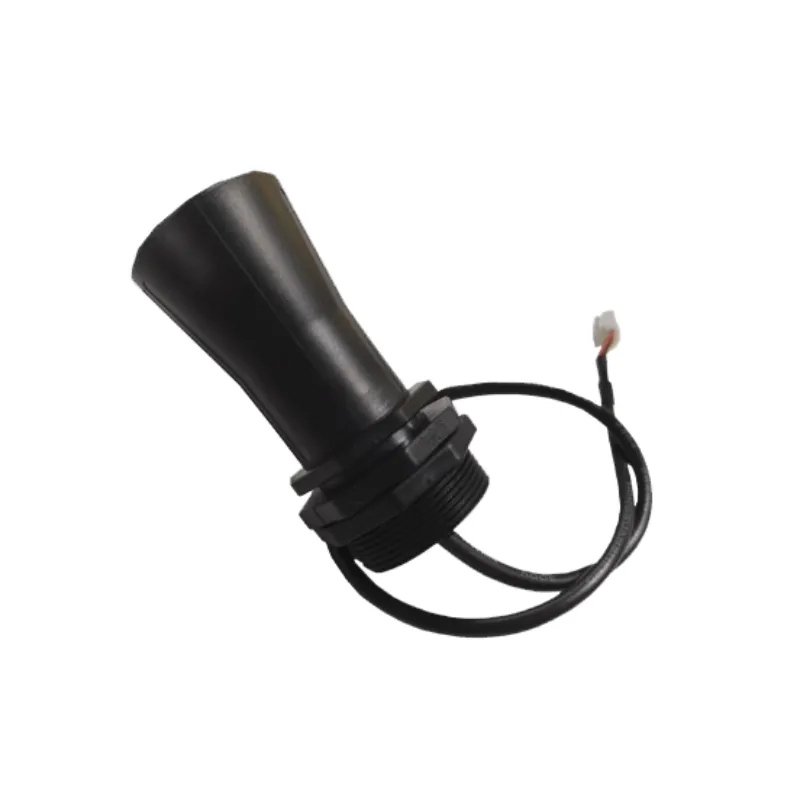

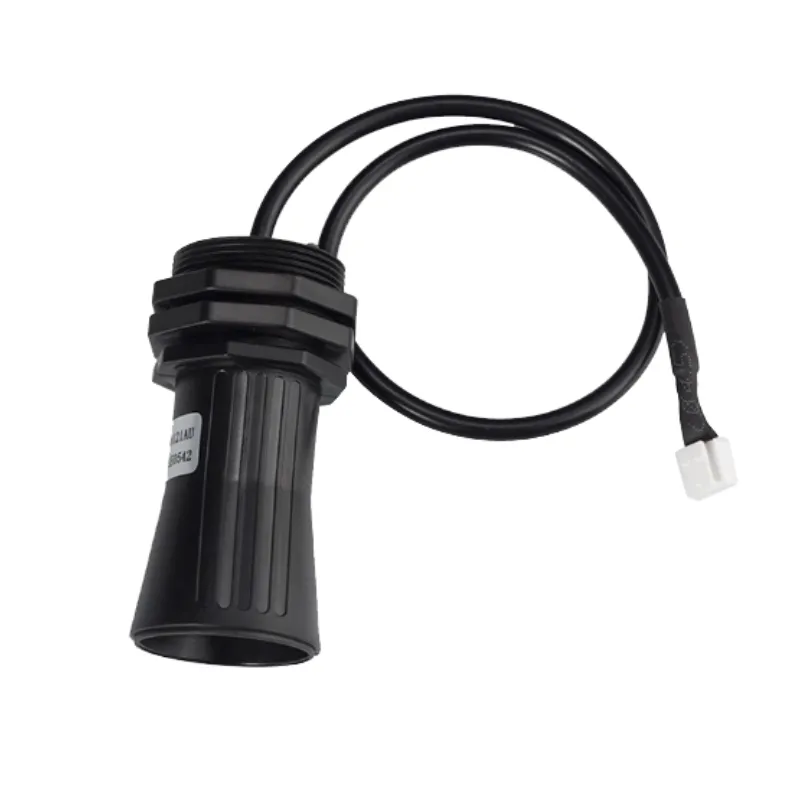

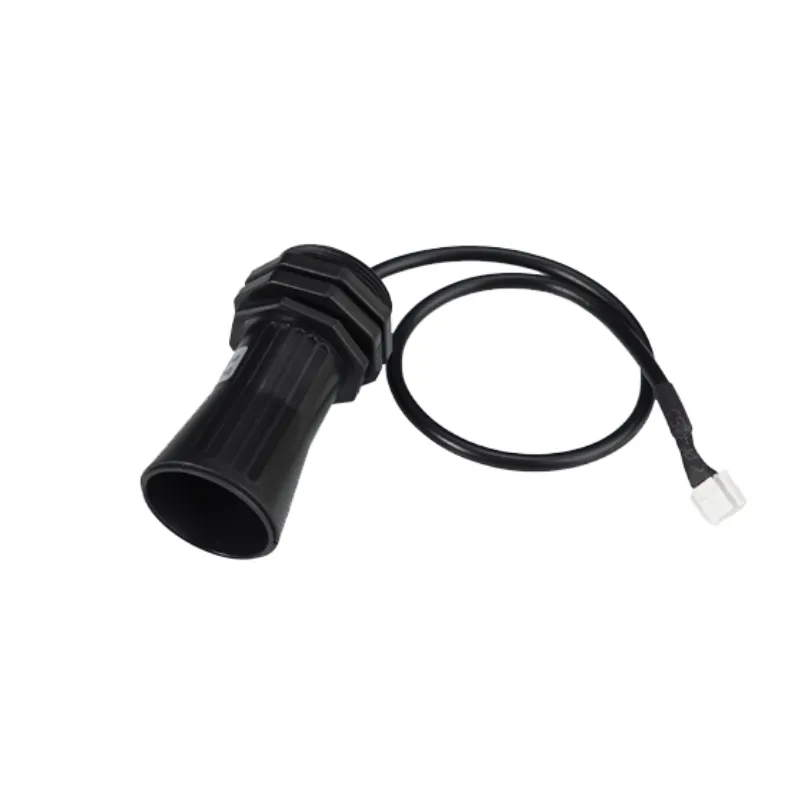

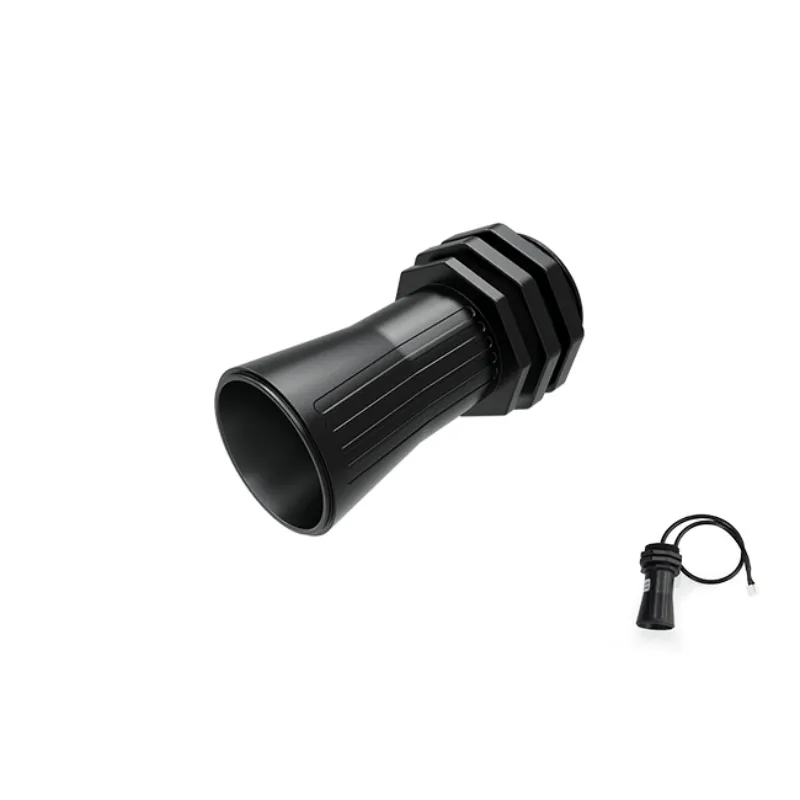

DYP-A01

DYP-A01

Inquiry Now +


ModelAO1A Series Planar Distance MeasurementA01B Series Human Body Distance MeasurementA01C Series Garbage DetectionRemark
Working Voltage3.3~5V3.3~5V5.0~12V(1)
Average Current<10mA(2)
Blind Zone Distance≤28cm
Range without Bell Mouth28~450cm28~450cm-(3)
Range with Bell Mouth28~750cm28~750cm28~250cm(3)
Angle without Bell Mouth-≈75°-(4)
Angle with Bell Mouth≈40°≈65°-(4)
Output Mode"UART automatic output, UART controlled output
PWM controlled output, PWM automatic output
Switch output, RS485 output"		UART automatic output
UART controlled output
RS485 output


Notes:

(1) The RS485 output power supply range of A01A and A01B is 5~12V;

(2) Typical data obtained from the test at room temperature, with a power supply of 5.0V (A01C series power supply 12V), and a 100ms working cycle;

(3) At room temperature, the object to be measured is a 50cm*60cm flat carton, and the detection direction should be as perpendicular to the object as possible;

(4) At room temperature, the object to be measured is a φ7.5cm*100cm white PVC pipe at a distance of 100cm. The reference data is obtained from the test. There are also differences at different measuring distances and angles.




DYP-A01
