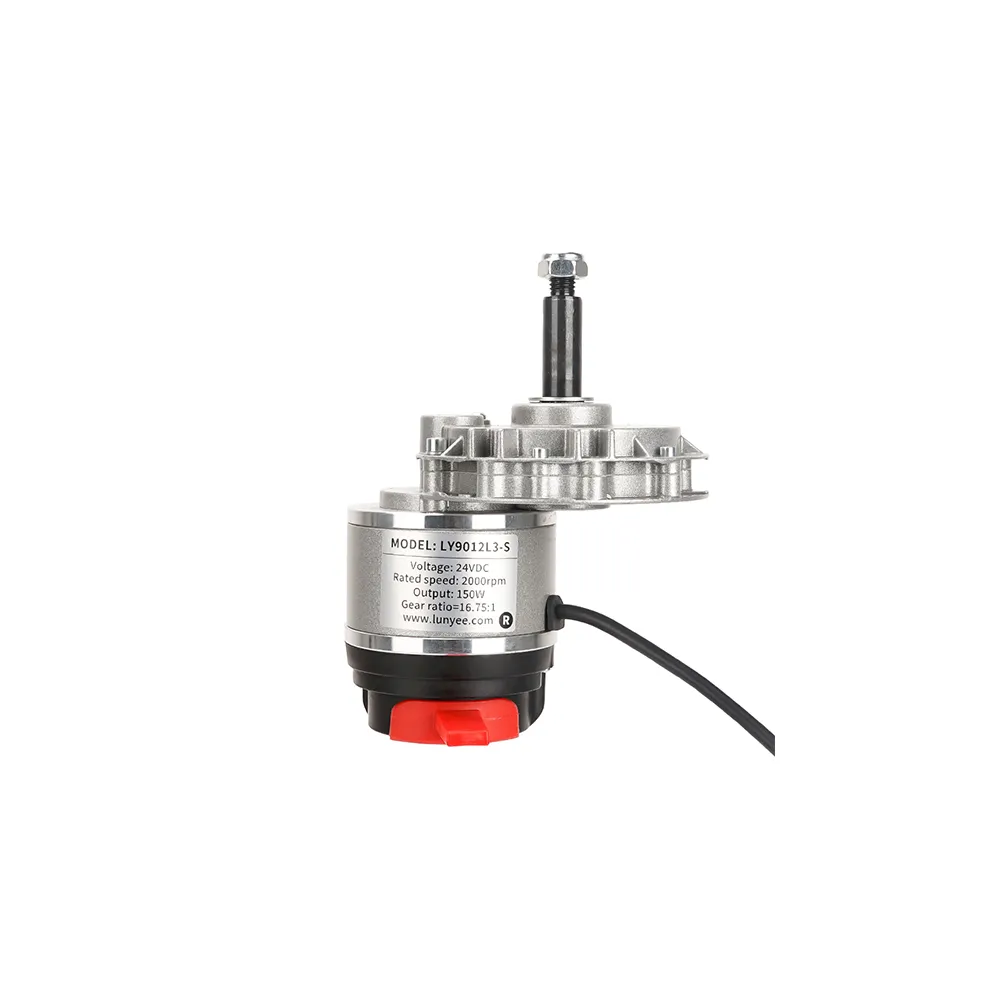

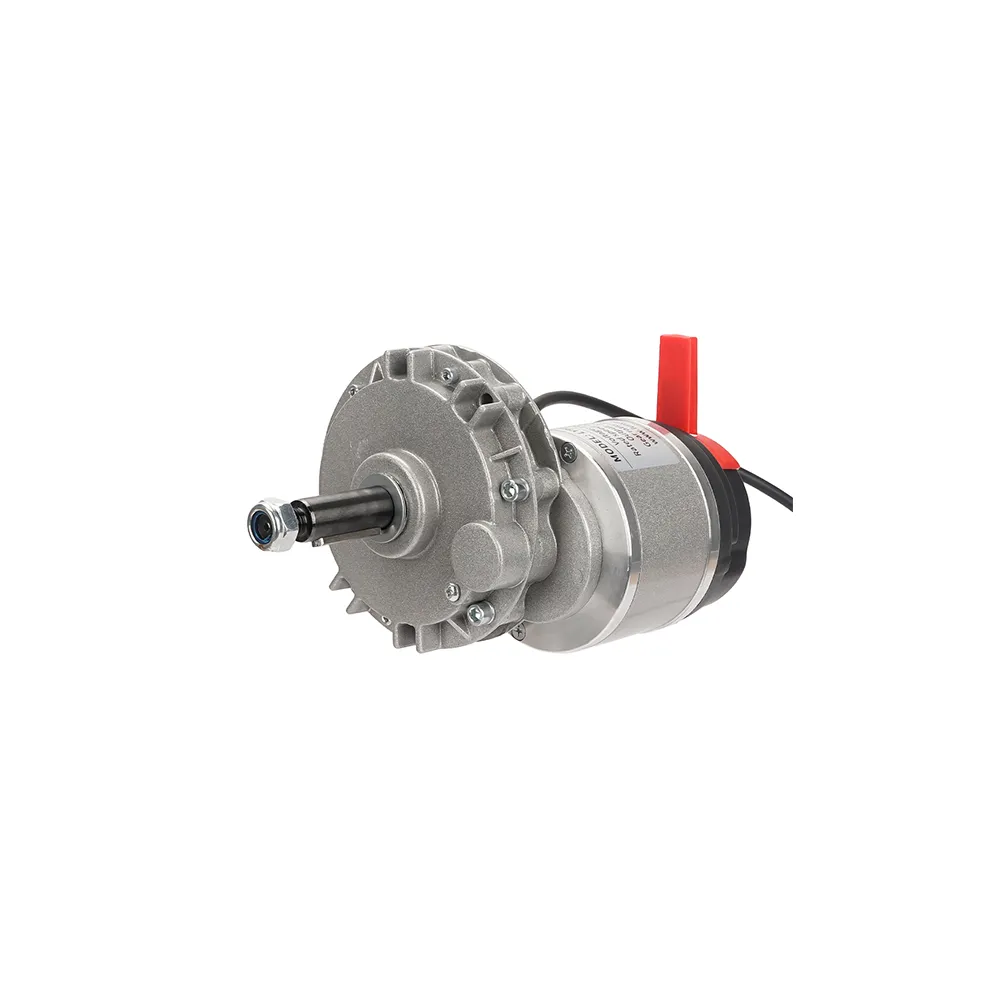

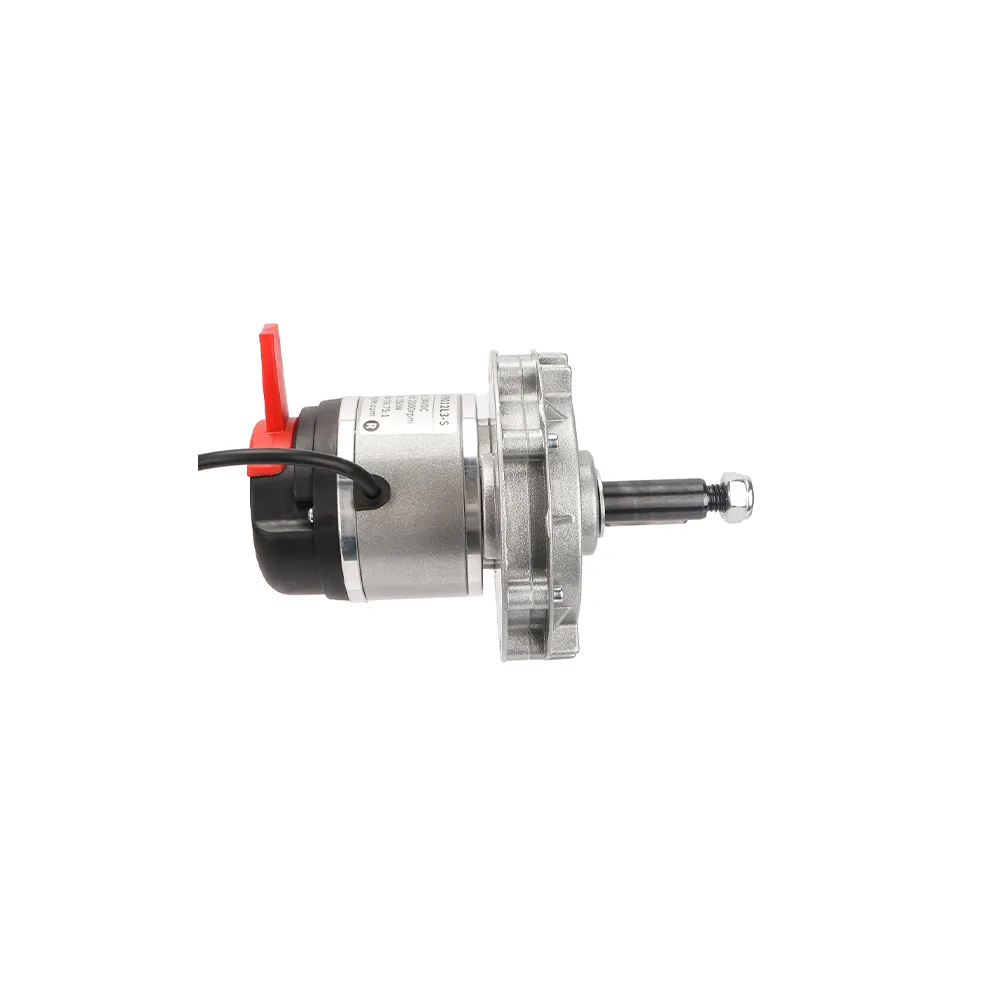

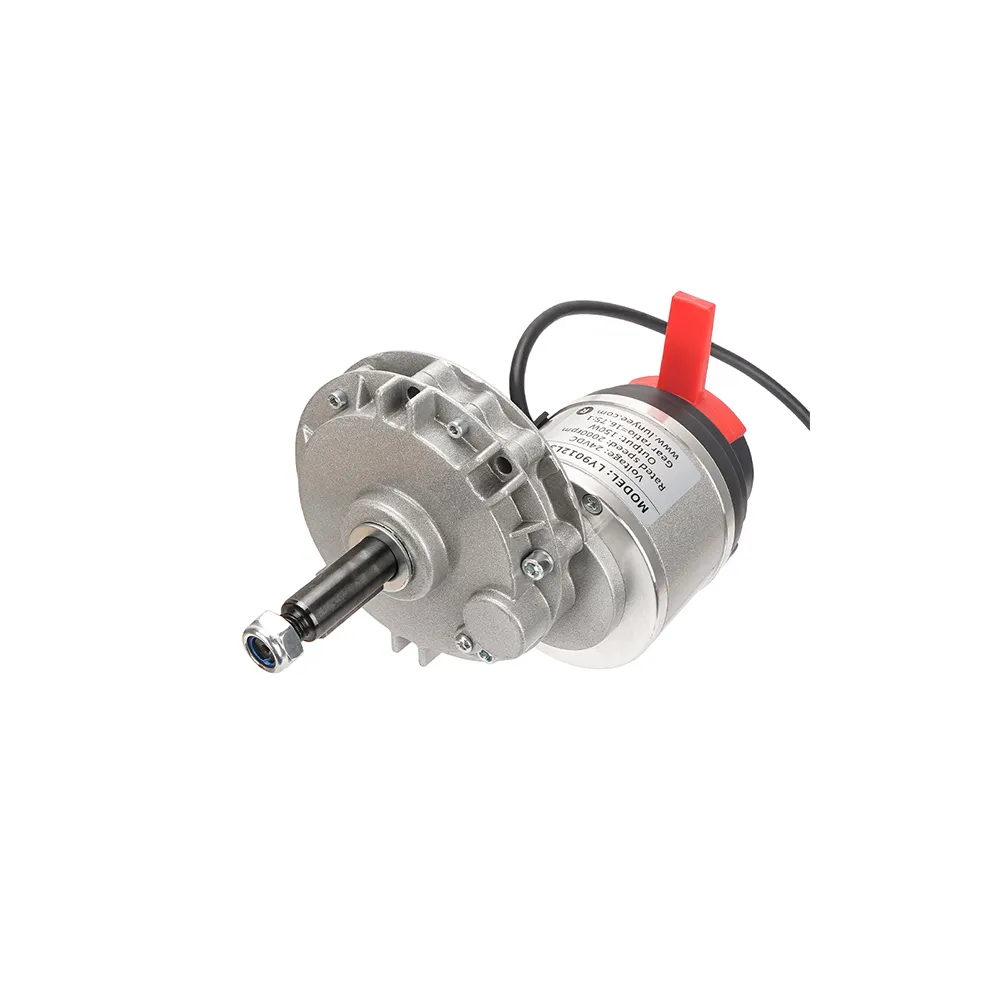

Wheelchair Brushless DC Motor

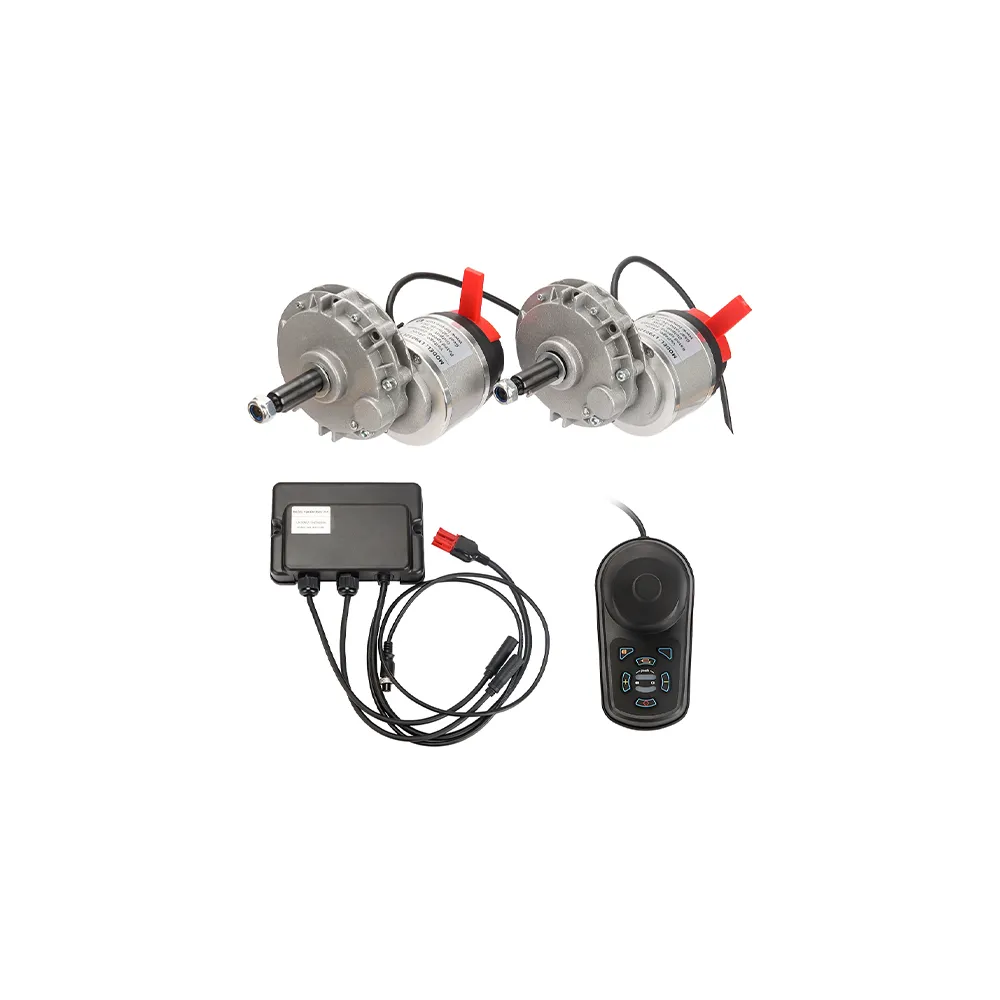

Wheelchair brushless DC motors (BLDC) serve as the core drive components for electric wheelchairs, typically employing an external rotor design characterised by high efficiency, low noise, and extended service life. When integrated into a robotic chassis, two or four wheelchair motors are commonly utilised as drive wheels, working in conjunction with controllers (such as the ROS system) to achieve steering and speed regulation.

Low speed, high torque: It achieves high torque output through an integrated gear reducer (such as planetary or worm gear reduction), delivering torque ranging from 5 to 20 Nm. This enables effortless driving of loads from 10kg to 200kg, supporting both flat ground movement and incline climbing (gradients of 5-15°). It is well-suited for the slow movement of robotic chassis on flat surfaces or ramps, such as indoor navigation, logistics transport, or inspection robots.

Brushless design: Operates via electronic commutation (rather than mechanical carbon brushes), eliminating brush wear and maintenance. Rotor position is detected through Hall sensors or non-contact methods, achieving drive efficiencies of 85-90%. Features low operational noise and minimal vibration, making it suitable for indoor environments (such as hospital and hotel service robots).

Flexible control: Motors are typically equipped with Hall sensors, enabling precise rotor position detection for smooth start-up and speed regulation. Speed adjustment is achieved via PWM signals through electronic speed controllers, with CAN interface compatibility facilitating seamless integration with mainstream control platforms such as Arduino and ROS. Built-in encoders support closed-loop control, meeting requirements for SLAM navigation or high-precision positioning (positioning error <5cm). The open-source community provides control code and circuit diagrams, enabling developers to rapidly implement differential drive or omnidirectional movement.

High reliability and overload capacity: As these motors are specifically engineered for wheelchairs, they must withstand frequent starts and stops, load variations (such as human weight), and complex terrain (like thresholds and ramps). Consequently, they possess robust overload resistance, making them highly suitable for the instantaneous high-load demands encountered by robotic chassis during start-up or when ascending slopes. Internal circuitry typically incorporates overcurrent and overheat protection, ensuring stable operation under heavy loads or during prolonged use (2-3 hours).

Modular and Standardised Interfaces: Motors typically feature standard electrical interfaces (such as three-phase power cables + Hall sensor wires, 5-6 pin connectors), compatible with mainstream ESCs (e.g., VESC 6.0, Roboteq HBL2360, or DIY Arduino modules). Mechanically, motor shafts or hub mounting holes (M6-M8 bolts) align with common chassis frames, enabling swift installation or replacement.

Modular expansion is supported, such as adding encoders for closed-loop control or external brake modules to enhance stopping precision. This standardised design reduces adaptation costs for developers, proving particularly suitable for rapid-iteration prototyping projects or open-source robotics platforms.

Low-power consumption and thermal management optimisation: The wheelchair brushless motor is suited for extended operational scenarios. With high motor efficiency, it achieves a range of 5–20 kilometres or 8–12 hours of operation when paired with lithium batteries, meeting the demands of service robots (such as meal delivery) or inspection tasks. The aluminium alloy casing and heat sink fin design effectively reduce operating temperatures, maintaining stability even under high loads. It can even support external fan or thermistor monitoring for further thermal management optimisation.

Environmental Adaptability and Customisability: The wheelchair motor accommodates diverse robotic chassis requirements. By fitting sealing rings or silicone pads, the protection rating can be elevated to IP65, enabling operation in outdoor environments (such as agricultural robots or power line inspection systems). The motor supports multiple tyre configurations (8-12 inches, smooth or off-road tyres), allowing customisation for terrain. For instance, fitting 10-inch off-road tyres enhances traction, enabling a 15° climbing angle.

Rich open-source ecosystem support: Given its widespread adoption in DIY and educational sectors, the open-source community provides extensive resource support. These resources enable even beginners to get started quickly, thereby shortening development cycles.

Multi-scenario adaptability: Beyond conventional differential drive (2WD) or omnidirectional Mecanum wheel (4WD) chassis configurations, the motors may also be deployed in tracked chassis (e.g., rescue robots) or six-wheel chassis (heavy-duty material handling). By adjusting motor quantity and layout, diverse load capacities and terrain requirements can be accommodated.

Wheelchair brushless motors (BLDC) excel in diverse robotic chassis applications due to their high torque, low-speed operation, cost-effectiveness, and ease of modification, catering to a broad spectrum of needs from educational experimentation to industrial deployment.

Educational and DIY robotics represent one of the most prevalent applications for wheelchair brushless motors, proving particularly well-suited for students, hobbyists, and researchers constructing low-cost robotic chassis. The motors' high torque and low-speed characteristics enable small robots (such as 2WD or 4WD chassis with payloads of 10-50kg) to achieve fundamental navigation and obstacle avoidance functions.

Indoor service robots represent a significant application domain for wheelchair brushless motors, widely employed in hotel meal delivery, hospital logistics, or domestic assistant robots. These scenarios demand chassis with low noise, smooth operation, and medium-to-low speed load-bearing capabilities.

Industrial AGVs (Automated Guided Vehicles) leverage the cost advantages and high load capacity of wheelchair brushless motors, finding extensive use in warehouse handling and factory logistics. These applications typically require chassis support for 50-200kg loads, omnidirectional mobility, and high positioning accuracy.

Outdoor inspection robots leverage the environmental adaptability and customisability of wheelchair brushless motors, making them suitable for scenarios such as power line inspections, agricultural monitoring, or security robots. These applications require a chassis capable of navigating uneven terrain (e.g., grass, gravel) and mildly wet environments.

Crawler-based or specialised robots represent another extension of wheelchair brushless motor applications, serving rescue operations, exploration, or tasks in challenging terrains. Caterpillar chassis necessitate higher torque to navigate muddy conditions or steep inclines, where the gear reducer of wheelchair motors fulfils this requirement.

Note: Wheelchair motors are unsuitable for high-speed or ultra-high-precision applications, necessitating servo motors or specialised reducers. Enhanced waterproofing and heat dissipation are required for prolonged outdoor operation. For specific scenario analysis (e.g., load capacity, terrain, control code) or performance charts, please provide details – our company offers bespoke support!
