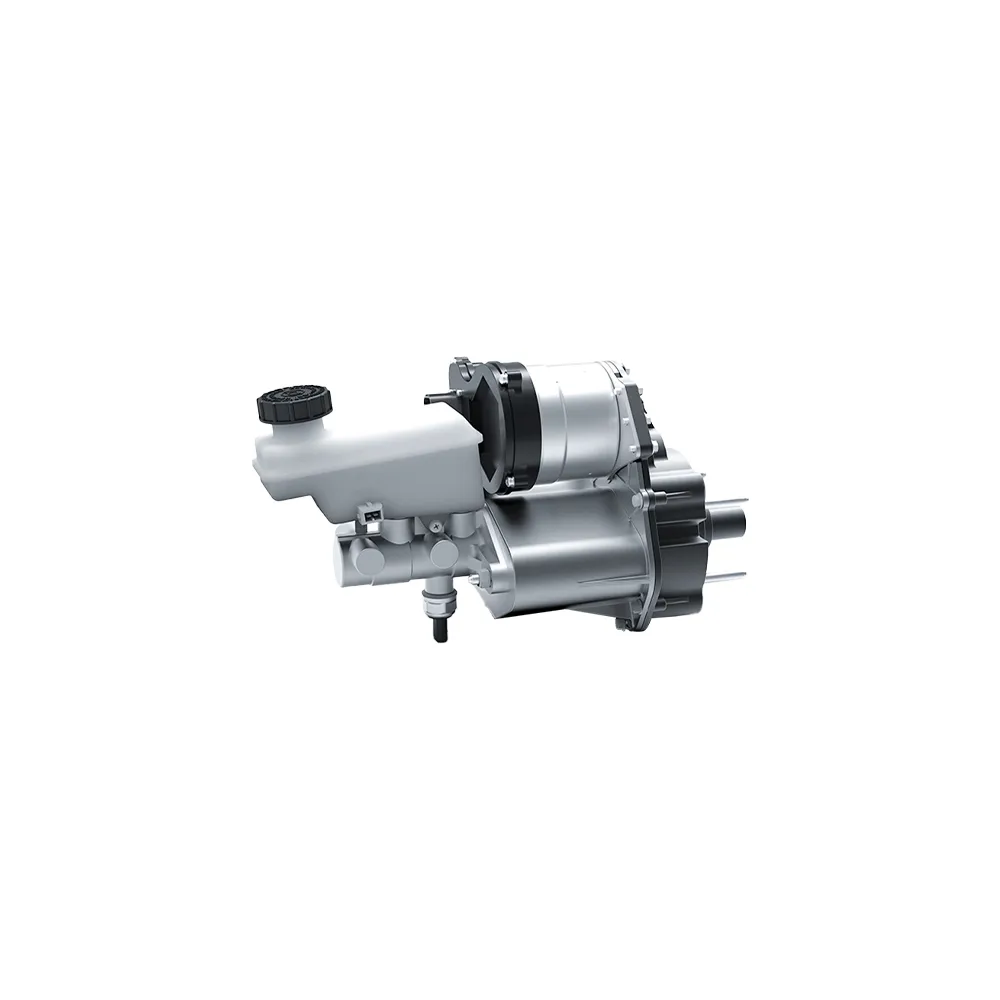

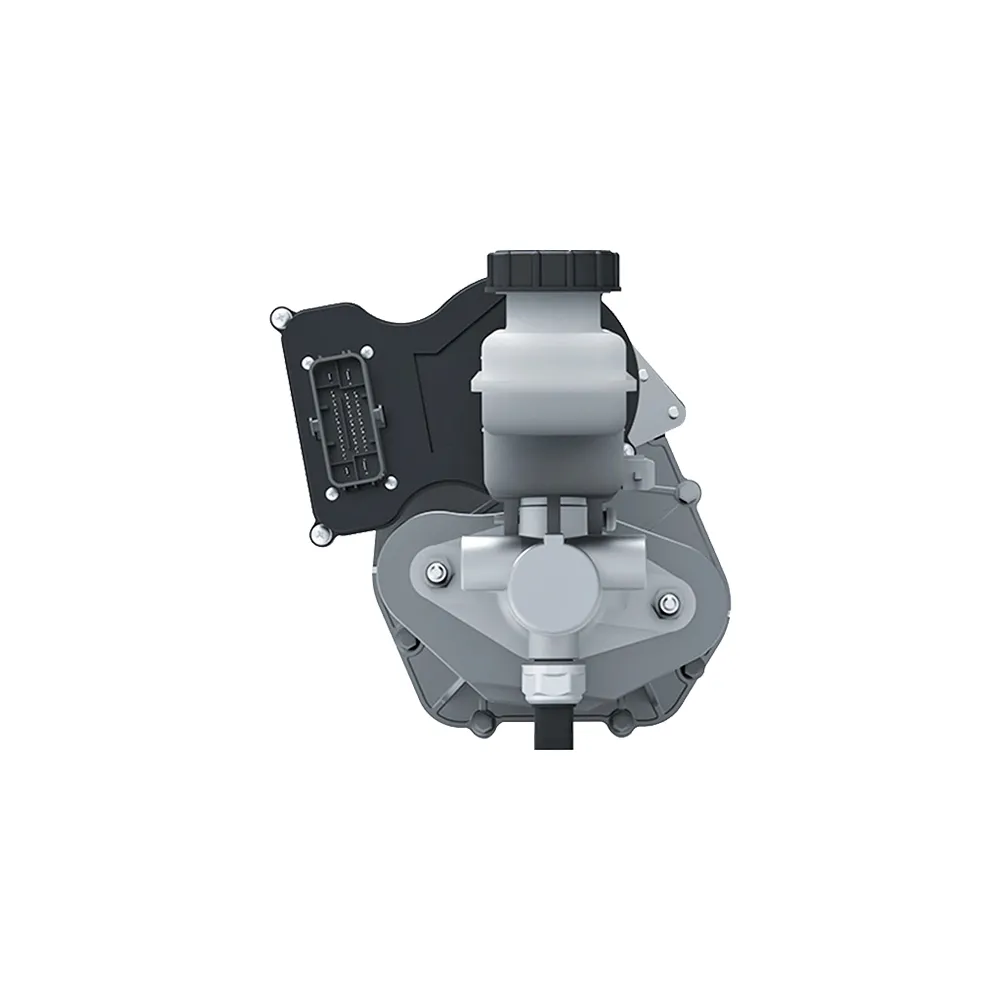

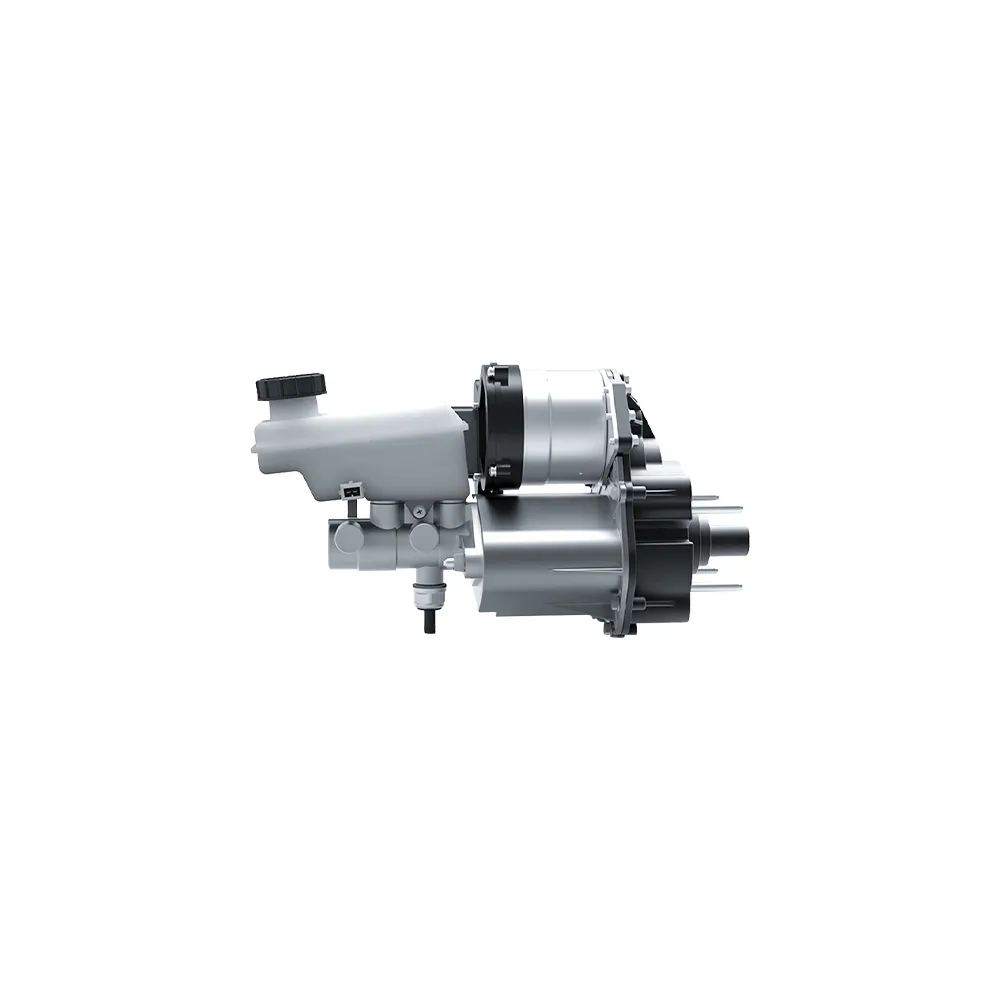

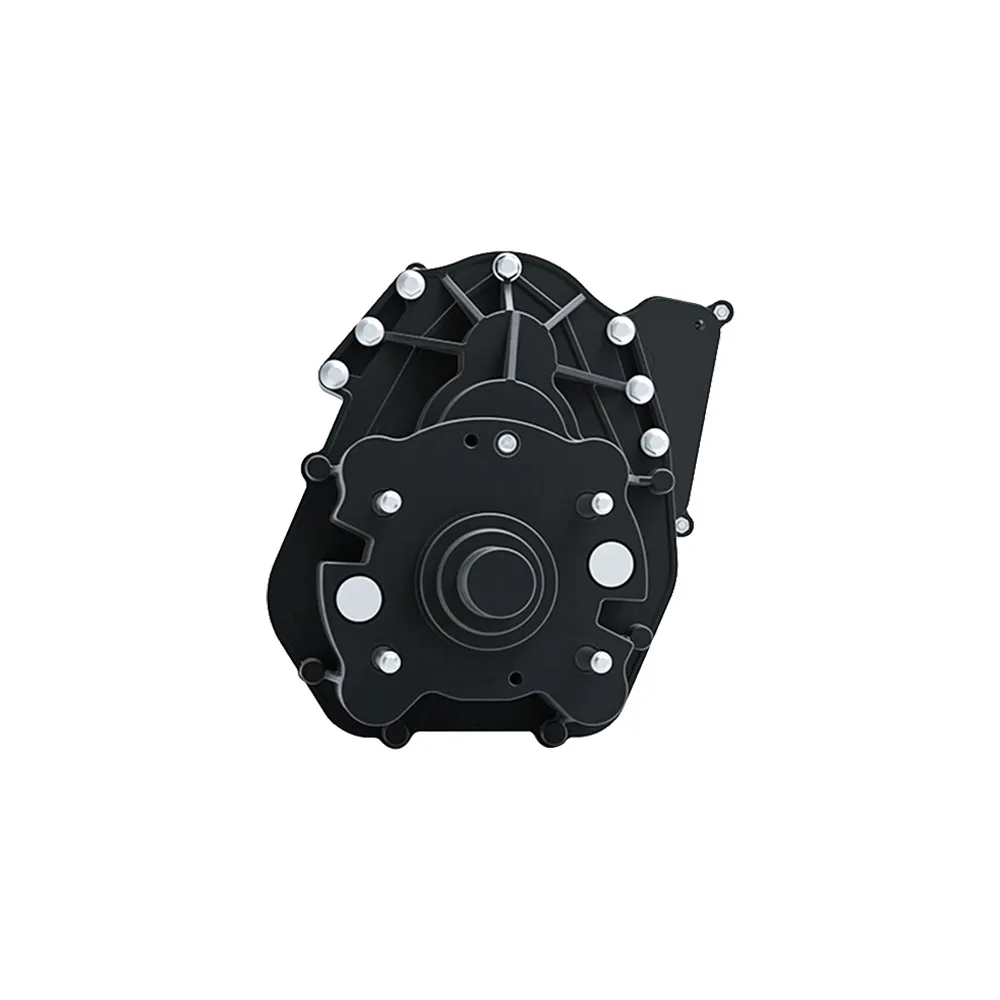

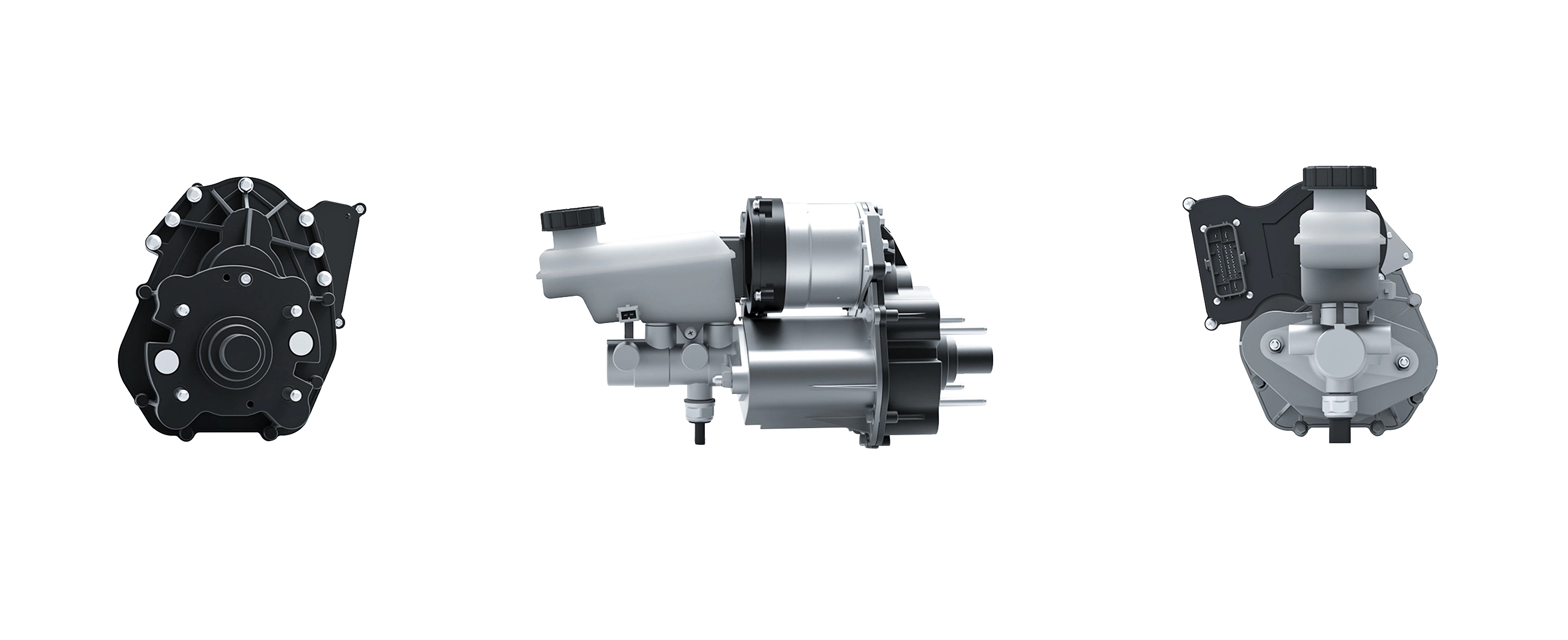

Brake-by-Wire System

Inquiry Now +

Parameter Table

Performance parameters
Serial numberProject NameUnitParameter
1 Product Assembly Dimensionsmm297*219*142
2 Assembly Weightkg6.1
3 Motor Rated PowerW450
4 Motor Maximum CurrentA50
5 Rated VoltageV12
6 Main Cylinder Diametermm25.4
7 Maximum PressureMPa12
8 Brake Pressure Control AccuracyMPa0.2
9 Brake Response Delay Timems<100
10 0-Maximum Brake Pressure Timems<300
11 DBS Brake System Protection Rating
IP67 (excluding connectors)
12 Operating Temperature℃-40~105

DBS5001
