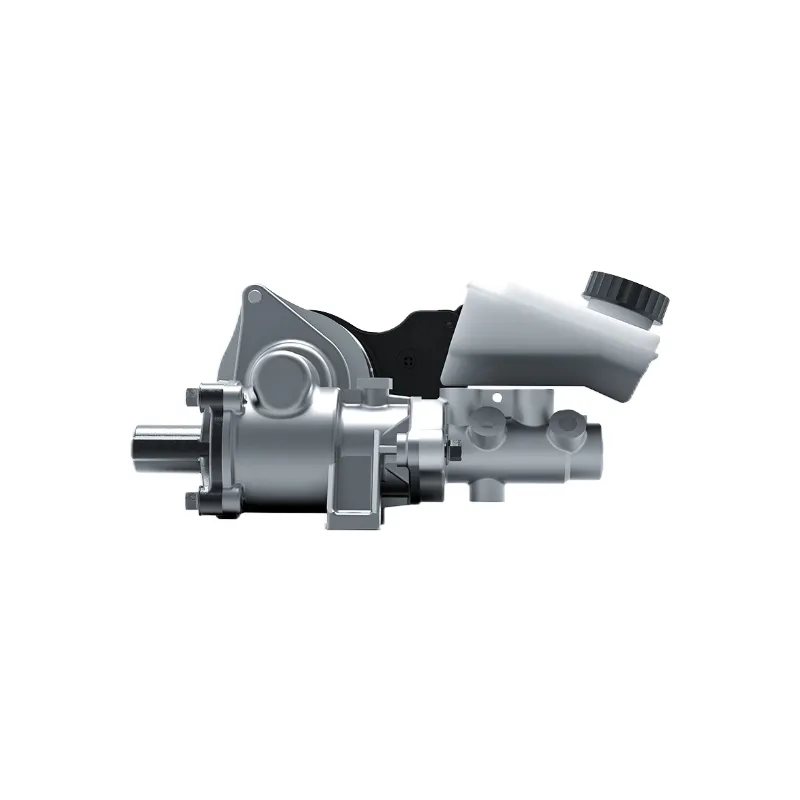

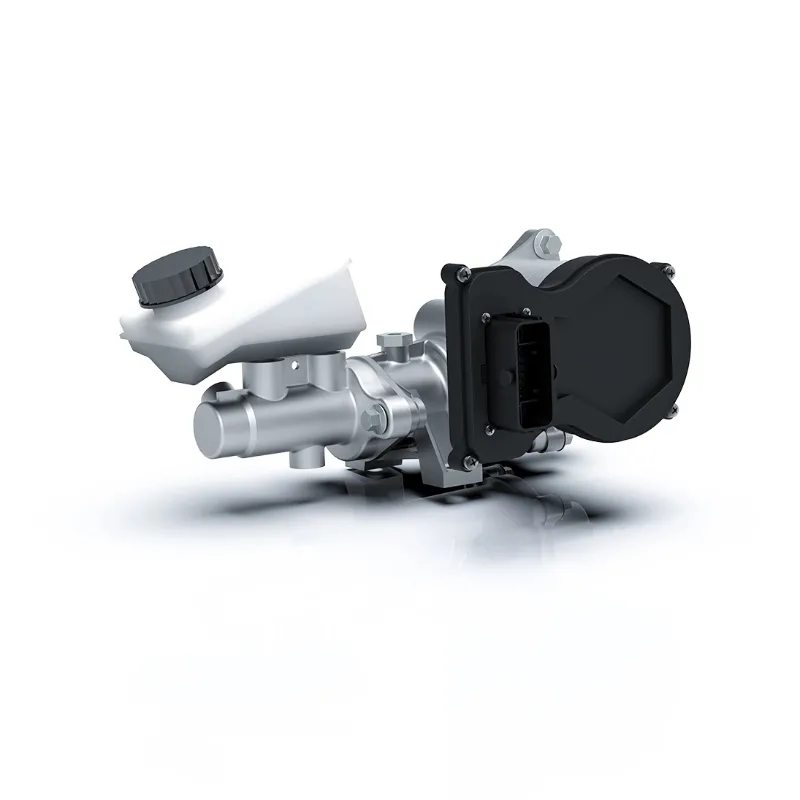

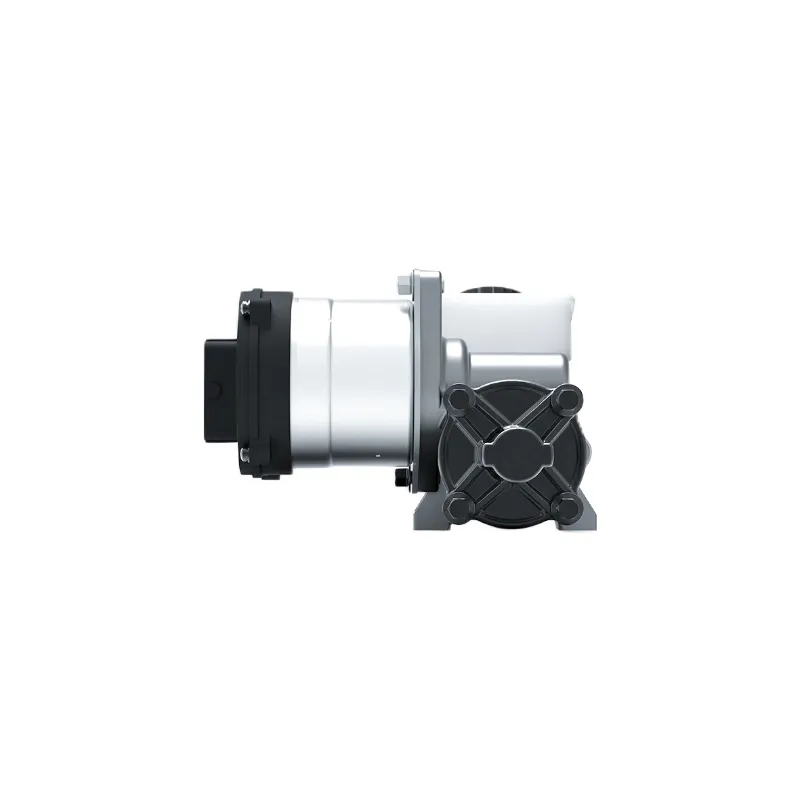

Electric Brake-by-Wire

Inquiry Now +

Parameter Table

Performance parameters
Serial numberProject Nameunitparameters
1 Product Assembly Dimensionsmm297*219*142
3 Assembly Weightkg4.6
5 Motor Rated PowerW450
6 Motor Maximum CurrentA50
7 Rated VoltageV12
8 Main Cylinder Diametermm20.64
9 Main Cylinder Maximum PressureMPa10
12 Brake Pressure Control AccuracyMPa0.2
Electronic Hydraulic Brake System Product Specification Sheet
13 Brake response delay timems<100
14 0-maximum brake pressure timems<200
15 Adaptive loadKg1500
16 DBS brake system protection rating
IP67 (excluding connectors)
17 Operating temperature℃-40~105


dbs3001
