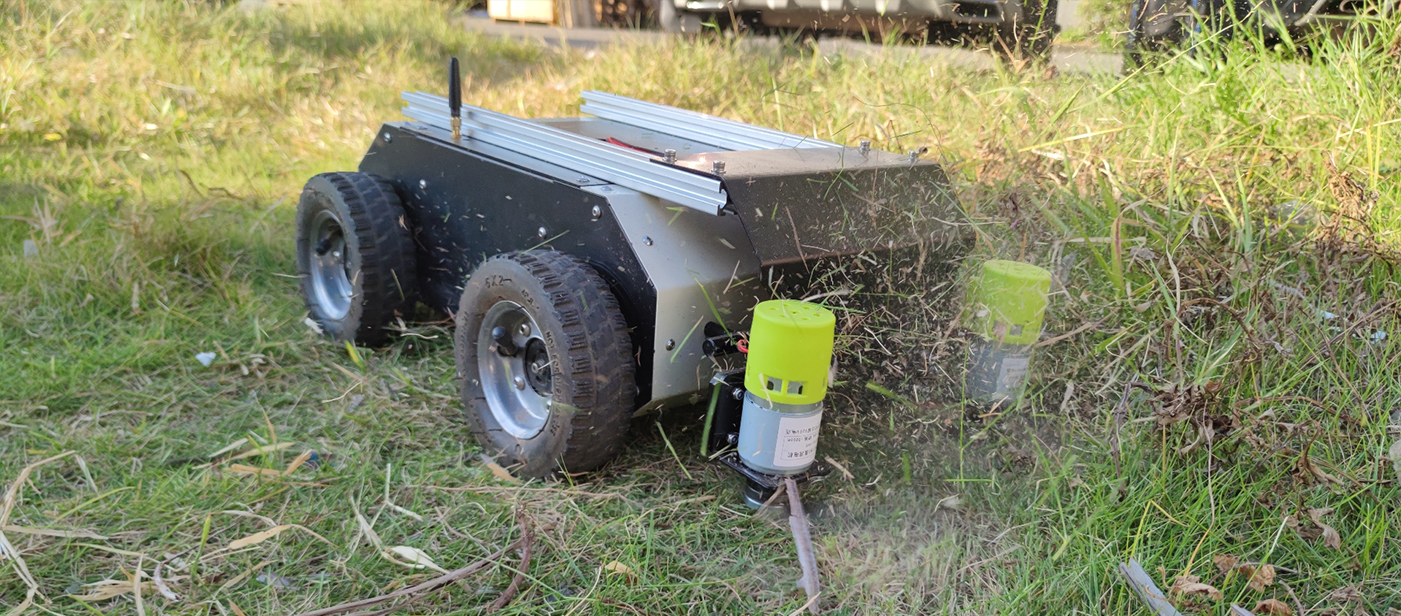

Lawn Mower Robot Chassis

Description

A robotic lawn mower (also known as a smart mower or automatic mower) is an intelligent device capable of autonomously completing lawn mowing tasks. It integrates advanced navigation systems (such as GPS-RTK, AI vision, or boundary line positioning) to autonomously plan paths and avoid obstacles, making it suitable for scenarios like home gardens, parks, or golf courses.

Traditional mowers (such as push mowers, gas-powered mowers, or riding mowers) rely on manual operation and are suitable for large areas, complex terrain, or situations requiring deep cutting. They produce high noise levels, emit high emissions, and are labor-intensive to operate. In contrast, robotic lawn mowers achieve unattended daily trimming through autonomous navigation, boundary wires, or intelligent vision systems. They enable frequent, light mowing that yields a smoother, more aesthetically pleasing lawn while returning grass clippings as natural fertilizer. Operating quietly with zero emissions and high safety, they are particularly suited for residential yards ranging from 50 to 500 square meters.

Chassis for a Robotic Lawnmower

Robotic lawn mower chassis primarily come in two types: four-wheel drive chassis and tracked chassis. When selecting a chassis, factors such as lawn area, slope, and budget should be comprehensively considered.

Aspect	Four-Wheel Drive Chassis	Tracked Chassi
Structure	Four independent wheels, often with differential or all-wheel drive (AWD).	Continuous tracks, similar to tank design, distributing weight evenly.
Terrain Adaptability	Suitable for moderate slopes (15°-45°) and relatively flat lawns. May slip on steep or wet terrain.	Excellent for steep slopes (>45°) and rough terrains (e.g., muddy or rocky areas).
Speed	Faster, typically 0.5-1 m/s, ideal for quick coverage of medium-sized lawns (500-2000㎡).	Slower, usually <0.5 m/s, prioritizing stability over speed.
Efficiency	High efficiency for home and mid-sized commercial lawns due to faster movement	Lower efficiency due to slow speed, better for precision in complex environments.
Maneuverability	High, with smaller turning radius, suitable for narrow or intricate spaces.	Lower, larger turning radius, less suited for tight spaces.

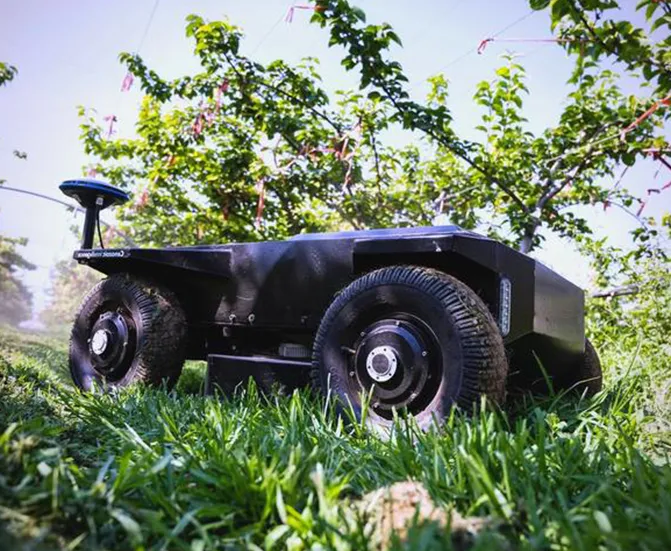

Four-Wheel Drive Chassis

The four-wheel drive (4WD) chassis is the most common type in robotic lawn mowers, particularly suited for residential and medium-sized lawns (e.g., 500-2000 m²). Typically equipped with four independent motors, each wheel can be driven separately, supporting differential steering. This allows the robot to turn flexibly and avoid obstacles, making it particularly suitable for uneven terrain with slopes between 15° and 45°, such as hilly gardens or sloped parks.

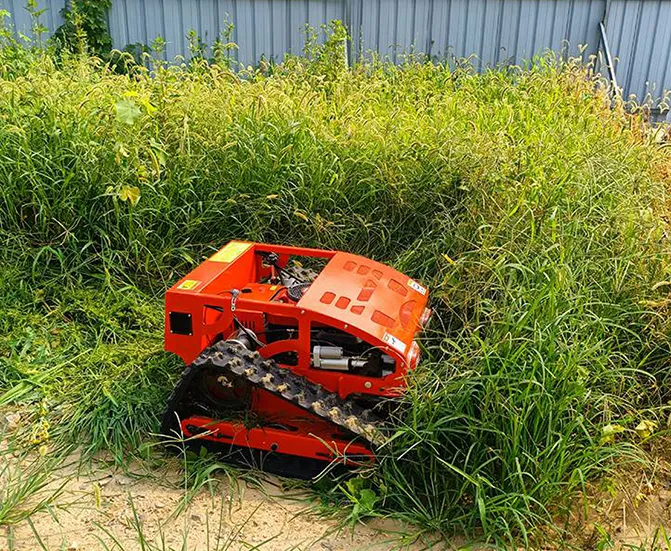

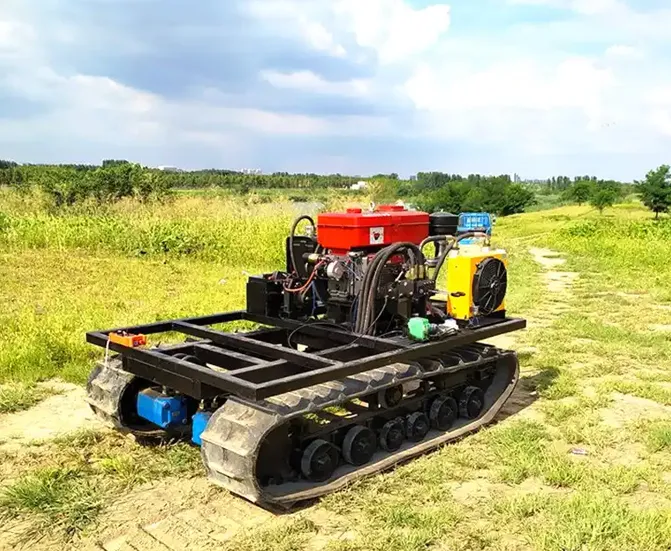

Tracked Lawn Mower Chassis

Tracked chassis are less common in robotic mowers, primarily used in professional or complex terrain applications like agricultural fields, steep-sloped parks, or golf courses (grades >45°). It replaces wheels with continuous tracks, providing evenly distributed ground pressure and exceptional traction. This enables stable movement across slippery, uneven, or soft surfaces like mud after rain or gravel slopes.

Accessories

Structural Support and Load-Bearing Capacity

The chassis serves as the core framework, supporting the mower's primary components including the motor, battery, cutting deck, sensors, and control modules.

Constructed from high-strength materials, it ensures balanced load distribution to withstand prolonged outdoor operation.

Its modular design facilitates component installation and maintenance, adapting to lawn sizes ranging from small (under 600 m²) to large (over 5000 m²).

Agile Mobility and Terrain Adaptability

Integrated drive system (typically brushless motor + differential steering or four-wheel drive) delivers high torque output, ensuring stable movement on slopes of 20°-35° (up to 70% for premium models) and uneven terrain.

Equipped with high-torque hub motors or tracks, it offers 5-10cm obstacle clearance capability to navigate tree roots, small rocks, and other obstacles.

The floating chassis design, combined with a suspension-mounted cutting deck, adapts to terrain undulations while maintaining consistent cutting height (adjustable range: 20-60mm).

Smart Navigation and Obstacle Avoidance

Sensors integrated along the chassis edges (ultrasonic, infrared, collision sensors) enable 360° obstacle detection, avoiding people, pets, or objects with a typical detection range of 0.2-1m.

Supports navigation technologies such as GPS/RTK positioning or visual SLAM (select premium models), enabling random collision-based or planned path mowing with coverage reaching 95%-98%.

Built-in edge computing module processes sensor data in real time, ensuring precise path planning and dynamic adjustments.

Our company specializes in the R&D, production, and sales of robotic lawn mower chassis and related accessories, dedicated to providing high-performance, modular solutions for smart landscaping equipment manufacturers, DIY enthusiasts, and commercial users. Our product line centers on the chassis, integrating key components such as hub motors, controllers, batteries, and sensors to ensure efficient, stable, and intelligent mowing operations in complex outdoor environments.

Hub motors form the core of the chassis drive system, enabling differential steering or four-wheel drive to navigate wetlands or uneven terrain. Combined with controllers, they precisely adjust speed and torque to handle complex landscapes.

The controller serves as the chassis' “brain,” managing motor drive, sensor data, and path planning.

The battery serves as the chassis' power source. We provide lithium-ion battery packs supporting interchangeability and extended runtime.

Sensors elevate the chassis' intelligence. We offer diverse sensor kits—ultrasonic, infrared, vision, and positioning sensors—enabling precise obstacle avoidance (trees, pets, pedestrians). Tilt/collision sensors ensure safe shutdown.
