Palletizing Robot

Description

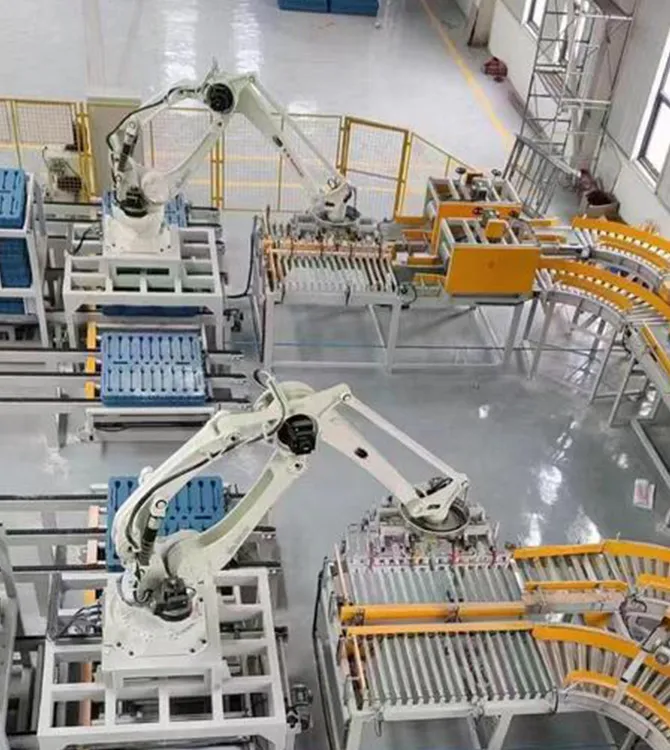

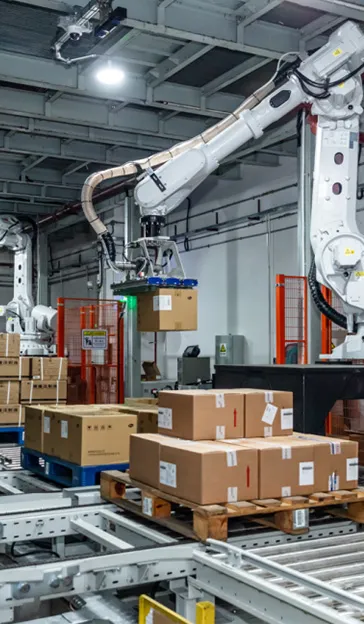

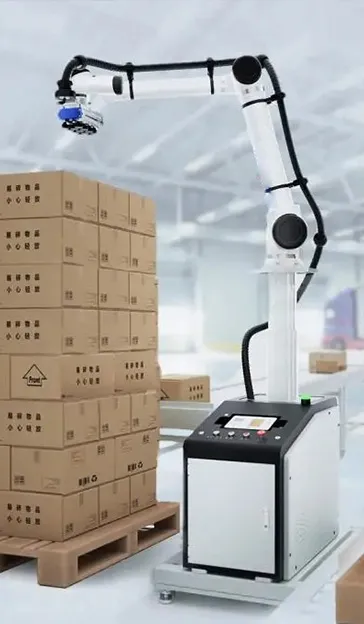

A palletizing robot is an industrial robot specifically designed for automated stacking of goods. It is primarily used to replace manual labor in efficiently stacking or de-palletizing items such as boxes, bags, bottles, and cans—either arranging them into neat stacks according to predefined rules (e.g., orderly rows, layered stacking) or dismantling existing stacks.

Equipped with a high-precision robotic arm and an intelligent control system (such as AI vision guidance and multi-axis coordination), the robot is capable of continuous 24/7 operation. It significantly improves logistics efficiency (achieving speeds up to 3–5 times that of manual work) while also reducing physical strain and the risk of workplace injuries. This makes it especially suitable for handling heavy loads, high-temperature environments or high clean environments operation.

The palletizing robot solves common issues with traditional manual stacking, including low efficiency, high labor costs, and error-proneness. It supports rapid switching between stacking modes to accommodate various item shapes and sizes. It widely used in industries such as fast-moving consumer goods (food, daily chemicals), chemical and building materials (fertilizers, cement), pharmaceuticals, cold-chain warehousing, and e-commerce logistics. these robots are commonly used in production line packaging, warehouse organization, and container loading scenarios, helping enterprises achieve intelligent transformation, cost reduction, and productivity improvement.

Palletizing Robot

Core Technology Support

These advanced technologies collectively address key challenges faced by palletizing robots in high-precision positioning, adaptation to complex environments, compatibility with multiple product types, and large-scale collaborative operations. Make it shows significant advantages in efficiency (replacing 6–10 workers), safety (zero risk of work-related injuries), and cost-effectiveness (investment payback period <3 years).

1. Multi-Axis Articulated / SCARA Robotic Arm: Available in 4-axis (horizontal movement + lifting + gripper rotation) or 6-axis (full degrees of freedom) configurations, enabling flexible motion for picking, rotating, and stacking goods.

2. Rigid Materials and Lightweight Design: Utilizes carbon fiber, aluminum alloys, and other lightweight but strong materials to reduce self-weight while enhancing load capacity (5kg~120kg) and operational speed (up to 2000mm/s).

3. Servo Motors and High-Precision Reducers: Ensure accurate positioning of the robotic arm (±0.1mm~±1mm) and fast dynamic response, essential for high-speed and high-precision operations.

4. 3D Vision Guidance: Combines laser scanners, depth cameras (e.g., Intel RealSense), or industrial cameras with AI algorithms to accurately identify the shape, position, and orientation of objects, enabling adaptive handling of irregular or randomly placed items.

5. Force/Tactile Sensors: Integrated pressure and torque sensors in the end effector allow for adaptive gripping force control (such as gentle handling for fragile items like glass or food products.

6. Environmental Perception Technologies: Equipped with photoelectric sensors and ultrasonic sensors for obstacle avoidance and detection of stack height, ensuring safe and precise stacking operations in dynamic environments.

Features

Continuous Operation Capability

Capable of 24/7 uninterrupted operation, avoiding efficiency drops caused by human fatigue. A single unit efficiency can be 3–5 times of manual labor (such as stacking 600–1,500 items per hour).

3D Vision Guidance

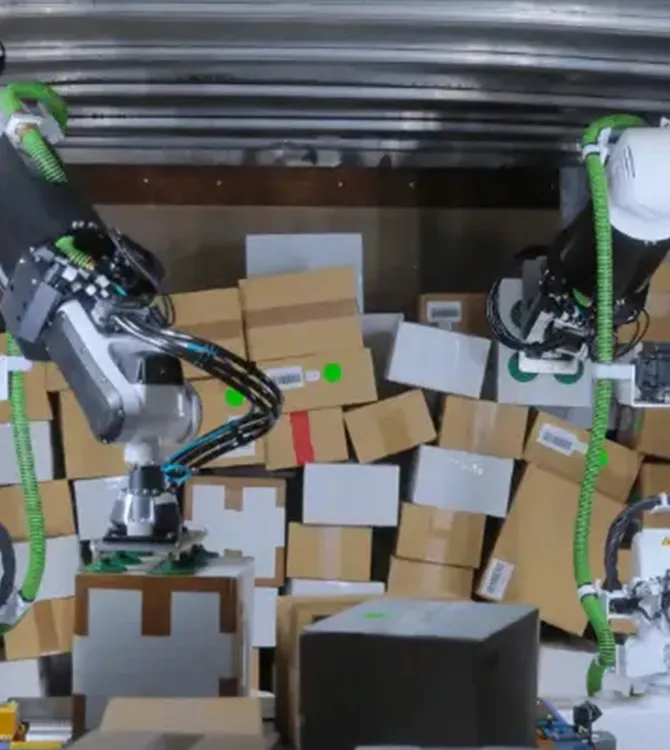

Uses depth cameras or laser scanners to recognize the position and orientation of goods in real time, enabling unordered grabbing from a pile(such as grabbing randomly stacked cartons).

High Positioning Accuracy

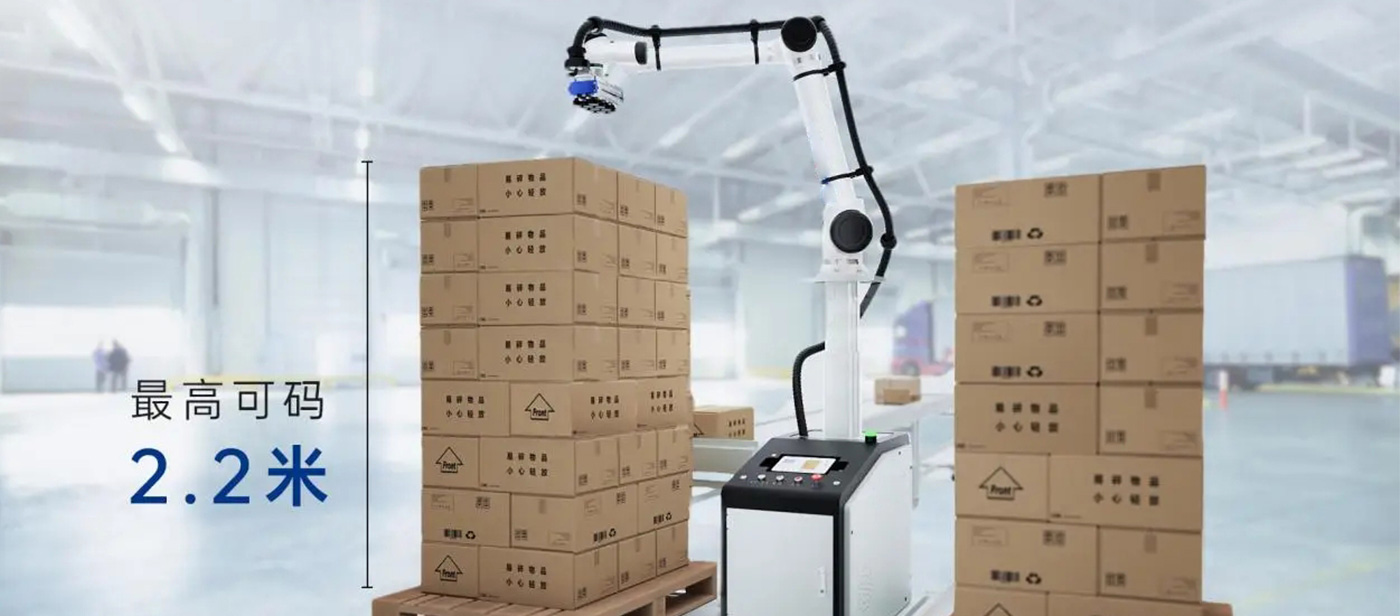

Repeatability positioning accuracy ranges from ±0.1mm to ±1mm (depending on mechanical structure and control system). Precise programming ensures neatly stacked and dimensionally uniform.

Dynamic Adjustment Capability

Continuously monitors stacking height and stability in real time, automatically adjusting gripper angles or stacking paths.

Multi-Product Compatibility

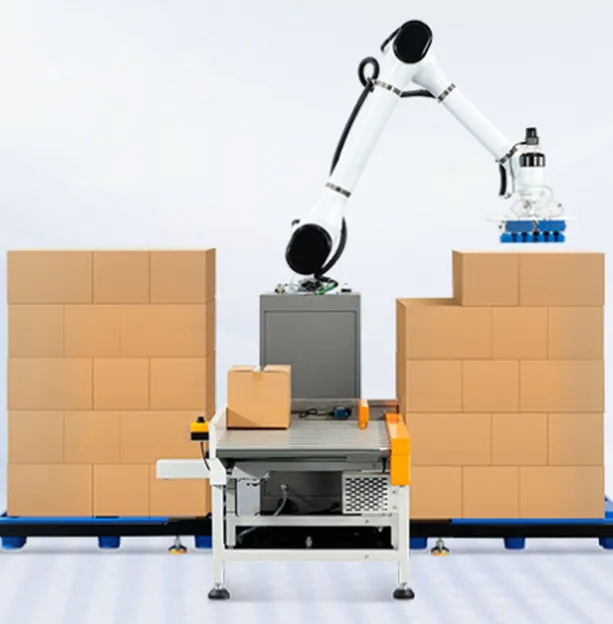

Supports rapid switching between different cargo types and stacking modes. By changing end-effectors (such as pneumatic grippers, vacuum suction cups, or fork-type grippers), the robot can handle boxes, bags, bottles, cans, and irregularly shaped items.

Strong Environmental Adaptability

Support operations in complex environments such as high-temperature (e.g.,metallurgy workshops), low-temperature (e.g.,cold storage facilities), and high-humidity or dusty areas (e.g., chemical plants).

Multiple Safety Mechanisms

Integrated with emergency stop buttons, safety fences, light curtains, and collision detection systems to prevent accidents and ensure safe interaction with humans and surrounding environments.

Working Process

Positioning: The vision system identifies the location and orientation of the target object.

Picking: The robotic arm moves to the designated position and drives the end effector to securely grasp the object.

Stacking: The robot places the object onto a pallet or designated area following a pre-set path.

Monitoring & Adjustment: Sensors continuously monitor stacking height and stability. If necessary, the system automatically adjusts parameters such as gripper angle or placement position to ensure stacking quality and safety.

Industry Applications

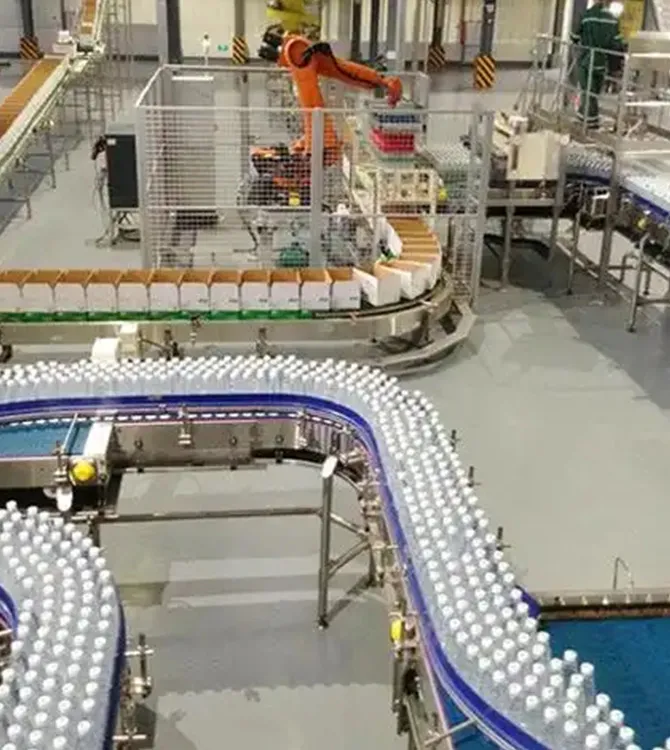

Fast-Moving Consumer Goods (FMCG) Industry: Food and Beverage Production Line Palletizing Challenges

Low Manual Efficiency:
Beverage production lines can output 20–30 boxes per minute, manual palletizing speed is difficult to match.

High Hygiene Requirements:
Food packaging must avoid contamination, traditional manual operations have risks.

Inconsistent Pallet Patterns:
Manually stacked goods are prone to tilting, which affects transport stability.

Adaptive Technologies:
IP67-rated Grippers support washing and disinfection, meeting food-grade hygiene standards.

Case: Coca-Cola Production Line:
Each palletizing robot replaced 8 workers, achieving a stacking speed of 1,200 boxes per hour , with 99.5% uniformity in pallet patterns, significantly improving efficiency and consistency while ensuring hygiene compliance.

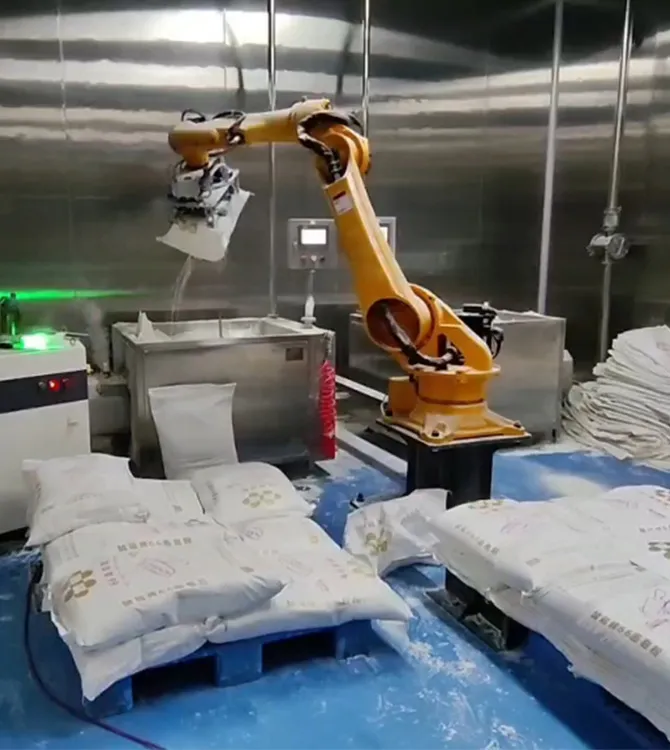

Chemical and Building Materials Industry: Palletizing of Bagged Fertilizer / Cement

Dangerous heavy Lifting :
Single bags of fertilizer/cement weigh 50 kg, and manual stacking can easily cause work-related injuries.

Poor Stack Stability:
Bagged materials are easy to slipping, leading to instability during transportation. Additionally, dust accumulation poses an explosion risk in enclosed environments.

Adaptive Technologies:
Explosion-Proof Design Meets ATEX standards for use in explosive dust environments, ensuring safe operation in hazardous industrial settings.

Case: Sinopec Fertilizer Plant:
Each palletizing robot replaced 10 workers, annual labor cost savings of approximately 800,000 RMB , and system failure rate less than 0.1%, significantly improving both safety and operational efficiency.
Pharmaceutical Industry: High-Cleanliness Palletizing of Medicine Packaging Boxes

High Cleanliness Requirements:
Medicine packaging must be handled in dust-free workshop, frequent human entry increases the risk of contamination.

Strong Traceability Needs:
The batch information of each stack of medicines needs to be recorded, and traditional manual work is easy to errors.

Adaptive Technologies:
Food-Grade Silicone Grippers prevent surface damage of packaging, ensuring compliance with high-cleanliness standards.

Case: Smart Workshop of a Pharmaceutical Enterprise:
Achieved fully automated operation. The environment meets ISO Class 7 cleanroom standards , and the batch traceability accuracy reaches 100% , ensuring product safety and regulatory compliance.
Cold Chain Warehousing Industry: Palletizing of Frozen Food Trays

Low-Temperature Environment Limitations:
In cold storage at around -18°C, manual operations are not only inefficient but also pose a risk of frostbite to workers.

Product Freezing and Sticking:
Moisture causes cartons to stick together, making them difficult to separate and easily torn when handled by traditional robotic arms.

Adaptive Technologies:
Special coating applied to the surface of the Grippers prevents frost and ice buildup, ensuring stable and damage-free handling of frozen goods.

Case:
At a Cold Chain Logistics Center, Each palletizing robot operates continuously for 24 hours, improving operational efficiency in the cold storage environment by 3 times , while reducing manual labor by 70% , significantly enhancing both productivity and working safety.

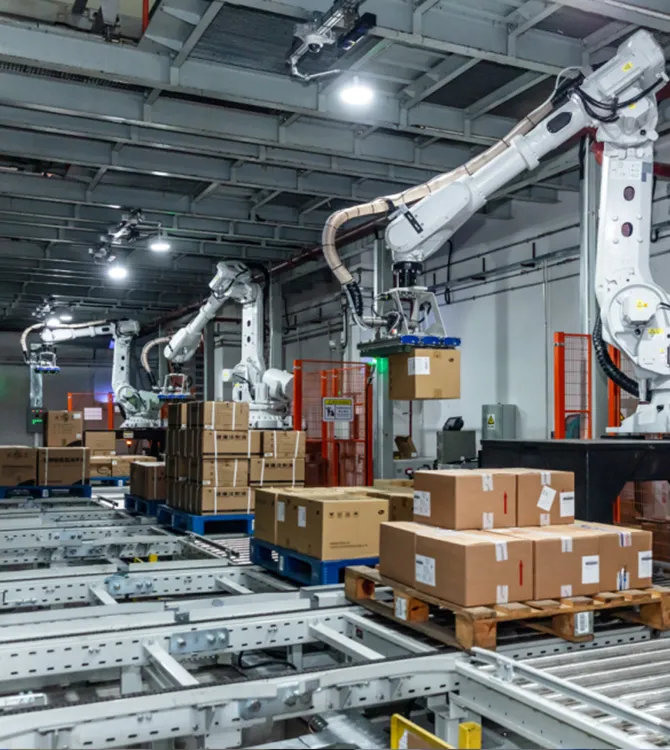

E-Commerce Logistics Industry: Mixed Palletizing of Express Parcels

Diverse Package Sizes:
each pallet often needs to accommodate hundreds of different parcel dimensions, making standardization difficult.

Sorting Efficiency Bottleneck:
Traditional manual sorting and palletizing cannot meet the demands of "same-day delivery" due to low speed and high error rates.

Adaptive Technologies:
AI Algorithm for Dynamic Pallet Pattern Planning-Intelligent algorithms analyze package size and shape in real time, enabling efficient mixed stacking of irregularly shaped items while ensuring stability and space optimization.

Case:
JD.com Smart Warehouse Center:
Each palletizing robot achieves a throughput of 1,500 parcels per hour , mixed palletizing accuracy rate of 99.9% . The system also improves warehouse space utilization by 20% , significantly enhancing logistics efficiency and automation levels.
Automotive Manufacturing Industry: Automated fill for Auto Parts

Low Space Utilization:
Manual stacking of automotive components (e.g., seats, tires) often leads to inefficient use of container space, increasing transportation costs.

Low Loading/Unloading Efficiency:
Manual handling requires frequent posture adjustments, prolonging operation time and increasing the risk of part damage.

Adaptive Technologies:
Force-Control System ensures gentle handling of delicate surfaces—such as painted or coated auto parts—to prevent scratches or deformation during gripping and placement.

Case:
In Volkswagen Auto Parts Warehouse, the adoption of palletizing robots increased container loading efficiency to 95% , while reducing loading and unloading time by 40% , significantly improving logistics performance and part integrity.

Accessories

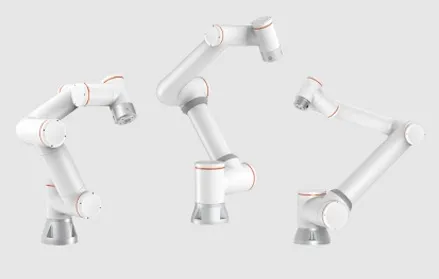

Robotic Arm

Typically a 4-axis (SCARA) or 6-axis articulated structure, responsible for picking, transporting, and stacking goods with high flexibility and precision.
